A well-executed RV camera installation example is less about adding another screen to the dash and more about removing uncertainty from every maneuver. On a 32-foot Class C, fifth wheel, or luxury motorcoach, a properly placed rear camera can turn a tight fuel stop, uneven campsite, or crowded storage lane into a controlled, visible move. The difference comes down to camera placement, clean power, protected wiring, and a display you will actually use.
This practical example follows a premium rear-view camera system with an optional pair of side cameras. It is designed for RV owners who want dependable hardware, a factory-finished appearance, and a setup that holds up to highway miles, rain, vibration, and changing light.
An RV Camera Installation Example for a Rear-View System

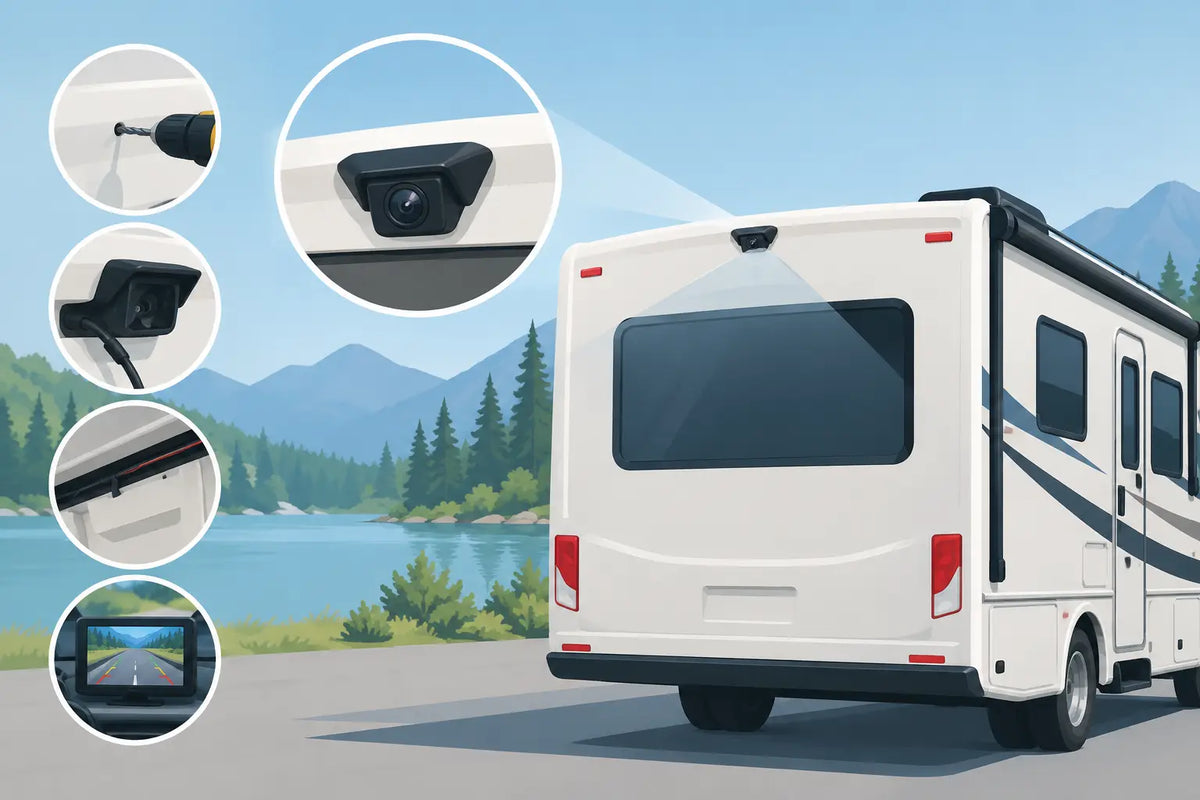

Picture a Class A motorhome with a 12-volt rear camera, a dashboard monitor, and a reverse trigger connection. The camera is mounted high and centered above the rear window or near the roofline, aimed slightly downward so the driver can see the bumper, the space immediately behind the coach, and approaching traffic in the distance.
Mounting high is usually the right choice for a long RV because it creates a broad field of view and keeps the lens away from road spray. However, a camera mounted too high can make a hitch, bike rack, or rear bumper difficult to judge. Before drilling, hold the camera in position with painter's tape or have a second person support it while you view the monitor. A few minutes spent setting the angle can prevent a permanent compromise.
For this installation, the camera cable enters the coach through the rear wall directly behind the mount. The entry point is fitted with a properly sized rubber grommet, then sealed with RV-grade exterior sealant. This is a small detail with a large payoff: a bare cable through a drilled hole can eventually chafe, wick moisture, and create an expensive leak path.
Inside the rear cap, the cable is secured every 12 to 18 inches and routed along an existing wire chase where possible. Avoid loose runs across insulation, sharp aluminum edges, slide mechanisms, exhaust components, and areas that may trap water. If the coach has a prewired camera harness, inspect the connector and wire labels before committing to it. Prewire can save substantial time, but it is not always connected at both ends or sized for every camera system.
Choose Continuous Power or Reverse-Only Operation
The power strategy determines how useful the camera will be. A rear camera connected only to the reverse light circuit activates when the transmission is in reverse. That is simple and appropriate for drivers who only need parking assistance.
Many RV owners prefer continuous power from a switched 12-volt source. In this configuration, the rear camera can remain visible while driving, offering a live view of a tow vehicle, cargo carrier, bicycles, or traffic directly behind the coach. The monitor can still receive a reverse trigger wire, allowing it to automatically switch to the rear camera when backing up.
For the example build, the camera receives switched accessory power from an ignition-controlled circuit, protected by an inline fuse placed close to the power source. The reverse lamp wire is used only as a trigger for the monitor. This keeps the rear image available on the road without relying on the reverse circuit as the camera's sole source of power.
There is a trade-off. Continuous operation creates a modest but ongoing electrical draw and adds another live component to the driving environment. Choose a monitor with an easy screen-off control and confirm that the selected circuit shuts down when the ignition is off. Never assume a wire is switched based on color alone. Test it with a multimeter.
What a Clean Installation Requires
Quality camera hardware deserves equally capable installation materials. Gather these essentials before opening panels or drilling into the RV:
- A digital multimeter for identifying power, ground, and trigger circuits
- An inline fuse holder and correctly sized fuse for the camera system
- Heat-shrink butt connectors or solder-and-seal connectors rated for automotive use
- Split loom, fabric harness tape, and zip ties for abrasion protection and cable management
- Rubber grommets, exterior-grade sealant, and a step bit for protected wall entry
Route the Video Cable With Service in Mind
A polished installation looks organized today and remains serviceable years from now. In this example, the video cable travels from the rear cap to the front cockpit through an overhead cabinet chase. It is separated from high-current 120-volt AC wiring whenever possible. Crossing AC wiring at a right angle is preferable to running parallel beside it for long distances, as this can reduce the chance of electrical noise on an analog video signal.
Cabinets, trim panels, and ceiling channels make excellent routes when they are accessible without dismantling half the RV. Leave a small service loop near the camera and behind the monitor. The loop should be tidy, secured, and long enough to allow a future connector repair or device replacement.
On a towable RV, routing becomes more specialized. A camera at the rear of a travel trailer or fifth wheel needs a connection path that accommodates the trailer's movement relative to the tow vehicle. A dedicated trailer camera harness or weatherproof quick-connect is often a better choice than improvising with an exposed cable. The system must also be compatible with the tow vehicle monitor or a standalone display.
Add Side Cameras Only Where They Improve Visibility
Side cameras are valuable on wide motorhomes, especially when mirrors leave a blind spot alongside the rear quarters. In this example, compact side cameras are mounted beneath the mirror arms or near the upper side marker lights, pointed rearward along each side of the coach. They activate with the corresponding turn signal, then the monitor switches to the left or right camera input.
This setup is excellent for lane changes and merging, but it should complement mirrors, not replace them. A camera's perspective can distort distance, and rain or low sun can temporarily reduce clarity. Select cameras with appropriate weather resistance, night vision performance, and a viewing angle that does not create excessive fisheye distortion.
If the RV is primarily used in open campgrounds and highway travel, a rear camera alone may deliver the best value. If it regularly navigates city streets, crowded event lots, storage facilities, or narrow marina access roads, side cameras can justify the added wiring and installation time.
Install the Monitor for Useful, Not Distracting, Viewing
The monitor belongs within natural sightline range without blocking gauges, windshield visibility, climate controls, or factory infotainment screens. A dash-mounted display works well in many older RVs. Newer coaches may support integration through a compatible head unit, but compatibility, resolution, and input switching should be confirmed before purchase.
For this build, a high-resolution monitor is mounted low on the dash using a secure adjustable bracket. The driver can glance at it without looking away from the road for long, while the screen stays out of the primary windshield view. The power lead is hidden behind the dash, and the video cables are labeled at the monitor. Labels may feel unnecessary on installation day, but they make future troubleshooting far faster.
Avoid relying on adhesive-only mounting for a large monitor in a heavy RV. Heat, vibration, and textured dash surfaces can weaken adhesive over time. A quality bracket with the correct mounting hardware is the more refined, dependable choice.
Test Before You Seal Every Panel
Power up the system before reinstalling trim, applying final sealant, or cutting excess cable ties. Check the rear image in daylight, at dusk, and with the RV's lights on. Confirm the image orientation is correct, the field of view includes the bumper, and the camera automatically displays when reverse is selected.
Then test for the issues that commonly reveal themselves only after wiring: flickering video with the engine running, poor night image quality, monitor resets, signal loss, or a reverse trigger that activates inconsistently. If the camera picture has interference, inspect grounds first, then check cable routing near AC wiring, ignition components, or high-current chargers and inverters.
Finish by applying final exterior sealant around the camera mount and cable entry. Use enough to create a continuous weather barrier, but not so much that future camera service becomes a destructive job. A neat bead is the premium standard.
A camera system earns its place when it makes every departure, arrival, and lane change feel more deliberate. Choose proven components, protect the wiring like it belongs in the coach, and give the display a purpose-built home. For owners building an RV around confidence and capability, that attention to detail elevates every mile.
