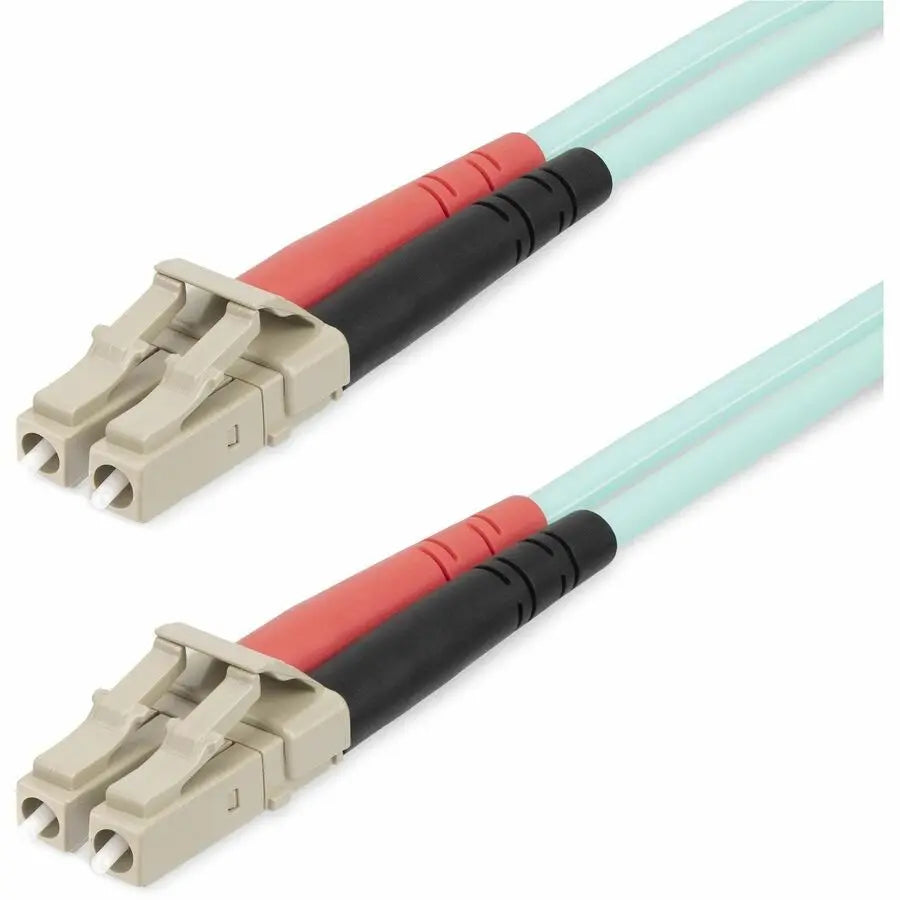

StarTech.com 20m LC/UPC to LC/UPC OM4 Multimode Fiber Optic Patch Cable, 50/125μm, 100Gbps Support

StarTech 20m (65ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

The StarTech.com 20-meter LC/UPC to LC/UPC OM4 multimode fiber optic patch cable provides a high-performance solution for reliable connectivity in high-speed data networks. Engineered with laser-optimized multimode fiber (LOMMF), this cable supports data transmission speeds up to 100Gbps, making it ideal for demanding enterprise and data center applications. The OM4 fiber core, with 50/125 micron specifications, ensures low attenuation and excellent signal integrity across long distances, while supporting legacy and future-proof network environments.
Designed for durability and performance, the cable features LC/UPC connectors with polished ends that significantly improve return loss over traditional PC polishing techniques. The robust molded strain reliefs protect the connectors from wear and bending stresses, enhancing longevity. The inclusion of protective Aramid fibers increases tensile strength, ensuring the cable maintains performance even under frequent movement or tension. Each cable is individually tested to meet strict optical insertion loss standards, guaranteeing reliable operation and compatibility.
Built with safety and environmental considerations in mind, the cable has an LSZH (Low-Smoke Zero-Halogen) flame-retardant jacket, emitting minimal smoke and toxic fumes in case of fire. This makes it suitable for installation in enclosed or poorly ventilated spaces such as data centers, industrial environments, trains, and aircraft. The cable's backward compatibility with OM3 and support for various network speeds (1/10/40/100 Gbps) ensures versatile deployment in various high-density network configurations. The color-coded TX/RX connectors enable quick polarity identification, simplifying installation and maintenance. Certified under the EU RoHS and WEEE directives, this fiber optic patch cable combines safety, reliability, and high performance for critical network infrastructure.
Whether used with fiber switches, SANs, data servers, or transceivers like SFP+, QSFP+, and QSFP28, this cable offers a dependable connection with minimal signal loss. Its high-quality construction, environmental compliance, and lifetime warranty make it a trusted choice for professional network installations.

Features:

• OM4 laser-optimized multimode fiber supports up to 100Gbps Ethernet; immune to EMI; full-duplex zip-cord with color-coded TX/RX connectors for easy polarity identification and conversion to simplex cabling

• LC/UPC connectors with polished ends significantly improve return loss; molded connector strain reliefs protect against wear; Aramid fiber reinforcement for increased tensile strength

• Individually tested for signal integrity; LSZH jacket reduces smoke and toxic fumes; suitable for enclosed or poorly ventilated spaces; attenuation under 2.3dB/km meets industry standards

• Supports 1/10/40/100 Gbps networks; backward compatible with OM3; ideal for high-density applications like SANs, data servers, fiber switches, and transceivers including SFP+, QSFP+, and QSFP28

• 20 meters (65 feet) in length; Aqua color for OM4; compliant with EU RoHS and WEEE directives; lifetime warranty
