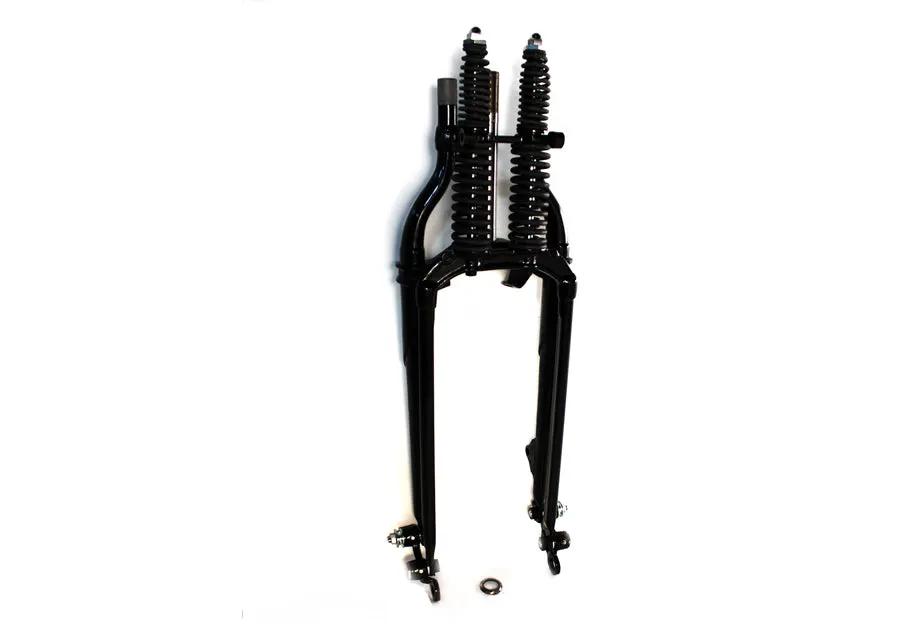

V-Twin 20 Inch Inline Spring Fork Assembly, Black, 2 Inch Over Stock Length

This V-Twin 20-inch inline spring fork assembly is 2 inches over stock length and finished in black, with chrome springs and rockers to mirror classic Harley-Davidson styling.

• Includes inner and outer springs for front and rear legs
• 1 inch inline stem with tapered bearings for ease of installation
• Offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum studs and bushings
• Spring rods with bushings
• Bottom lower bearing to center of axle measures 22 inches
• Some assembly may be required
• Replicas of stock units with electric welded and brazed construction; accepts all original-style components and accessories for a detailed replica look
• Top clamp neck races and cone nut are not included
• Measurement reference: length is 20 inches
• This fork assembly accepts a 3/4 inch axle for custom applications
• Tech Notes: Suggested to use #24-0150 springer fork cone nut
• Must order shock ride control axle assembly, top tree, and bearing kit as required
• Fitment: Harley Davidson EL 1936-1945, Harley Davidson FL 1941-1945, Harley Davidson UL 1937-1945

Unit features chrome springs and rockers front and rear leg in black. This 20 inch assembly is 2 inch over stock length.
Includes inner and outer springs front and rear legs 1 inch inline stem and offset outside mount rockers to utilize interchangeable wheel with lug bolt type drum and mechanical front brake drum studs and bushings spring rods with bushings. The bottom lower bearing to the center of the axle measures 22 inch. Some assembly may be required. These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look. Top clamp neck races and cone nut are not included. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line.
Measurements: Length: 20 inches
Tech Notes: Suggested to use #24-0150 springer fork cone nut. *NOTE: Must order shock ride control axle assembly top tree and bearing kit as required. How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for ease of installation. The distance from the 1st hole to the 3rd hole at the very bottom of the fork measures 3-7/8inch center to center.
Instructions: http://www.vtwinmfg.com/Instructions/49/49-2408.pdf

Fitment:
Harley Davidson EL 1936
Harley Davidson EL 1937
Harley Davidson EL 1938
Harley Davidson EL 1939
Harley Davidson EL 1940
Harley Davidson EL 1941
Harley Davidson EL 1942
Harley Davidson EL 1943
Harley Davidson EL 1944
Harley Davidson EL 1945
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson UL 1937
Harley Davidson UL 1938
Harley Davidson UL 1939
Harley Davidson UL 1940
Harley Davidson UL 1941
Harley Davidson UL 1942
Harley Davidson UL 1943
Harley Davidson UL 1944
Harley Davidson UL 1945
