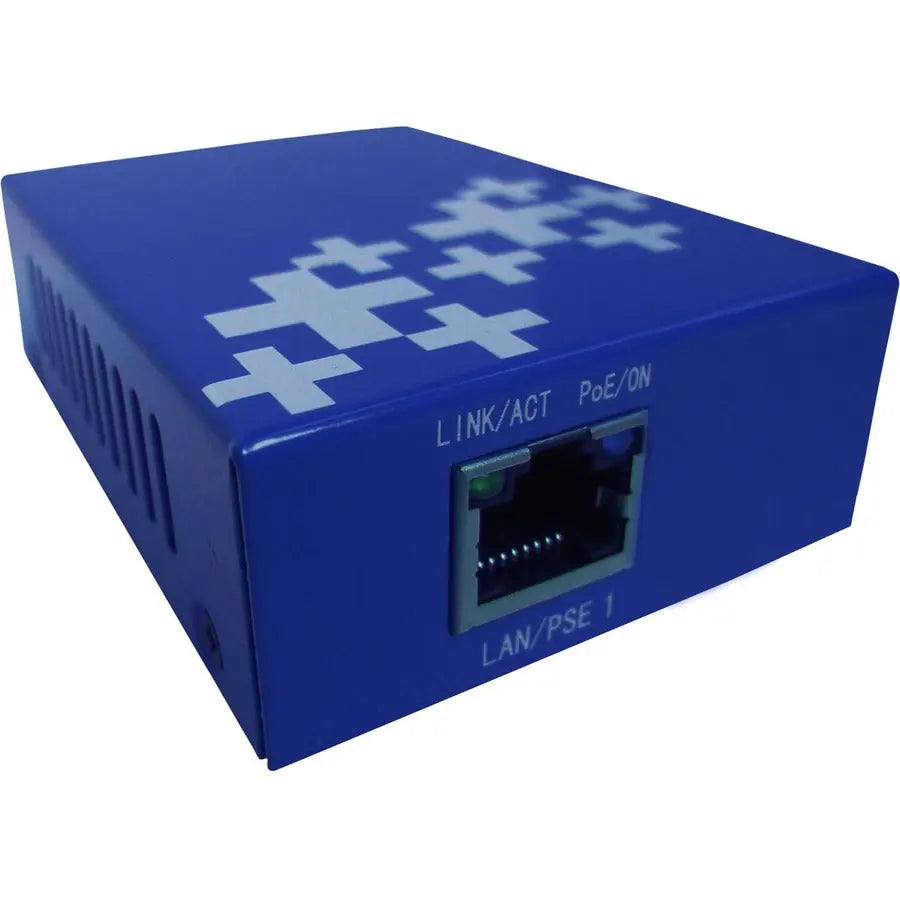

4XEM 1-Port 100M 10/100 Mbps PoE Extender for Long-Range Power and Data Transmission

The 4XEM 1-Port PoE Extender (Part Number: 4XLS101) provides a reliable solution for extending Power over Ethernet (PoE) beyond the standard 100-meter limit. Designed for easy deployment, this durable device supports 10/100 Mbps data rates and delivers up to 25.5W of power in compliance with IEEE 802.3at and IEEE 802.3af standards. Powered via PoE inputs, the extender eliminates the need for local power sources, enabling plug-and-play operation without complex configuration. Multiple units can be cascaded to extend network reach up to 500 meters, making it ideal for surveillance cameras, VoIP phones, and other PoE-powered devices in large-scale installations. The device features LED indicators for power, link, activity, and PoE status, facilitating straightforward troubleshooting and monitoring. Its compact dimensions and robust construction ensure dependable performance in various environments, with operating temperatures ranging from 0°F to 55°F and humidity levels between 10% and 90%. Designed to support standard Cat 5 UTP cabling up to 100 meters, this extender ensures high-quality data and power delivery across extended distances, reducing the need for costly infrastructure upgrades. Whether deploying a new network or expanding an existing one, the 4XEM PoE Extender simplifies long-distance PoE distribution with its reliable, cost-effective design and compatibility with industry standards.

Features:

• Supports IEEE 802.3af and IEEE 802.3at PoE standards for flexible device powering

• Extends network reach up to 500 meters with cascading capability

• Supports 10/100 Mbps data rates for reliable network connectivity

• Delivers up to 25.5W of power to PoE-powered devices

• Powered via PoE input, no local power supply required

• Compact, durable design measuring approximately 3.4 inches in length

• LED indicators for Power, Link, Activity, and PoE status for easy monitoring

• Supports standard Cat 5 UTP cabling up to 100 meters

• Compatible with a wide range of PoE devices including cameras and IP phones

• Simple plug-and-play setup with no configuration needed
