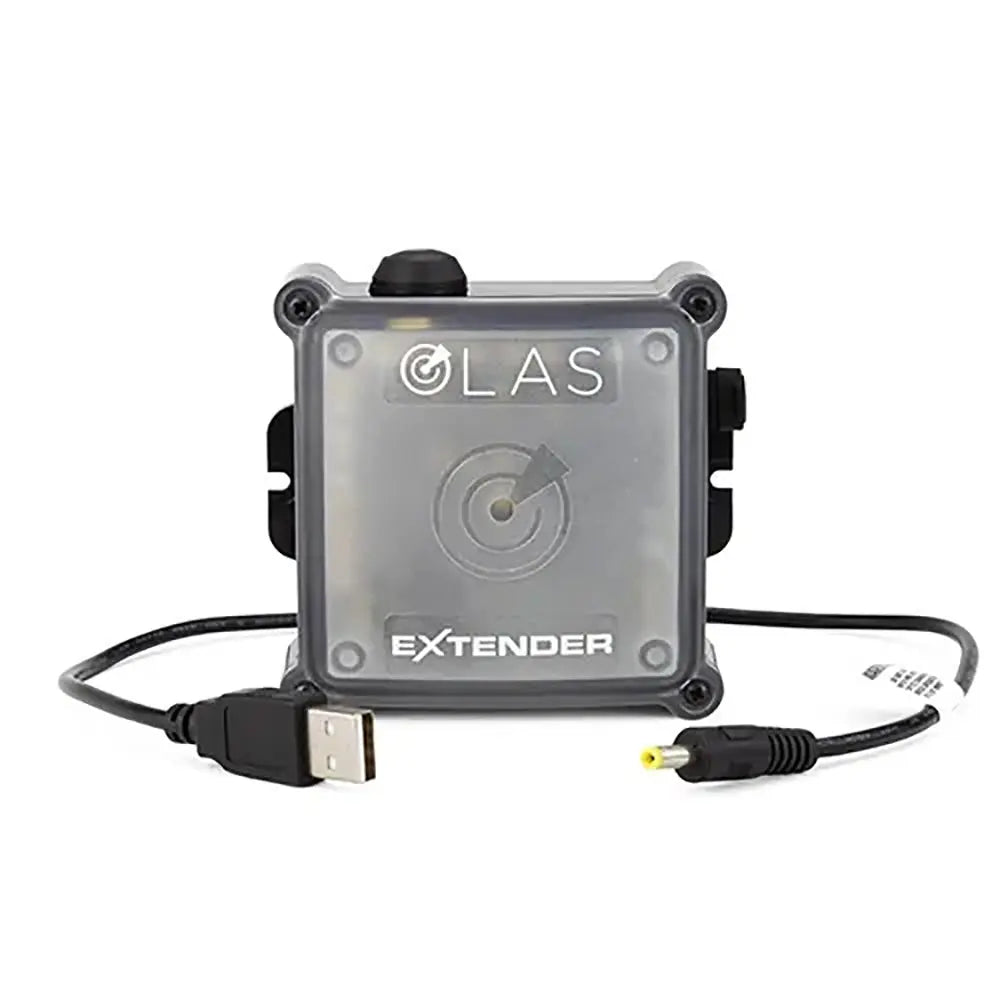

ACR Electronics OLAS Exposure Series Extender (Part No. EXPOLASEXTENDER) for Enhanced Range of MOB Alarm Systems

OLAS Exposure Series Extender

The OLAS Extender is a compact, portable, wireless repeater for the OLAS N2K NMEA 2000 MOB Alarm and Wireless Kill Switch, the OLAS Guardian MOB Alarm and Wireless Kill Switch, and the OLAS Core MOB alarm system. While the OLAS Tag, T2, and OLAS Float-On used alone with the mobile app allow for coverage on vessels up to 40ft, the N2K, Guardian, and Core allow for coverage on vessels up to 50ft, the Extender can be used with the Core, Guardian, or N2K to increase coverage for vessels up to 100ft in length.

Extender Advantages

Quick, easy setup with no hard wiring required

• Switch an N2K, Guardian, or Core into pairing mode, and the Extender automatically connects and remains paired.
• Use the LED indicator on the switch to position the Extender in the optimum position on the vessel. Using the rechargeable battery, the Extender can be walked around the vessel, and as the LED on the switch turns to solid red, the connection has been broken. Return to a position where the Extender is reconnected and secure it in this location.

Portable and low power (5V USB)

• The Extender can operate with its internal rechargeable battery for up to 80 hours or as a permanent solution, it can be attached to a 5V power supply with its USB lead.

Automatic transmitter connection

• Switch an N2K, Guardian, or Core into pairing mode, and the Extender automatically connects and remains paired.

Extends OLAS System

• Adds up to 50ft extra range to the N2K, Guardian, and Core base systems. Note: One Extender extends range by 25ft and a total of 2 Extenders can be utilized to extend the range of the system by a total of 50 ft.

Features:

• Extend the range of the OLAS MOB System up to 100 ft. vessels
• Waterproof (IP67)

Specifications:

• Size: 3.6 (H) x 3.5 (L) x 1.5 (W)/92 (H) x 90 (L) x 38 (W) mm
• Weight: 4.06 ounces (115 g)
• Color: Black and Clear
• Operation: Switch OLAS N2K, GUARDIAN, or CORE into paring mode and switch OLAS EXTENDER on by pressing the button once
• Power / Current: 5V / 13-17mA
• Recharge Time: 3 hours
• Approvals: FCC, RED, CE, RoHS 2.0
• Range: For use with vessels up to 100 feet (requires the use of 2 Extenders)
• Buoyant: No
• Waterproof: Yes (IP67)
• Housing Material: ABS
• Warranty: 2 Years

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The ACR Electronics OLAS Exposure Series Extender is a compact, portable wireless repeater designed to significantly enhance the coverage of your OLAS MOB alarm and wireless kill switch systems on vessels up to 100 feet. Compatible with the OLAS N2K, Guardian, and Core systems, this extender adds up to 50 additional feet of range, enabling safer perimeter monitoring on larger boats. Its easy setup requires no hard wiring—simply switch the base system into pairing mode, activate the extender, and it will automatically connect and stay paired. The LED indicator assists in optimal placement by signaling when the connection is secure or broken, allowing users to walk around the vessel and find the best positioning. The rechargeable battery provides up to 80 hours of operation, making it suitable for portable use or as a permanent installation powered via a standard 5V USB supply. The extender’s design emphasizes low power consumption with a current draw of just 13-17mA, and it features a waterproof IP67 rating to withstand harsh marine environments. Its small size—roughly 3.6 inches tall, 3.5 inches long, and 1.5 inches wide—makes it unobtrusive on any vessel, and its durable ABS housing ensures long-lasting performance. This product is FCC, RED, CE, and RoHS 2.0 certified, ensuring compliance with international safety standards. The extender is an ideal accessory for boaters seeking to extend the effective range of their MOB alarm systems, providing peace of mind through reliable, extended coverage. Please note that the system requires the use of two extenders to reach the maximum 100-foot range, making it an essential addition for larger vessels or crews that demand comprehensive safety coverage.

Features:

• Extends the OLAS MOB System range up to 100 feet on vessels

• Adds up to 50 feet of coverage with two extenders (25 feet per extender)

• Easy, no-hard-wiring setup for quick installation

• Automatic pairing with OLAS N2K, Guardian, or Core systems

• LED indicator for optimal placement and connection status

• Rechargeable battery with up to 80 hours of operation

• Operates via 5V USB power supply or internal battery

• Waterproof (IP67) for marine durability

• Compact size and lightweight design for portability

• Certified for safety and environmental standards (FCC, CE, RoHS)
