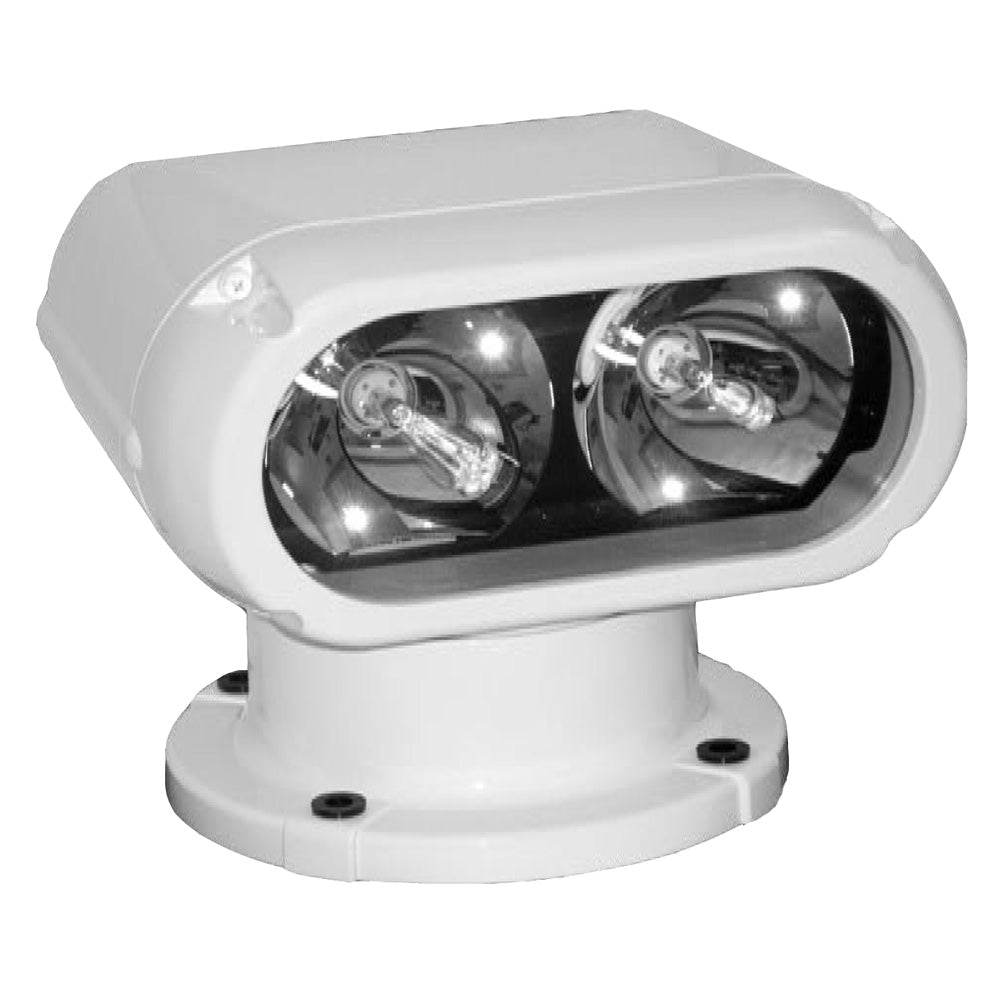

ACR Electronics RCL-300A HID Remote-Controlled Searchlight, 12V/24V, Part Number 1933

RCL-300A HID Searchlight - 12V/24V

The RCL-300A was specially designed for mariners who require a high intensity remote controlled searchlight that can stand up to the tough marine environment.

The sleek design and modern construction of the searchlight body makes it attractive for recreational and commercial vessels. The searchlight is totally enclosed and is made of rugged aluminum alloy. It is gasketed and finished to be resistant to the weather.

The RCL-300A searchlight contains a narrow beam searchlight that produces 1,000,000 peak candle power by combining twin 35W metal halide HD lamps providing over 500K candela (CD) each and 1 million effective CD when combined.

Its also simple to use with the ACR Point Pad controller.

Features:

• Internal elevation mechanism provides pitch control of spotlight beam
• Up to three remote Point Pad units may be installed on system
• Rugged triple-primed and sealed, marine grade aluminum housing
• Exclusive XRCiZ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• Auto return function that returns light to forward position when powered down
• Salt water-resistant construction with nylon and phenolic washers for years of reliable service

Technical Specifications:

• Color - White
• Material - Marine-grade cast aluminum, tempered glass
• Operation - Remote controlled Point Pad
• Voltage Input - 12/24 VDC
• Lamp - Twin 35W metal Halide lamps
• Rotation - 360 continuous
• Tilt - 45
• Light Pattern - Variable; can be narrowed or broadened
• Beam Angle - 15 up, 30 down
• Dimensions (H x W x D) - 12" x 13" x 9.3" (31 x 33 x 23.5 cm)
• Dimensions (Footprint Diameter) - 9 (23 cm)
• Weight - 31 lb (14.06 kg)

In the Box:

• RCL-300A Searchlight (12/24 V)
• Coaxial cable kit
• URP-102 Point Pad
• URC-300 Master controller
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

ACR Electronics RCL-300A HID Searchlight, 12V/24V

The ACR Electronics RCL-300A HID Searchlight is designed for mariners who need powerful, remote-controlled illumination that can withstand demanding marine conditions. Its narrow-beam lighting system delivers up to 1,000,000 peak candlepower using twin 35-watt metal halide lamps, providing more than 500,000 candela per lamp and up to 1 million effective candela when combined. The variable light pattern can be narrowed or broadened to support long-range searching, navigation, docking, and general vessel operations.

Built for recreational and commercial vessels, the RCL-300A features a fully enclosed, gasketed housing made from rugged marine-grade cast aluminum with a durable white finish and tempered glass lens. Remote operation is provided by the included URP-102 Point Pad and URC-300 master controller, while the internal elevation mechanism allows pitch control of the beam. The searchlight offers continuous 360-degree rotation and vertical adjustment for flexible coverage from the helm or another convenient control station.

Designed for long-term reliability in saltwater environments, the searchlight incorporates nylon and phenolic washers, sealed construction, and ACR Electronics’ exclusive XRCiZ function. XRCiZ automatically rotates and moves the light assembly every 30 days after activation to help keep bearing surfaces free of corrosion and electrical contacts operational. The auto-return feature brings the light to its forward position when power is switched off. Up to three remote Point Pad units can be installed in the system. The package includes the searchlight, coaxial cable kit, controllers, and instruction manual. This product is sold individually. Refer to the manufacturer for support regarding product issues or concerns.

WARNING: This product can expose you to chemicals including BISPHENOL A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Features:

• High-Intensity Illumination: Twin 35-watt metal halide lamps produce up to 1,000,000 peak candlepower.
• Remote Operation: Includes an URP-102 Point Pad and URC-300 master controller for convenient vessel-mounted control.
• Marine-Grade Construction: Triple-primed and sealed aluminum housing with tempered glass and saltwater-resistant components.
• Wide Beam Control: Provides continuous 360-degree rotation, vertical beam adjustment, and a variable beam pattern.
• XRCiZ Maintenance Function: Automatically moves and rotates the light assembly every 30 days to help prevent corrosion and maintain electrical contact performance.
• Auto Return: Returns the searchlight to the forward position when power is switched off.
• Flexible Installation: Supports up to three remote Point Pad control units.
• Power Compatibility: Operates with 12V or 24V DC marine electrical systems.
