ACR RCL100 LED Searchlight Wired and Wireless Controls White Housing 12/24vDC

ACR RCL100 LED Searchlight Wired and Wireless Controls White Housing 12/24vDC

• Ultra-bright, 9 LED array generates over 220,000 peak candela


• Efficient, long-life LED’s — 40,000 operating hours


• Reduced power consumption demand by up to 50% on 12V vessels


• The controller has state-of-the-art electronics to protect the light from most power surges


• Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather


• Rugged triple-primed and sealed, marine-grade aluminum housing


• Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included


• Exclusive XRCiZ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional


• The wiring harness of 15 feet (4.57 m)


• Two-speed motor

The RCL-100 LED searchlight continues to utilize the same rugged design as the original RCL-100D, but incorporates a new efficient 9 LED array that produces over 220,000 candelas of light. The strong and light aluminum housing along with glass lens are weather-sealed for years of trouble-free operation. Other features include a wired remote that allows continuous 360 degrees of rotation at fast or slow speed without the hassle of a hard stop. With a 7-degree beam angle, the light also provides elevation angles at 9 degrees up and 17 degrees down to make lighting draw bridges, buoys, and docks a breeze. Not all searchlights are created equal and the body is triple-primed and painted with UV stabilizer to survive years in the harsh marine environment. The RCL-100 LED searchlight internals a fully enclosed and provide precise pitch control of the beam while staying protected. The efficiently designed LED array provide over 40,000 hours. The light also includes our Exclusive XRCiZ feature, independently rotating every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts functional. The RCL-100 LED is weather-resistant and operates with 12 or 24 DC power.

Size
8 x 9 x 8" (20.3 x 22.9 x 20.3 cm)

Weight
7.2 lbs (3.2 kg)

Material
518 Die-cast aluminum

Color
White

Beam Angle
7° vertical, 7° horizontal

Elevation Angle
9° up, 17° down

Rotation
360° continuous

Rotation Speed
Fast 31° per second, slow 20° per second

Elevation Speed
2.8° per second

Lamp
9 LED Array (220,000 cd)

Footprint Diameter (without pedestal)
4.75" (120.7 mm)

What's in the Box:

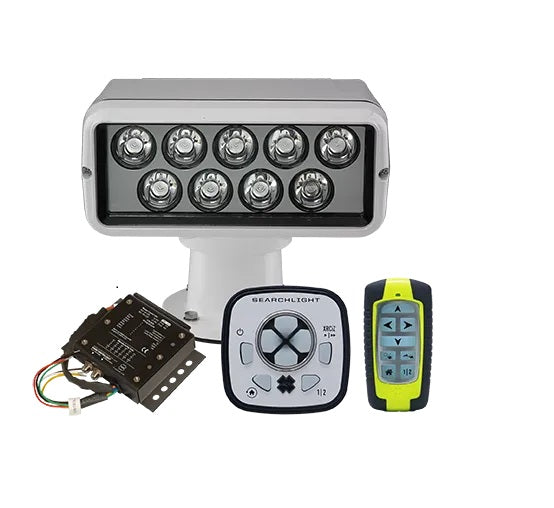

• RCL-100 LED, White, with new URC-104 Master Controller, URP-103 Point Pad, & URH-103 Handheld Wireless Remote
