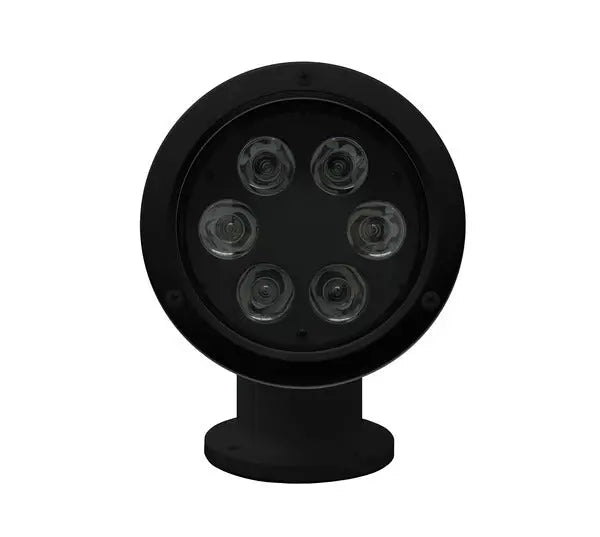

ACR RCL50 LED Searchlight Black Housing

ACR RCL50: Powerful and Durable LED Searchlight with Black Housing

ACR RCL50 LED Searchlight Black Housing

ACR RCL-50 LED Searchlight - Black

Model: ACR1961

• Ultra-bright, 6 LED array generates over 100,000 peak candela
• Efficient, long-life LED's - 40,000 operating hours
• Reduced power consumption demand by up to 50% on 12V vessels
• The controller has state-of-the-art electronics to protect the light from most power surges
• Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
• Rugged triple-primed and sealed, marine-grade aluminum housing (Available in White or Black)

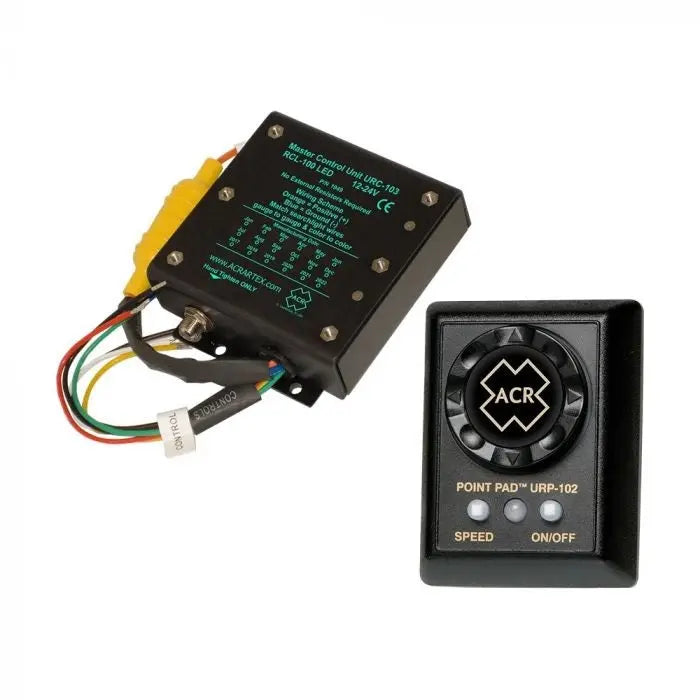

• Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
• Exclusive XRCiZTM feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• Includes wiring harness of 15 feet (4.57 m)
• Two-speed motor

Designed for small-to-mid-size pleasure crafts and small commercial vessels, this rugged searchlight boasts a new 6 LED lamp with over 100,000-candela power. Built for the rough and tough marine environment, the new RCL-50 utilizes the same proven die-cast aluminum housing with all new internal mechanical controls to power and rotate the ultra-bright LED lamp.

The RCL-50 LED's traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, yachts, sport fishers, workboats, and light commercial vessels. With more efficient LEDs, the RCL-50 LED has reduced power consumption demand by up to 50% on 12V vessels.

The RCL-50 LED continues to utilize the same rugged design as the original RCL-50D but incorporates a new efficient 6 LED array that produces over 100,000 candelas of light. The die-cast aluminum housing and glass lens are sealed against the elements for years of trouble-free operation. Other features include a wired remote control operation that allows users to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With a 10-degree beam angle, the light also provides elevation angles at 20 degrees up and 20 degrees down to make lighting draw bridges, buoys, and docks a breeze.

Not all searchlights are created equal. The die-cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in the harsh marine environment. The light's internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected. The LED bulbs are efficiently designed to provide over 40,000 operating hours. The light also includes our Exclusive XRCiZTM feature that is pre-programmed and allows for the light to independently rotate every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts functional. The RCL-50 LED is weather-resistant and operates with 12 or 24 DC power.

Specifications

MaterialDie-cast aluminum (518)

Operation
Remote-controlled Point PadTM

Beam Spread
10 deg

Elevation Angle
20 deg up, 20 deg down

Rotation
360 deg continuous

Rotation Speed
31 deg per second @ 12V

Elevation Speed
10 deg per second @ 12V

Lamp
High-intensity LED lamp

Footprint Diameter
4.75 in (120.7 mm)

Size
8.4 x 6 x 8 in(21.3 x 15.2 x 20 cm)

What's in the Box:

• RCL-50 LED Black
• Point Pad
• 15 feet wire harness

High-Performance LED Illumination

The ACR RCL50 offers exceptional LED illumination, providing strong and focused light output suitable for marine navigation and security. This searchlight features energy-efficient LEDs that produce a bright beam with minimal power consumption. Its advanced optics deliver a wide and penetrating light range to enhance visibility during night operations or low-light conditions. Designed for reliable performance, the ACR RCL50 ensures consistent lighting that meets the demands of professional users who require clear, unobstructed views.

Robust Black Housing for Harsh Environments

The ACR RCL50 is built with a sturdy black housing that resists corrosion and withstands exposure to harsh marine environments. The housing material is engineered to protect internal components from saltwater, UV rays, and physical impacts. This rugged construction guarantees durability and longevity, making the searchlight ideal for use on boats, ships, and other outdoor settings. Its sleek black finish not only enhances appearance but also provides additional protection against wear and tear.

Ease of Installation and Operation

Designed with user convenience in mind, the ACR RCL50 is easy to install and operate. It comes with mounting options that allow flexible placement on various surfaces, ensuring optimal positioning for maximum lighting coverage. The control system is intuitive, enabling quick adjustment of the light angle and beam direction. This searchlight supports 12V and 24V power systems, accommodating different vessel electrical setups. Overall, the ACR RCL50 promotes a hassle-free experience for users seeking dependable, high-quality lighting solutions.
