ACR RCL50 LED Searchlight Wired and Wireless Controls White Housing 12/24vDC

ACR RCL50 LED Searchlight Wired and Wireless Controls White Housing 12/24vDC

• Ultra-bright, 6 LED array generates over 100,000 peak candela


• Efficient, long-life LED’s — 40,000 operating hours


• Reduced power consumption demand by up to 50% on 12V vessels


• The controller has state-of-the-art electronics to protect the light from most power surges


• Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather


• Rugged triple-primed and sealed, marine-grade aluminum housing (Available in White or Black)


• Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included


• Exclusive XRCiZ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional


• Includes wiring harness of 15 feet (4.57 m)


• Two-speed motor

Designed for small-to-mid-size pleasure crafts and small commercial vessels, this rugged searchlight boasts a new 6 LED lamp with over 100,000-candela power. Built for the rough and tough marine environment, the new RCL-50 utilizes the same proven die-cast aluminum housing with all new internal mechanical controls to power and rotate the ultra-bright LED lamp.

The RCL-50 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, yachts, sport fishers, workboats, and light commercial vessels. With more efficient LEDs, the RCL-50 LED has reduced power consumption demand by up to 50% on 12V vessels.

The RCL-50 LED continues to utilize the same rugged design as the original RCL-50D and includes an efficient 6 LED array that produces over 100,000 candelas of light. Built for small to medium boats the aluminum housing and with sealed glass lens protecting for years of trouble-free operation. Other features include a wired remote control that allows users 360 degrees of continuous rotations at fast or slow speeds without the hassle of a hard stop. With a 10-degree beam angle, the light also provides elevation angles at 20 degrees up and down to making lighting draw bridges, buoys, and docks a breeze.

The aluminum case is coated with a UV stabilizer to survive years in the harsh marine environment. The searchlight’s mechanisms are fully enclosed with protecting the precise beam pitch control and RCL-50 LED bulbs are designed to work over 40,000 operating hours. Featuring Exclusive XRCiZ, a pre-programmed system to independently rotate every 30 days from activation to protect from corrosion and all electrical contacts functional. The RCL-50 LED is weather-resistant and operates with 12 or 24 DC power.

Size
8.4 x 6 x 8"(21.3 x 15.2 x 20 cm)

Weight
7.72 lbs (3.5 kg)

Material
Die-cast aluminum (518)

Color
White

Beam Spread
10°

Elevation Angle
20° up, 20° down

Rotation
360° continuous

Rotation Speed
31° per second @ 12V

Elevation Speed
10° per second @ 12V

Lamp
High-intensity LED lamp

Footprint Diameter
4.75" (120.7 mm)

Limited Warranty
1 Year

What's in the Box:

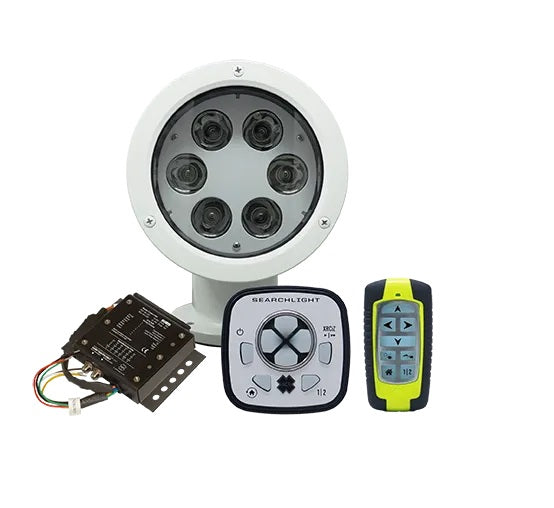

• RCL-50 LED, White, with new URC-104 Master Controller, URP-103 Point Pad, & URH-103 Handheld Wireless Remote
