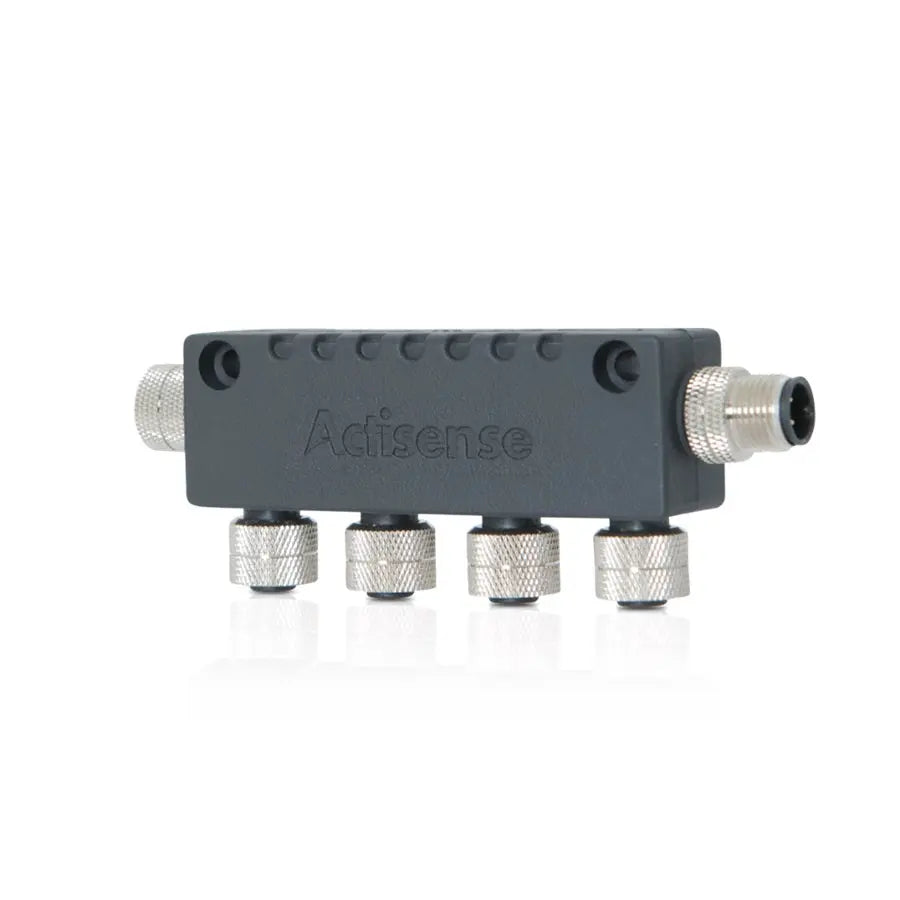

Actisense A2K-4WT NMEA2000 Micro 4-Way T

Actisense A2K-4WT NMEA2000 Micro 4-Way T

Actisense NMEA 2000® Micro 4-Way T piece

The Actisense NMEA 2000® 4 Way Multidrop T Piece is for use where a multiple drop or ‘ports’ are required from the NMEA 2000® backbone to connect other devices.

With five female and one male connector, the A2K-4WT can be easily connected to Actisense NMEA 2000® micro cable assemblies, available in various lengths with UL certified cable

Rated Current
4A

Rated Voltage
60V DC

Male Contact
Brass, gold plated

Female Contact
Phosphor bronze, gold plated

Contact Carrier
PA66 (30% Glass filled), black

Contact Polarisation
Standard M12 -"A"- polarisation

Mating Thread
M12

Screw Cap
Brass, nickel plated

O-Ring Seal
Rubber, Black

Housing
TPU, flame retardant to UL94V-0, Halogen Free

Internal Housing Shield
Copper Foil

Weight
105g
