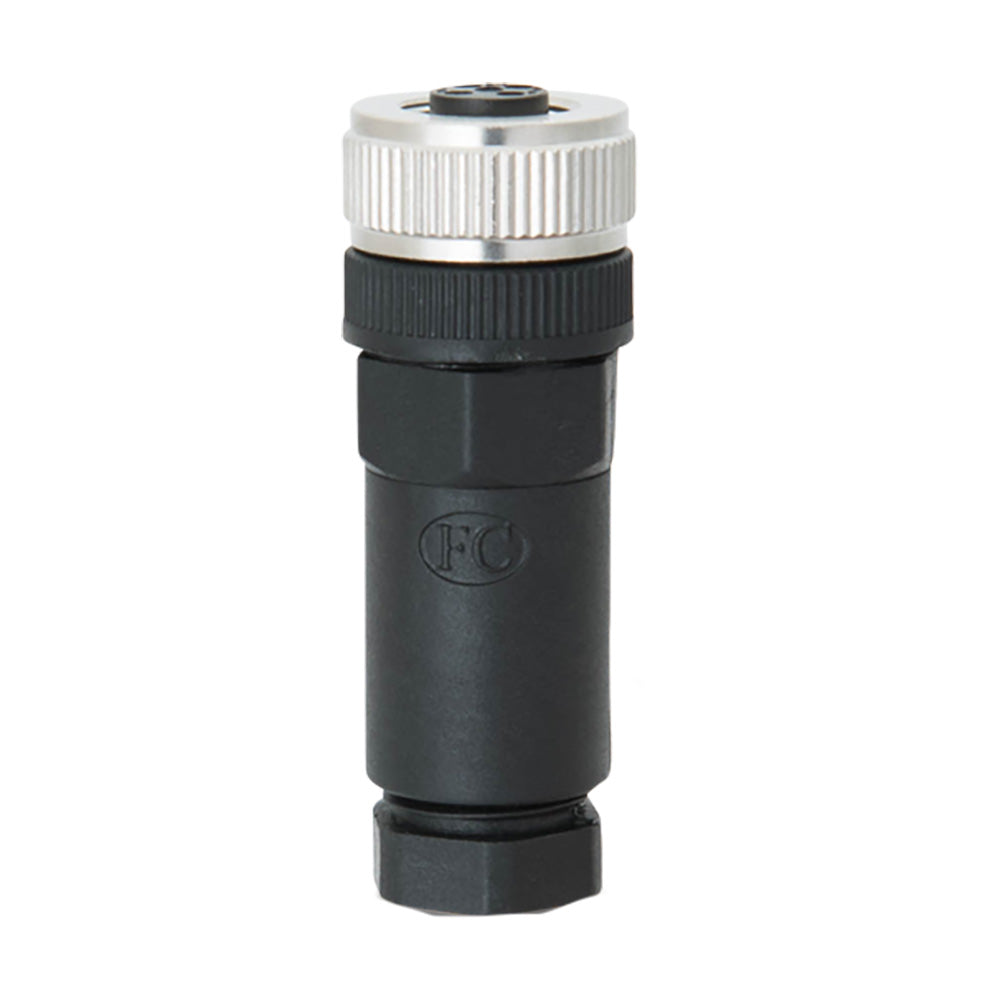

Actisense A2K-FFC-SF NMEA 2000 Straight Micro Field-Fit Connector, Female

NMEA2000 Straight Micro Field Fit Connector - Female

Field-fit connectors allow full customization of your NMEA 2000 network cabling.

Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.

The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Connector Contact - Brass, gold plated
• Wire Gauge/Size - 22 AWG/0.34mm
• Contact Resistance - 5 m
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Connector Screw - Stainless Steel
• Sealing Gland Size - PG9/6-8mm Cable
• O-Ring Seal - Rubber, black
• Connector Insert - TPU
• Connector Body - PA+GF, black
• Insulation Resistance - 100 M
• Weight - 26.5g

Approvals and Certifications

• Protection - IP67 (in locked condition)
• Ambient Temperature - -25C to +90C

Actisense A2K-FFC-SF NMEA 2000 Straight Micro Field-Fit Connector, Female provides a dependable way to build and customize NMEA 2000 networks using Lite cable. This straight female connector is designed for field installation, allowing cable runs to be cut and terminated at the required length instead of relying on preassembled cable sections. The result is a cleaner, more efficient installation with less excess cable.

The Actisense field-fit design supports flexible network planning in marine electronics installations. Male and female connector versions, along with straight and right-angle configurations, make it easier to route cabling around equipment, panels, and tight bends. The internal sealing gland tightens around the cable as the connector is assembled, helping maintain a watertight connection when properly installed and locked.

Built for reliable electrical and mechanical performance, the A2K-FFC-SF features gold-plated brass contacts, a stainless steel connector screw, a black PA+GF connector body, and a TPU connector insert. The standard M12 A-coded polarization helps support correct mating, while the rubber O-ring and PG9 sealing gland accommodate compatible Lite cable. The connector is rated IP67 in the locked condition and is suitable for ambient temperatures from -13°F to 194°F.

Technical Specifications:

Electrical

• Rated current: 4 A
• Rated voltage: 60 VDC
• Contact resistance: 5 m
• Insulation resistance: 100 M

Mechanical

• Wire gauge: 22 AWG
• Contact polarization: Standard M12 A-coded
• Mating thread: M12
• Sealing gland: PG9 for 0.24-0.31-inch cable
• Connector contact: Gold-plated brass
• Protection rating: IP67 when locked
• Approximate weight: 0.93 oz

Important: This product may not be returned to the original point of purchase. Contact the manufacturer directly with any issues or concerns.

Features:

• NMEA 2000 compatibility: Designed for customized NMEA 2000 network installations using Lite cable.

• Female field-fit connector: Allows cable to be cut and terminated for a precise network run.

• Watertight sealing: Internal gland and rubber O-ring help maintain IP67 protection when locked.

• Flexible installation: Straight connector format supports clean cable routing in marine electronics systems.

• Electrical performance: Rated for 4 A and 60 VDC with gold-plated brass contacts.

• Durable construction: Includes a stainless steel connector screw, TPU insert, and black PA+GF body.

• Cable compatibility: PG9 sealing gland accommodates compatible 22 AWG Lite cable.

• Brand and part number: Actisense A2K-FFC-SF.
