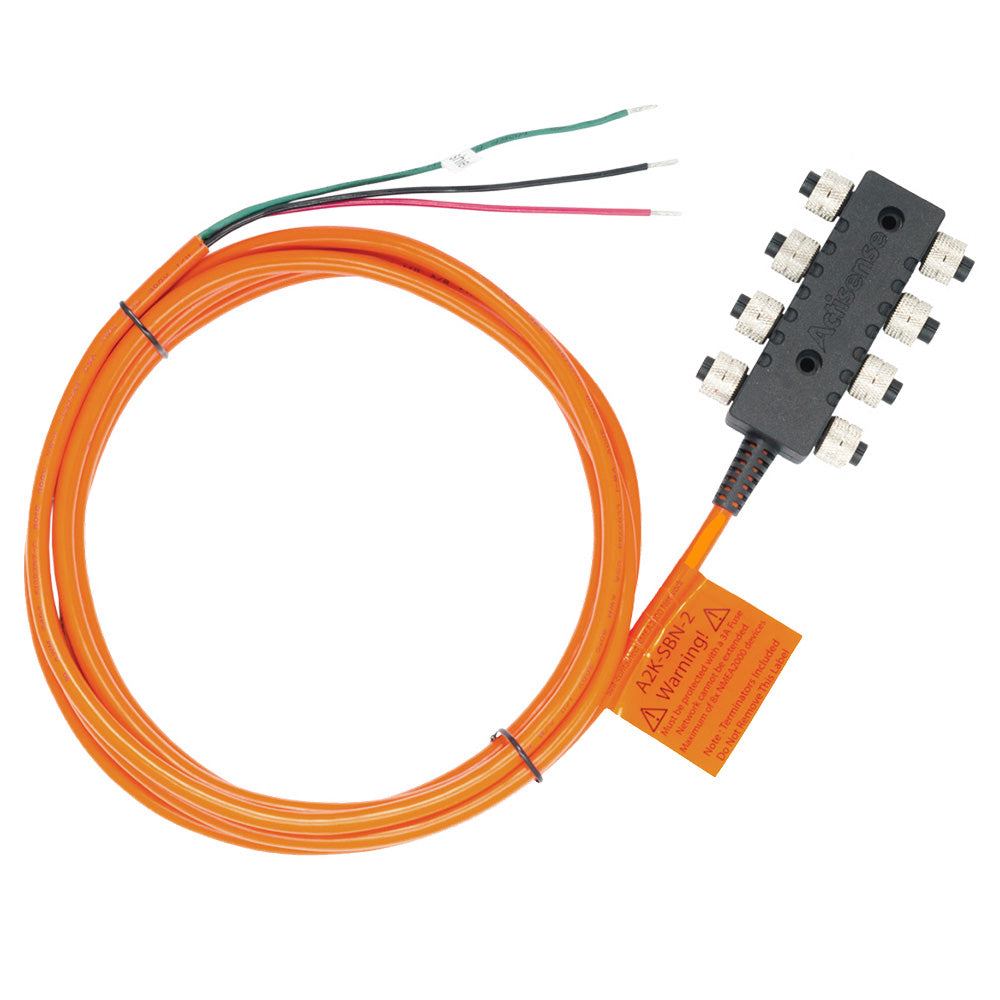

Actisense A2K-SBN-2 Self-Contained Boat Network for Up to 8 Devices with Internal Terminators and Power Feed

Self-Contained Boat Network - Complete Network f/8 Devices w/Internal Terminators Power Feed

Installing small NMEA 2000 networks is quicker and easier than its ever been with the Self-contained Boat Network (SBN) from Actisense.

The equivalent of eight T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

Once the attached 3 meter cable is connected to the boats power supply, an NMEA 2000 network for up to eight devices is ready to use, taking plug play to the next level.

Features:

• Self-contained NMEA 2000 Network
• Integrated Termination Resistors
• 8x NMEA 2000 drops
• Ruggedized, flame retardant over-molded housing
• Metal coupling nuts
• Integrated EMI Shield
• Orange, UL Rated, 3-meter power cable
• Color coded wires, stripped and tinned
• Low cost, quick to install, and provides an easy way to connect multiple NMEA 2000 devices
• Simple installation, fewer components, more reliable, lower cost
• Accommodates the vast majority of compact NMEA 2000 networks
• Suitable for wet and harsh conditions- highly desirable in marine environments
• Reliable, long lasting connections
• Less likely to be susceptible to interference
• UL rated cable provide peace of mind. Color easily differentiates the power cable form drop cables
• Quick installation, no special tools required

Technical Specifications:

Electrical

• Rated Current - 3A
• Rated Voltage - 60 V (AC/DC)
• Internal Termination Resistors - 2 x 120 250mW

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 A polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - TPU (Halogen Free) over Epoxy filled PBT housing
• Flammability rating - UL94 V-0
• Internal Housing Shield - Copper foil
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.8mm
• Cable Length - 3m
• Wire Length - 150mm (10mm stripped and tinned)
• Wire Jacket - PVC, Red Black
• Wires - 16 AWG (stripped and tinned)
• Drain - 18 AWG (34 strand tinned copper)
• Cable Shield - Al-mylar
• Weight - 410g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25C to +70C
• Storage Temperature - -40C to +85C

The Actisense A2K-SBN-2 is an innovative, self-contained NMEA 2000 network designed specifically for marine environments. This compact device consolidates the functionality of eight T-pieces into a single rugged housing, saving valuable space and reducing installation time. Its integrated termination resistors eliminate the need for additional components, streamlining the setup process and enhancing reliability. Once connected via the included 3-meter UL-rated power cable, the network is ready to operate, providing a plug-and-play solution suitable for a wide range of small NMEA 2000 networks on boats. The durable, flame-retardant over-molded housing and metal coupling nuts ensure a secure connection even in harsh conditions, while the integrated EMI shield minimizes interference for consistent data transmission. Designed to withstand wet and demanding marine environments, this network is certified IP67 when mated, ensuring protection against water ingress and dust. The device's color-coded, tinned wires simplify installation, and the use of UL-rated cable guarantees safety and peace of mind. The system supports a maximum current of 3A and operates reliably within a temperature range from -25°C to +70°C, making it suitable for various maritime conditions. The internal components, including phosphor bronze, gold-plated contacts and a copper foil shield, contribute to long-lasting, corrosion-resistant connections. Its compact size and straightforward installation process make it an ideal choice for integrating multiple NMEA 2000 devices efficiently, reducing the need for extra components and minimizing potential points of failure. This product is perfect for boat owners seeking a reliable, cost-effective, and easy-to-install network solution that ensures seamless communication among onboard devices.

Features:

• Self-contained NMEA 2000 network with integrated termination resistors

• Provides 8 NMEA 2000 device drops in a single compact unit

• Ruggedized, flame-retardant over-molded housing designed for marine environments

• Includes metal coupling nuts and an integrated EMI shield for secure and interference-resistant connections

• Comes with a 3-meter UL-rated orange power cable, color-coded, stripped, and tinned wires for easy installation

• Simple plug-and-play setup with fewer components, reducing installation time and cost

• Suitable for wet, harsh marine conditions with IP67 protection when mated

• Supports rated current of 3A and operates effectively from -25°C to +70°C

• s corrosion-resistant contacts and internal shielding for long-lasting reliability

• Easy to install without specialized tools, ideal for small NMEA 2000 networks
