SKU:111815

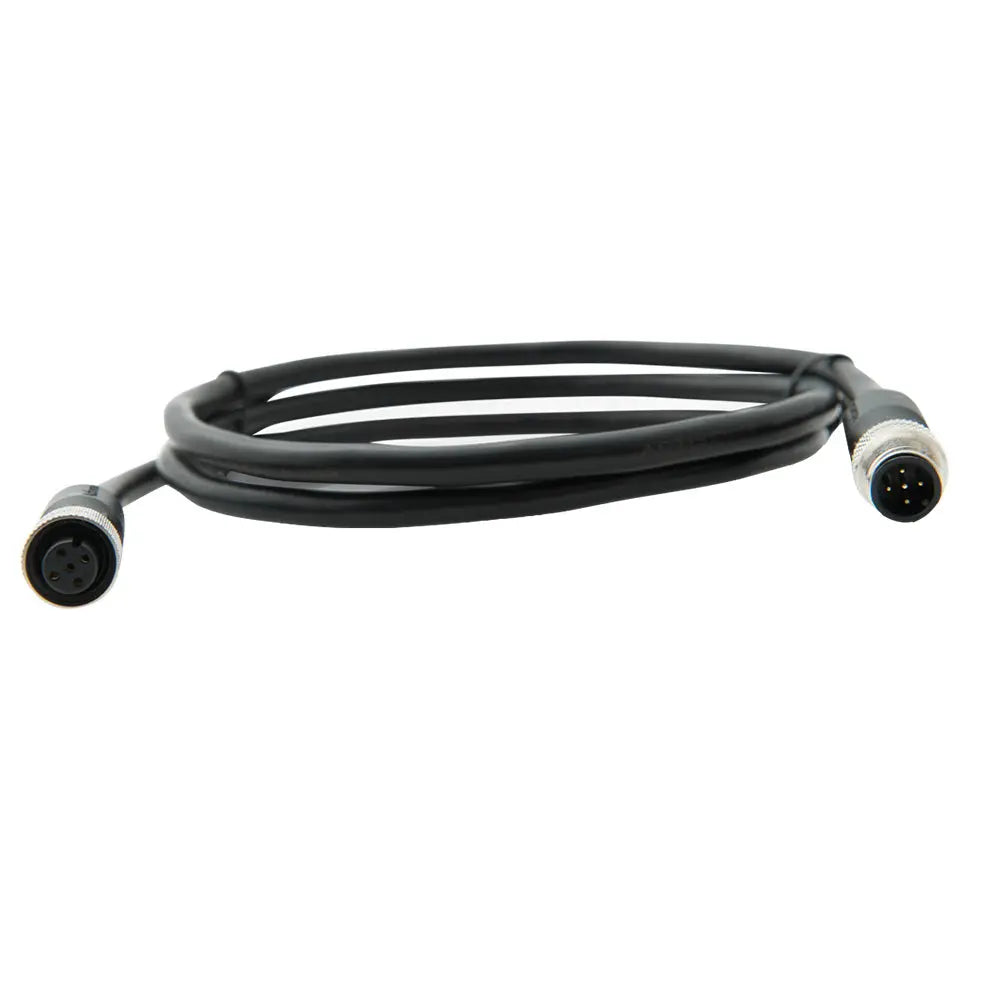

A2K-TDC-0M25 NMEA2000 Micro Cable Assembly - 0.25M
Available in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.
Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.
The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
The Actisense A2K-TDC-0M25 is a high-quality NMEA 2000 micro cable assembly designed for reliable marine electronics networking. This 0.25-meter (approximately 10 inches) cable is ideal for creating secure connections between NMEA 2000 backbone components or extending existing backbone networks. Its compact size and waterproof construction make it suitable for demanding marine environments, ensuring durability and consistent performance. The cable features five internal wires, including power, ground, two data lines, and a drain wire, all shielded to guard against external Radio Frequency Interference (RFI). The drain wire connects to the cable shield, helping to minimize RFI emissions and protect signal integrity during data transmission. The assembly is manufactured with UL-certified cable, ensuring quality and safety standards are met. It is designed for quick installation, with robust M12 connectors that feature brass, gold-plated male contacts and phosphor bronze, gold-plated female contacts for secure, corrosion-resistant connections. The housing and screw caps are made of durable PVC and nickel-plated brass, respectively, providing protection against harsh marine conditions. The cable's rated current is 3 amps, and it operates at a maximum voltage of 60VDC, making it suitable for various marine electronic setups. Its IP67-rated protection when mated guarantees resistance to water and dust, while its operating temperature range from -20°C to +70°C ensures reliable performance across diverse environmental conditions. Whether building a new NMEA 2000 network or extending an existing one, the Actisense A2K-TDC-0M25 offers a dependable and straightforward solution for marine electronics systems. For detailed installation instructions and technical support, refer to the manufacturer's manual linked in the product details.
Features:
