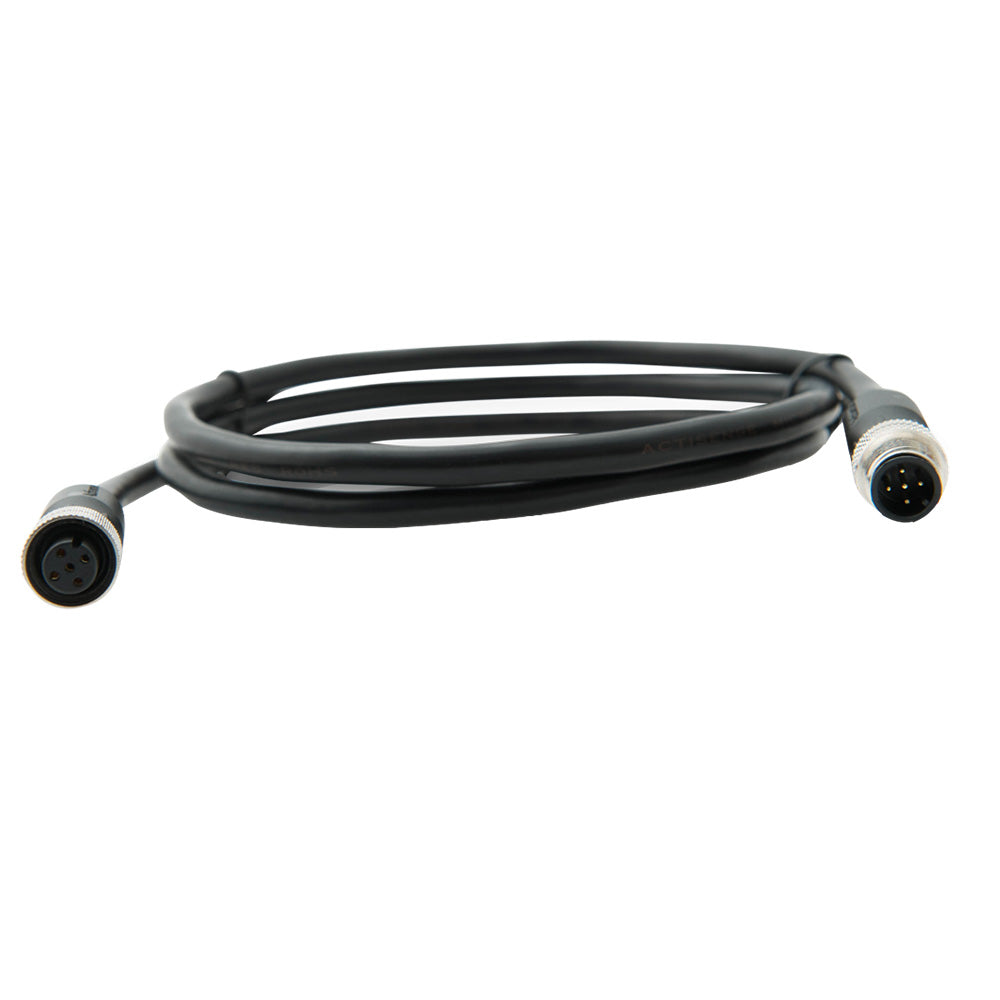

A2K-TDC-1M NMEA2000 Micro Cable Assembly - 1M
Available in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.
Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.
The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
The Actisense A2K-TDC-1M NMEA 2000 Micro Cable Assembly offers a reliable and easy-to-install connection solution for marine electronics. Designed for NMEA 2000 networks, this 1-meter waterproof cable is ideal for drop connections from a backbone or extending the length of your existing network. Built with high-quality, UL-certified materials, it ensures robust performance and durability in marine environments. The cable features five internal wires—power, ground, two data signals, and a drain wire—encased in a waterproof jacket that provides protection against moisture and external interference. The drain wire connects to the cable shield, reducing radio frequency interference (RFI) and minimizing signal emission, which enhances overall network stability and performance. With a maximum backbone length of up to 100 meters and a drop length limit of 6 meters, this assembly is suitable for most marine networking applications. For longer backbone configurations, the cable can be extended using additional mini cables, maintaining network integrity. The cable's connectors are engineered with corrosion-resistant brass, gold-plated contacts, and high-quality plastics to ensure reliable connections and longevity. The design complies with IP67 standards when mated, making it suitable for harsh marine environments. Operating within a temperature range of -20°C to +70°C, the cable maintains performance across a variety of conditions. Whether you need to create a new network or extend an existing one, the Actisense A2K-TDC-1M Micro Cable Assembly simplifies installation and guarantees a secure, interference-free connection for your marine electronics systems. For detailed installation instructions, refer to the manufacturer’s manual available online.
