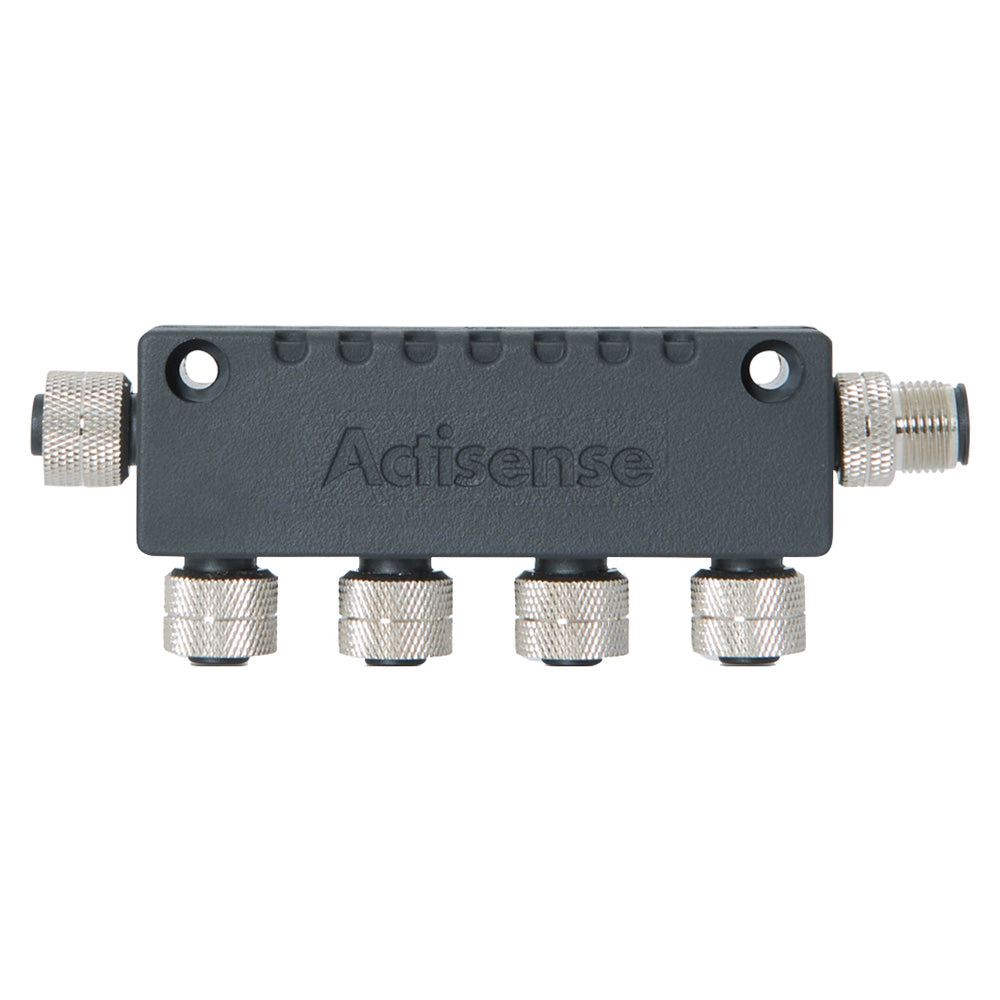

Actisense N2K Micro 4 Way T-Piece A2K-4WT for NMEA 2000 Networks

N2K Micro 4 Way T-Piece

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000 installation.

The Actisense 4 Way T-Piece is for use where multiple drops or ports are required from the NMEA 2000 backbone. Its as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

• NMEA 2000 Approved
• RoHS Compliant

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60V DC

Mechanical

• Male Contact - Brass, gold plated
• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, Black
• Housing - TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield - Copper Foil
• Weight - 105g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -20C to +70C
• Storage Temperature - -40C to +85C

The Actisense N2K Micro 4 Way T-Piece offers a reliable and efficient solution for expanding your NMEA 2000 network with multiple connection points. Designed with ease of installation in mind, this T-Piece allows you to add up to four devices or drops from a single backbone, saving space and reducing installation time. Its compact form factor makes it ideal for tight spaces on boats or marine setups, where maximizing space is critical. The durable construction and high-quality materials ensure long-lasting performance even in harsh marine environments. The T-Piece is fully compliant with NMEA 2000 standards and features robust connectors with gold-plated brass contacts for optimal signal integrity and corrosion resistance. Its IP67 rated protection guarantees reliable operation in wet conditions when properly mated, making it suitable for marine and outdoor applications. The housing is made from flame-retardant, halogen-free TPU with an internal copper foil shield, providing added safety and electromagnetic interference (EMI) protection. The device's electrical ratings include a 4A current capacity and 60V DC voltage rating, supporting a wide range of marine electronics. Approvals and certifications ensure that it meets industry standards for quality and safety, making it an ideal choice for professional and recreational marine installations. Whether you're expanding an existing network or installing a new system, the Actisense N2K Micro 4 Way T-Piece delivers durability, reliability, and ease of use in a compact package, ensuring your marine electronics remain connected seamlessly. Please note that this product should be installed by qualified personnel, and issues should be directed to the manufacturer for support, as it may not be returned to the initial point of purchase.

Features:

• NMEA 2000 approved for reliable marine data networking

• RoHS compliant for environmental safety

• Rated current of 4A supports multiple connected devices

• Gold-plated brass male contacts for corrosion resistance

• Phosphor bronze female contacts with gold plating

• High-quality, flame-retardant TPU housing with copper foil shield

• IP67 protection rating ensures water and dust resistance when mated

• M12 connector thread and standard M12-A polarization for compatibility

• Operating temperature range from -20°C to +70°C

• Robust construction designed for marine environment durability
