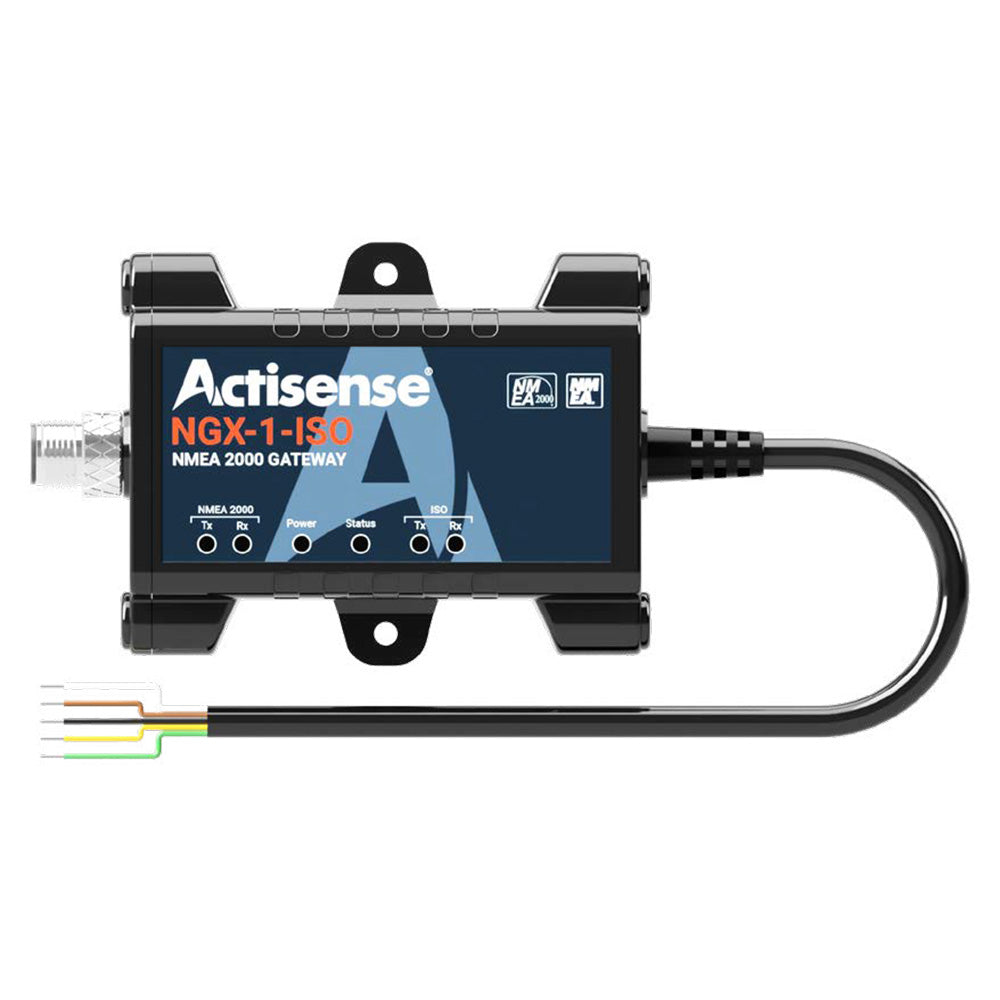

0183 to N2K Gateway with PC Interface, ISO Connection
Intelligent Gateway technology enables PC interfacing and NMEA data conversion
The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.
Configure the NGX-1 to operate as an NMEA 2000 <> PC interface, or as a bi-directional NMEA 0183 <> NMEA 2000 conversion gateway.
Features:
- View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
- View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
- Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
- Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
- Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
- Vital NMEA 2000 diagnostic tool
- OPTO-isolated input and ISO-Drive output for safely interfacing with RS232 or RS422
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Multiple diagnostic LEDs
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
Technical Specifications
Power Supply
- Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
- Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
- Load Equivalent Number (LEN) - 2
NMEA 2000 Port
- Speed / Baud Rate - 250kbps
- Connectivity - M12 Male (A coded)
ISO Port
- Compatibility - Full NMEA 0183, RS232 RS422 compatibility. RS485 Listener compatible
- Speed/Baud Rate - 4800 to 230400 Baud
- Output Voltage Drive - >= 2.1V (differential) into 100
- Output Current Drive - 20mA max.
- Output Protection - Short circuit and ESD
- Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second)
- Input Protection - Current limited and overdrive protection to 40VDC
- Connectivity - 5mm stripped and tinned wire
- Cable Length - 0.75m
Isolation
- NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
- NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V
Mechanical
- Housing Material Body - Flame retardant Polycarbonate
- Housing Material End Caps - Flame retardant PBT
- Weight - 113g
Approvals and Certifications
The Actisense NGX-1-ISO is an advanced multi-function gateway designed for seamless communication between NMEA 0183 and NMEA 2000 networks. This versatile device combines the capabilities of previous models into a single, cost-effective solution, enabling boaters and marine professionals to efficiently connect legacy instruments with modern NMEA 2000 systems. Its intelligent design allows for configuration as an NMEA 2000 to PC interface or as a bi-directional converter, simplifying integration across various marine electronics. The NGX-1-ISO supports full NMEA 2000 data visualization via Actisense NMEA Reader and offers extensive conversion libraries for NMEA 0183 data, ensuring compatibility with a broad range of instruments and applications. Its compatibility with popular PC chartplotter software such as TimeZero and OpenCPN makes it ideal for navigation and data management tasks. The device's robust ISO ports utilize IsoDrive technology, providing galvanic isolation and safety when connecting to RS232, RS422, or RS485 instruments, all while maintaining high data transfer rates up to 230,400 baud. Additionally, the NGX-1-ISO features advanced configuration options through the Actisense Toolkit, allowing users to set transmission and reception rates, Tx/Rx lists, and other parameters for optimized performance. Its multiple diagnostic LEDs and built-in safety features ensure reliable operation and easy troubleshooting. Constructed from flame-retardant polycarbonate and PBT end caps, the device is designed to withstand harsh marine environments. With a compact form factor and a lightweight design, it easily integrates into existing systems without adding significant weight or bulk. The NGX-1-ISO is certified for marine use, tested for high voltage tolerance, and equipped with multiple isolation layers to protect your network from electrical faults. Whether upgrading existing systems or designing new installations, this gateway provides a dependable, flexible solution for marine data communication, diagnostics, and system integration.
Features:
- Supports full NMEA 2000 network data visualization on Actisense NMEA Reader with support for all PGNs
- Provides extensive NMEA 0183 data conversion library for reliable bi-directional translation
- Easily interfaces with PC applications such as TimeZero and OpenCPN for navigation and data management
- Configurable via Actisense Toolkit for transmission lists, rates, and detailed system setup
- Connects legacy NMEA 0183 instruments with NMEA 2000 networks, reducing upgrade costs
- Includes a vital diagnostic tool for NMEA 2000 network troubleshooting
- OPTO-isolated input and ISO-Drive output ensure safe RS232/RS422 interfacing
- Supports data transfer rates up to 230,400 baud for high-speed communication
- Multiple diagnostic LEDs for easy system monitoring and troubleshooting
- Provides a fire-retardant polycarbonate housing with flame-retardant PBT end caps for durability
- Galvanic isolation between NMEA 2000, USB, and ISO ports ensures electrical safety
- Compact, lightweight design suitable for tight marine spaces
- Certified and tested for high voltage tolerance and electrical safety in marine environments
