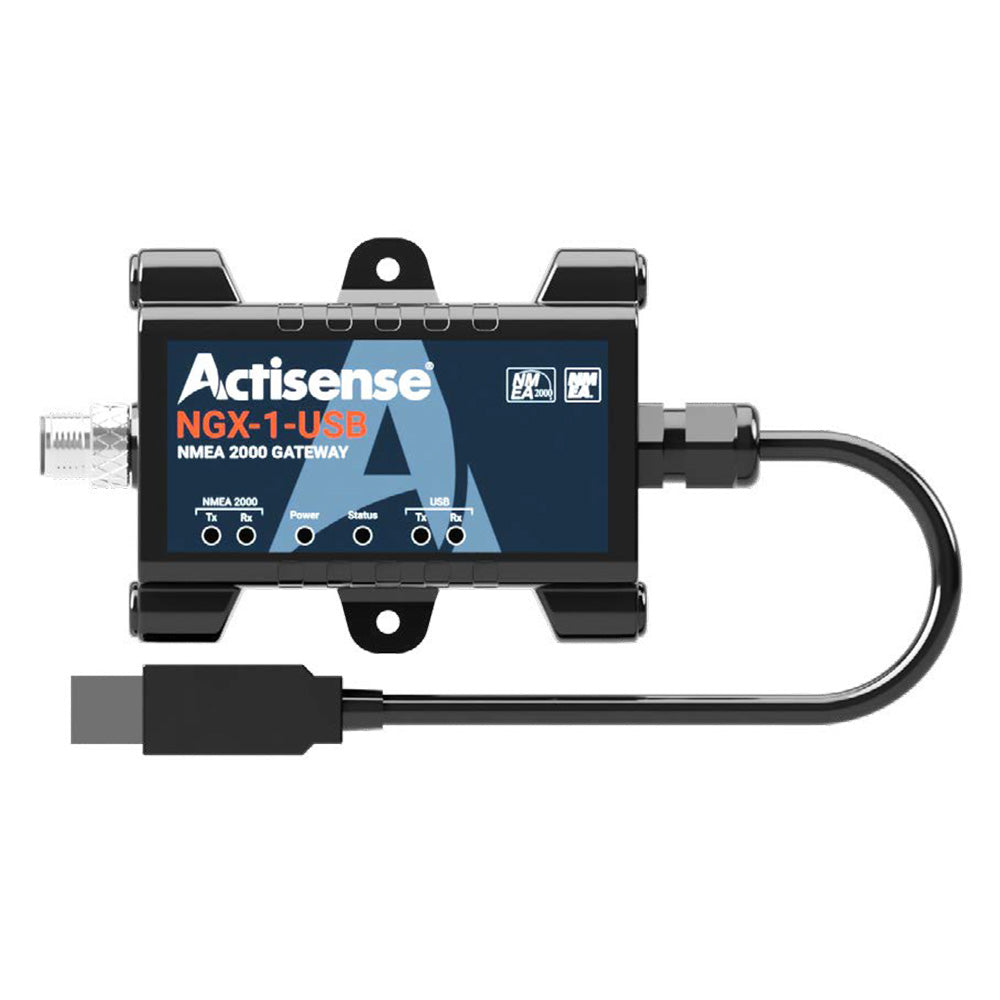

0183 to N2K Gateway with PC Interface, USB Connection
Intelligent Gateway technology enables PC interfacing and NMEA data conversion
The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.
Configure the NGX-1 to operate as an NMEA 2000 <> PC interface, or as a bi-directional NMEA 0183 <> NMEA 2000 conversion gateway.
Features:
- View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
- View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
- Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
- Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
- Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
- Vital NMEA 2000 diagnostic tool
- Fully isolated to prevent dangerous ground loops
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Multiple diagnostic LEDs
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
Technical Specifications
Power Supply
- Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
- Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
- Load Equivalent Number (LEN) - 2
NMEA 2000 Port
- Speed / Baud Rate - 250kbps
- Connectivity - M12 Male (A coded)
USB Port
- Compatibility - USB 1.1, 2.0 and 3.0
- Speed / Baud Rate - 4800 to 230400 Baud
- Connectivity - Male type A plug moulded onto cable
- Cable Length - 1.8m
Isolation
- NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
- NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V
Mechanical
- Housing Material Body - Flame retardant Polycarbonate
- Housing Material End Caps - Flame retardant PBT
- Weight - 113g
Approvals and Certifications
- NMEA 2000 - NMEA 2000 Certified
- NMEA 0183 - Meets IEC 61162-1 61162-2 Requirements
- RoHS and REACH - Compliant
- Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
- EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
- Environmental Protection IP67
- Operating Temperature -25C to +70C
- Storage Temperature -30C to +70C
- Recommended Humidity 0 to 93% RH @ 40C
- Guarantee 3 years, extended to 5 years upon registration
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Actisense NGX-1-USB is an advanced, multi-function gateway designed to facilitate seamless integration between NMEA 2000 and NMEA 0183 networks. This versatile device combines the capabilities of previous models into a single, cost-effective solution, enabling boat owners and marine professionals to manage data conversion and PC interfacing efficiently. Its intelligent design supports bi-directional communication, allowing users to convert and display data across different marine navigation systems with ease.
The NGX-1-USB features a robust NMEA 2000 port operating at 250 kbps and a USB port supporting data speeds up to 230,400 baud. These interfaces provide compatibility with a wide range of legacy and modern marine instruments, making it easier to upgrade existing systems without costly replacements. Its galvanic and Hi-Pot tested isolation ensures safe operation by preventing ground loops, while its compact design and durable flame-retardant housing make it suitable for demanding marine environments.
Equipped with advanced configuration options via the Actisense Toolkit, the NGX-1-USB allows users to customize Tx/Rx data lists, set transmission rates, and perform firmware updates directly through the device. Its support for Fast Heading at 10Hz and multiple diagnostic LEDs enhances operational visibility and troubleshooting. Additionally, the device supports popular PC chartplotter applications like TimeZero and OpenCPN, enabling comprehensive data visualization. Its compatibility with Actisense EMU-1, NGW-1, and other products facilitates network diagnostics and system upgrades, providing a complete solution for marine data management. Certified to meet international standards and IP67 rated for environmental protection, the NGX-1-USB ensures reliable performance in harsh conditions, backed by a three-year warranty extended to five upon registration.
Features:
- Supports bi-directional NMEA 2000 and NMEA 0183 data conversion
- View all NMEA 2000 network data on Actisense NMEA Reader
- Convert and display NMEA 0183 data with extensive library
- Easy PC interface for popular navigation applications like TimeZero and OpenCPN
- Configurable via Actisense Toolkit for tailored data management
- Galvanic and Hi-Pot tested electrical isolation for safety
- Supports high-speed data transfer up to 230,400 baud
- Supports Fast Heading updates at 10Hz
- Multiple diagnostic LEDs for system status monitoring
- IP67 rated for environmental durability
- Compact and lightweight design with flame-retardant housing
- Complies with international marine and electrical safety standards
- Enables upgrade of legacy NMEA 0183 instruments to NMEA 2000
- Facilitates multi-signal multiplexing on the NMEA 2000 bus
- Allows detailed network diagnostics and firmware flashing
