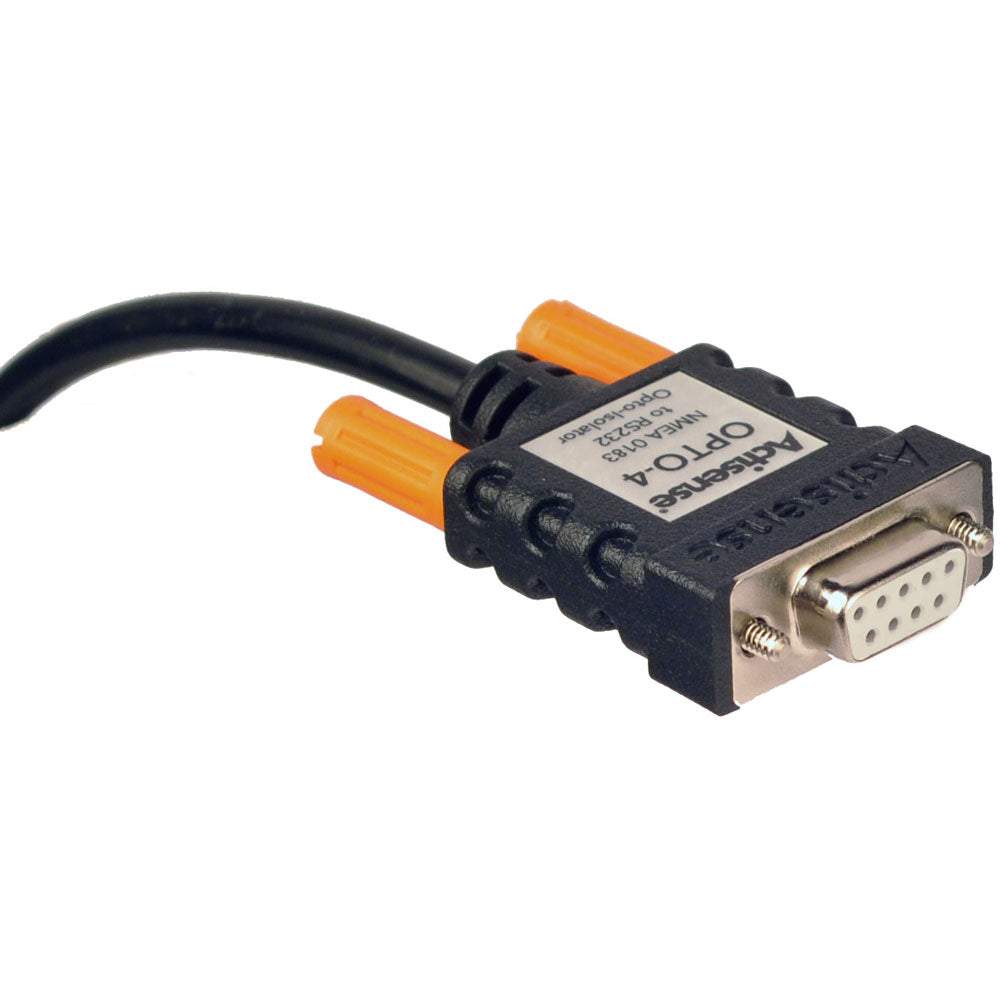

Actisense NMEA 0183 PC Opto-Isolator Cable with DB9 Female Connector

NMEA 0183 PC OPTO-Isolator Cable, RS232 DB9 Female, Shielded (Isolated to PC)

Add isolation to an RS232 port to protect against ground loops. The OPTO-4 provides a safe and low cost way of connecting an RS422 (NMEA 0183) system to an RS232 (PC COM port) system, or any other device with a standard RS232 9-pin port.

The OPTO-4 provides comprehensive galvanic OPTO-isolation to protect the PC input/receiver, plus important spike suppression to improve the PC output/transmitter protection. Initially designed for systems wishing to receive NMEA 0183 data without the risk of ground loop damage, the flexible OPTO-4 can be used to interface any RS422 and standard RS232 connection, whilst powering itself from the RS232 port, making installation simple and very quick.

The Actisense opto isolator design integrates an over-molded case for excellent water resistance and a small footprint for installation into tight spaces.

Features:

• One RS422 OPTO-isolated input
• One RS422 (NMEA 0183) output
• Up to 115200 baud
• Port powered
• Shielded cable and case
• Protects PC input/receiver from damage
• Water resistant cable.
• Ruggedized over-molded case suitable for harsh environment
• Quick and easy to install

Technical Specifications:

Electrical

• NMEA Listener / Input Isolation - 2kV Opto-Isolation between Red / Black NMEA Input Pair and all other Connections
• NMEA Listener / Input Voltage - +/-15V Continuous Maximum, +/-35V Max < 1 Second
• NMEA Listener / Input Signal Thresholds - Logic 0 +2V to +15V, Logic 1-15V to 0V
• NMEA Talker / Output Voltage Current - Dependent on Host RS232 Interface. Typically +/-5V to +/-15V @ 10mA Max
• RS232 Voltage on Host - +/-7V to +/-15V
• RS232 Port Total Current Consumption - 2mA to 5mA depending on RS232 Voltage
• Speed / Baud Rate - 4800 to 115200 Baud

Mechanical

• Housing Material - PVC Black
• Thumb Screw Material - PVC Orange
• Screw - Steel, Nickel Plated, M2.8 Thread
• DB9 Connector - 9 Pin Female
• Cable Length - 1.5m
• Cable Wire - 22AWG (17/34AWG) Tinned Stranded Copper
• Cable Jacket - PVC
• Shield - Internal Copper Foil Shield
• Cable Outer Diameter - 5.5mm

Approvals and Certifications

• Operating Temperature - -20C to +70C
• Electrical Specification - Meets IEC 61162-2
• Weight - 100g
• Guarantee - 3 Years
• UL Certification - Cable E137250

The Actisense OPTO-4 is a shielded, water-resistant NMEA 0183 PC opto-isolator cable designed to protect your computer's RS232 port from ground loop issues and electrical spikes. Its galvanic isolation ensures that signals between your NMEA 0183 system and PC are safely separated, reducing the risk of damage and signal interference. This cable features an integrated, rugged over-molded case suitable for harsh environments, making it ideal for marine, industrial, or outdoor applications. With a length of approximately 5 feet, it provides flexible installation options while maintaining a compact footprint for tight spaces. The cable is powered directly from the RS232 port, simplifying setup and eliminating the need for external power sources. It supports communication speeds up to 115,200 baud, ensuring compatibility with most NMEA 0183 devices and systems. The cable's internal copper foil shield and PVC jacket enhance durability and water resistance, making it suitable for demanding conditions. Designed with a steel, nickel-plated M2.8 screw and a 9-pin female DB9 connector, this product ensures reliable connections with standard RS232 interfaces. The device complies with IEC 61162-2 standards and operates effectively across temperatures from -20°C to +70°C, ensuring consistent performance in diverse environments. Backed by a three-year warranty, the Actisense OPTO-4 provides a cost-effective, easy-to-install solution for safeguarding your PC's communication port while maintaining reliable data transmission between NMEA 0183 systems and computers.

Features:

• One RS422 OPTO-isolated input for enhanced signal protection

• Supports RS422 (NMEA 0183) output for reliable data transfer

• High-speed communication up to 115,200 baud

• Port powered for easy installation without external power supplies

• Shielded cable and rugged over-molded case for water resistance and durability

• Protects PC input/receiver from electrical damage and ground loops

• Compact design suitable for tight installation spaces

• Electrical isolation with 2kV opto-isolation to prevent ground loop issues

• Operates within a temperature range of -20°C to +70°C

• Meets IEC 61162-2 standards, ensuring compatibility with marine communication systems
