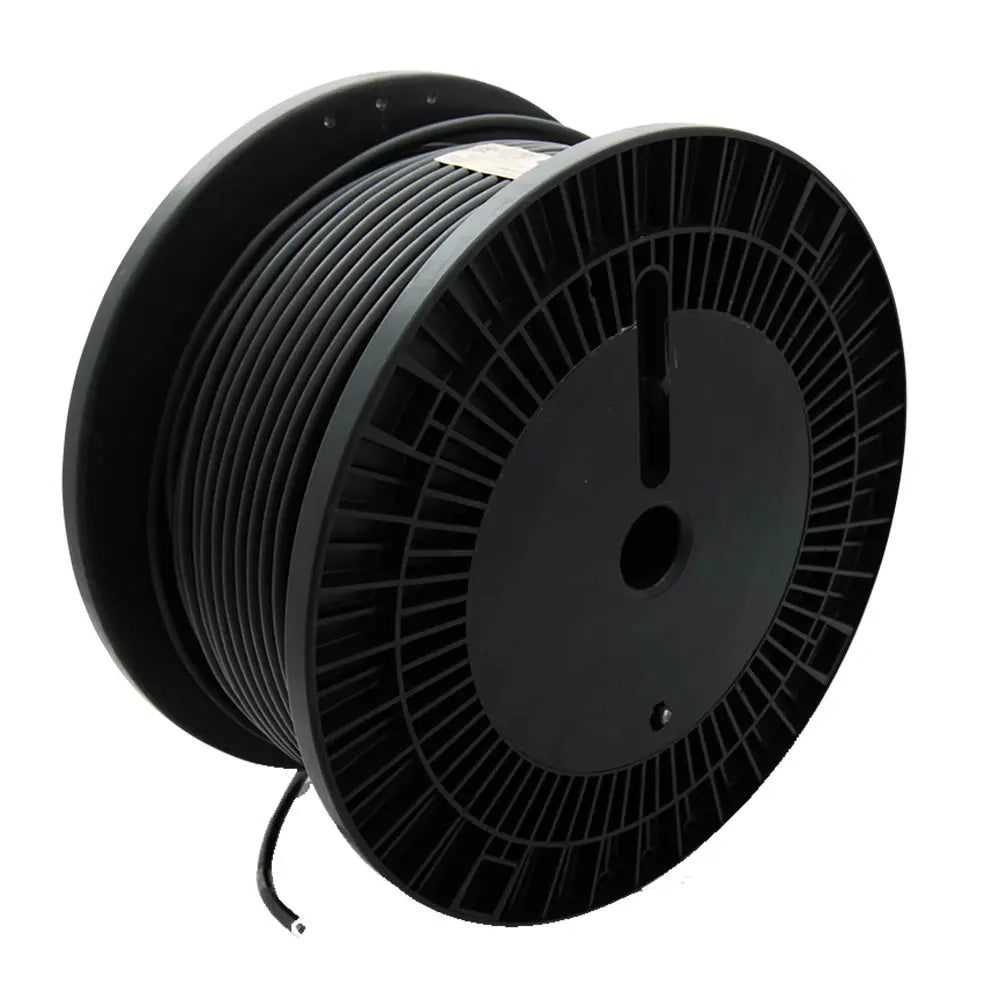

NMEA2000 Micro Bulk Cable Reel - 100M
Create or extend an NMEA 2000 backbone of flexible lengths to suit any installation.
The Actisense NMEA 2000 Bulk Lite cable is available in 100-meter reels and is ideal for use with the Actisense QNB-1 Quick Network Block or Field Fit Connectors (FFC).
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.
The maximum permitted length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters. To help with this limitation, Actisense has drop cable assemblies in varying lengths from 0.25 meters to 6 meters.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Cable Specifications:
Power Pair Specifications:
Data Pair Specifications:
Drain Specifications:
Technical Specifications:
The Actisense NMEA2000 Micro Bulk Cable Reel provides a reliable solution for creating or extending NMEA 2000 networks up to 100 meters in length. Designed with flexibility in mind, this reel features five wires within a waterproof jacket, including power, ground, two signal lines, and a drain wire, ensuring robust data transmission in marine environments. The cable's construction with 37 AWG tinned copper braid and AL Mylar shielding effectively minimizes RFI interference and emission, safeguarding signal integrity for critical navigation and communication systems. This cable is compatible with Actisense QNB-1 Quick Network Blocks and Field Fit Connectors, offering ease of installation and scalability for complex setups. Its rated voltage of 60VDC and current capacity of 3A make it suitable for demanding marine applications, while the 0.8mm PVC jacket ensures durability against harsh conditions. Power and data pairs are color-coded for straightforward wiring, with the power conductors in red and black and data conductors in blue and white, facilitating quick identification during installation. The reel includes 100 meters of cable, weighing approximately 17 pounds, and is designed to support backbone configurations with a maximum drop length of 6 meters. Additional drop cable assemblies in various lengths are available to optimize network design, ensuring compliance with length restrictions and maintaining optimal performance. Operating temperature range from -25°C to +75°C allows use in diverse marine environments, and the cable's high-quality construction ensures long-lasting performance. For detailed installation instructions and technical specifications, refer to the manufacturer’s manual linked online. This product is ideal for marine electronics professionals seeking a dependable and flexible backbone solution for NMEA 2000 networks.
