SKU:108174

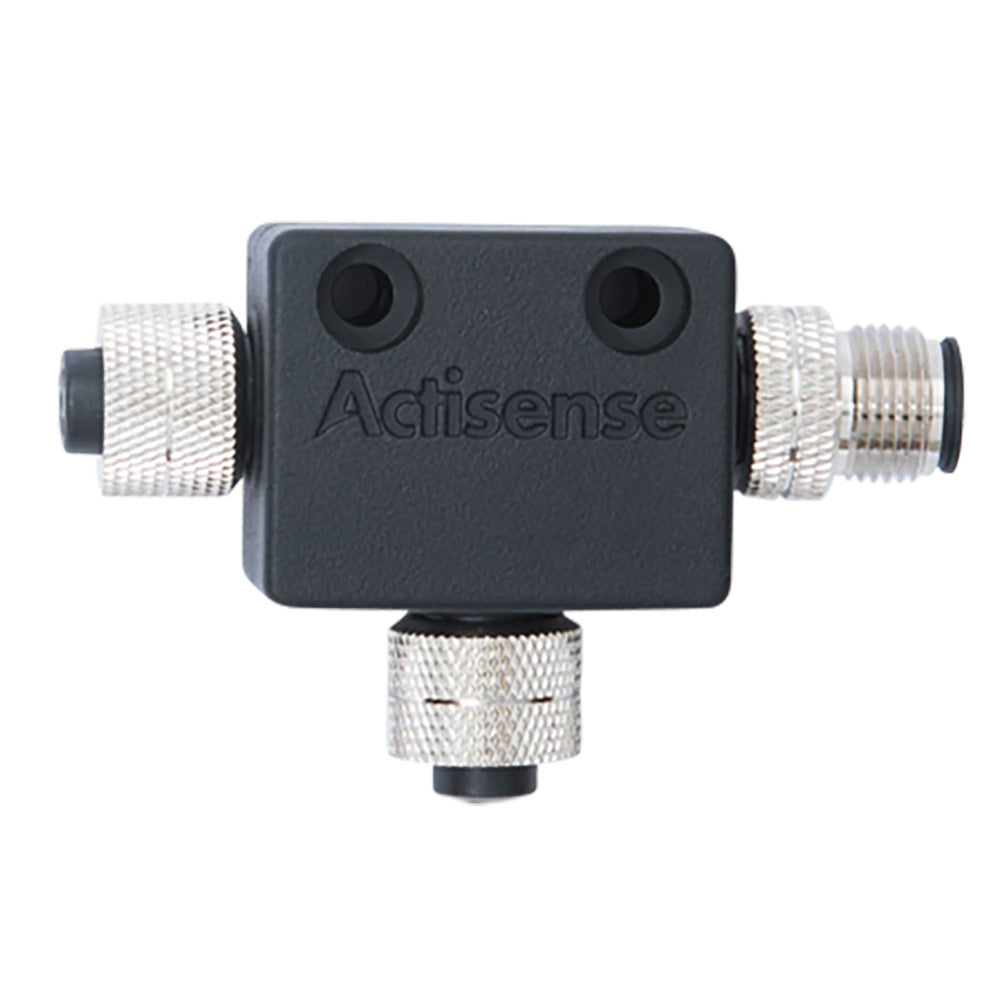

NMEA2000 Micro T Connector
Quality-engineered connectors are shaped to allow easy and secure connections.
Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.
The Actisense NMEA 2000 T-Piece is for use where a drop or port is required from the NMEA 2000 backbone to connect another device.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
The Actisense NMEA2000 Micro T Connector is a high-quality, engineered solution designed for secure and reliable connections within NMEA 2000 networks. Featuring two female and one male connector, this T-piece allows for easy integration of additional devices into your backbone system, making it ideal for marine, industrial, and other data communication applications. Its design accommodates field-fit connectors, ensuring versatile and straightforward installation even in challenging environments. Constructed with durable materials and precise engineering, the connector supports seamless data transfer and power delivery across your network.
The connector is rated for 4 amps and 60 volts DC, making it suitable for a wide range of power and signal requirements. The male contact is crafted from brass with a gold-plated finish for enhanced conductivity and corrosion resistance, while the female contacts are made of phosphor bronze with a gold coating, ensuring reliable performance over time. The housing features PA66 (30% glass-filled) material in black, providing robustness and resistance to harsh conditions. The M12-male thread and standard M12-A polarization ensure proper mating and secure connections, complemented by a brass, nickel-plated screw cap and a black rubber O-ring seal for IP67 protection when mated. The entire assembly weighs approximately 1.05 ounces and is rated for operation across temperatures ranging from -25°C to +70°C, with storage capabilities from -40°C to +85°C.
Designed by Actisense, a leader in marine and industrial interconnect solutions, this connector offers exceptional durability and ease of use. Whether you're expanding your network or replacing existing components, the NMEA2000 Micro T Connector provides a reliable connection point for your NMEA 2000 backbone, supporting seamless data flow and power distribution in demanding environments. For detailed installation instructions and technical information, consult the owner’s manual available online. Please note that this product may not be returned to the point of purchase, and direct contact with the manufacturer is recommended for any issues or concerns.
Features:
