SKU:111804

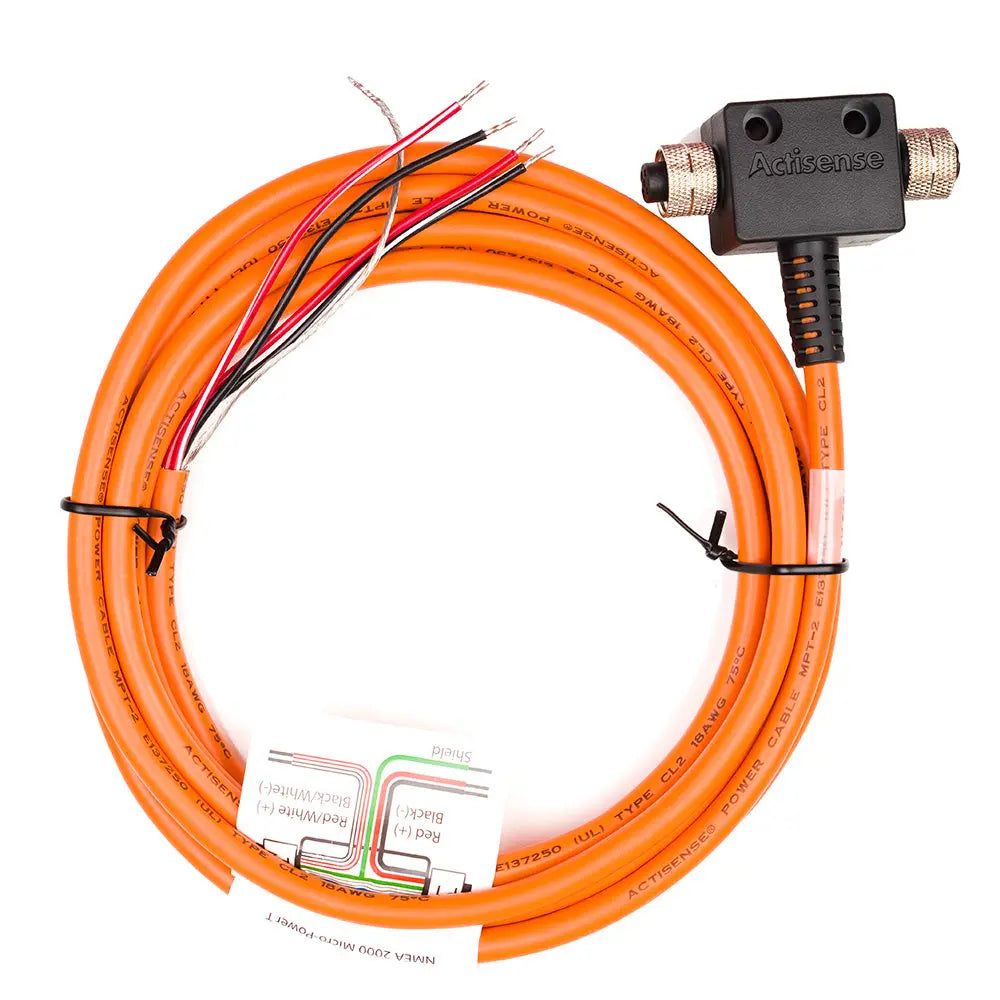

NMEA2000 Micro T-Piece with Female Connectors 3M UL Certified Cable
The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.
Now with improved strain relief!
The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable plug and play connectivity.
The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.
The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.
Technical Specifications:
Electrical
Mechanical
Approvals and Certifications
The Actisense A2K-MPT-2 is a compact and reliable solution for powering your NMEA 2000 network with ease. Designed with high-quality, engineered connectors, this micro T-piece features two female connectors that facilitate straightforward plug-and-play connectivity. Its improved strain relief ensures durability and secure connections, making it ideal for marine and industrial applications where dependable network power distribution is critical. The included 3-meter UL-certified cable offers flexible installation options, allowing seamless integration into existing systems without concern for compliance or safety standards. Constructed with marine-grade materials, the T-piece features a robust design capable of handling up to 4A current per feed and operates safely within a voltage range up to 60VDC. The male and female components are crafted with corrosion-resistant materials, including phosphor bronze contacts gold-plated for optimal conductivity and longevity. The housing and connectors are rated IP67 when mated, providing excellent protection against dust and water ingress, suitable for harsh environments. The cable's outer diameter and jacket materials are selected to withstand temperature extremes from -20°C to +70°C, ensuring reliable operation in diverse conditions. This product is fully compatible with Devicenet systems and adheres to rigorous safety and quality standards, backed by UL certification. Whether used in marine, industrial, or automation settings, the Actisense Micro T-Piece offers a secure, efficient, and versatile method for powering and connecting NMEA 2000 networks, ensuring your system remains robust and reliable. The included detailed manual provides guidance for installation and maintenance, supporting seamless integration into your existing setup.
Features:
