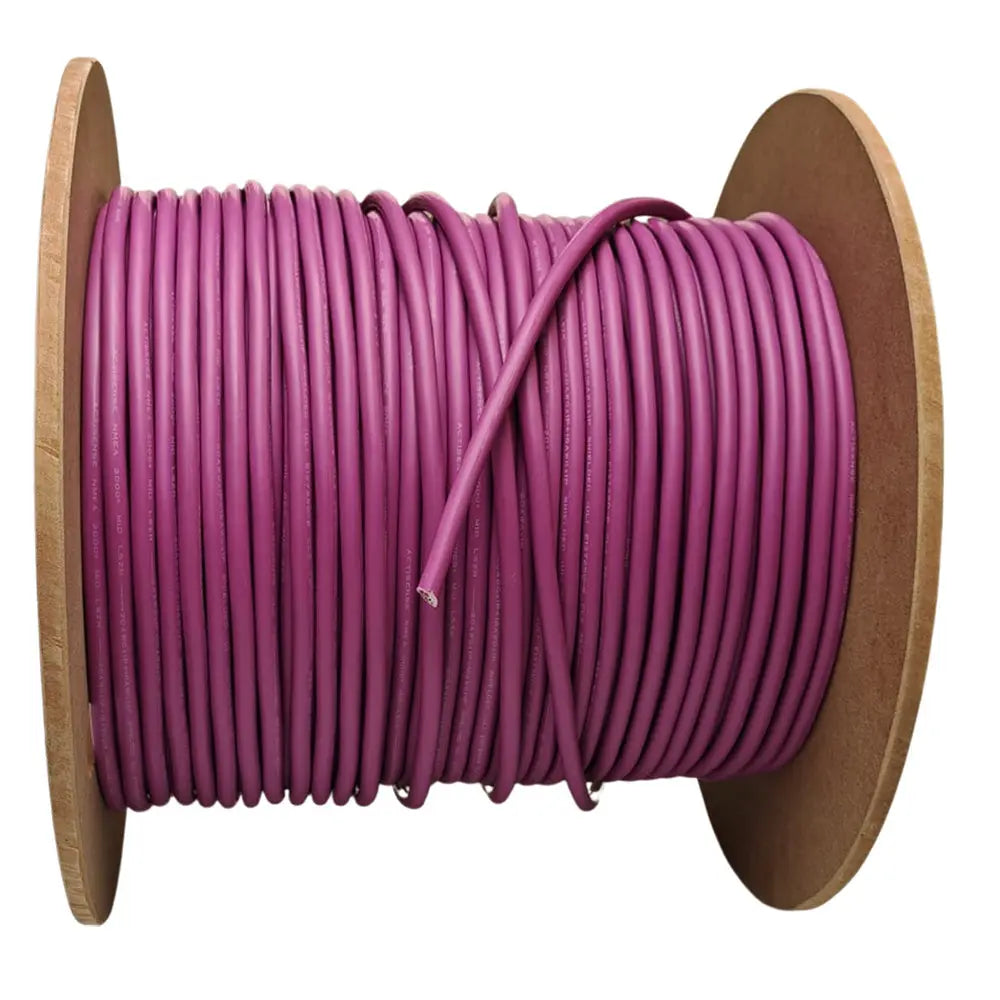

NMEA2000 Mid Bulk Cable Reel - 100M

This cable can be used to create or extend an NMEA 2000 network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.

The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000 approved.

The NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.

NMEA 2000 Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.

Technical Specifications:

Cable

• Rated Voltage - 60V DC
• Rated Current - 8A
• Braid Material - 37 AWG tinned copper
• Braid Coverage - 65% Nom.
• Jacket Material - LSZH Purple (RAL4008)
• Jacket Outer Diameter - 8.2mm
• Overall DCR (braid + tape + drain) - 3.2 / 1000ft (10.5m/M)
• Reel Length - 100m
• Reel Weight - 13-14kg

Power Pair

• Conductor - 16 AWG (19-strand tinned copper)
• Insulation - 0.17 mm Nom. LSZH
• Diameter - 1.85mm Nom.
• Colors - Red Black
• Shield - AL Mylar tape over pair
• DC Resistance - 4.26 / 1000ft (14m/M)

Data Pair

• Conductor - 20 AWG (19-strand tinned copper)
• Insulation - 0.79 mm Nom. Foam PE
• Diameter - 2.49mm Nom
• Colors - Blue White
• Shield - AL Mylar tape over pair
• Impedance - 120 10% @ 1MHz
• DC Resistance - 10.9 / 1000 ft (35.8m/M)
• Attenuation @ 125 kHz - 0.29dB / 100ft
• Attenuation @ 500 kHz - 0.50dB / 100ft
• Attenuation @ 1 MHz - 0.70dB / 100ft

Drain

• Conductor - 20 AWG (19-strand tinned copper)
• DC Resistance - 10.9 / 1000ft (35.8m/M)

Approvals and Certifications

• Operating Temperature - -20C to +70C
• Storage Temperature - -40C to +85C
• NMEA 2000 Approved
• RoHS Compliant
• UL Certified (E137250), (UL13)
• LSZH to IEC 60754-1/2 IEC 61034-1/2

The Actisense NMEA2000 Mid Bulk Cable Reel provides a reliable and flexible solution for extending or building NMEA 2000 networks in marine and industrial applications. This 100-meter reel features a waterproof design with five internal conductors, including power, ground, and signal wires, ensuring stable data transmission and power delivery. The cable's LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing smoke and toxic fumes, making it suitable for enclosed environments. Its high-quality construction and NMEA 2000 approval guarantee compatibility and performance across various network setups.
Designed with safety and durability in mind, the Actisense NMEA2000 cable includes a drain wire connected to the shield, providing protection against external Radio Frequency Interference (RFI) and minimizing RFI emissions. The cable's core components include a 37 AWG tinned copper braid with 65% coverage for effective shielding and two data pairs with 20 AWG tinned copper conductors for signal integrity. The power pair uses 16 AWG conductors capable of handling up to 8A, while the data pair is optimized for impedance at 120 ohms, ensuring data accuracy over long runs. The overall design supports backbone lengths up to 250 meters, making it ideal for extensive network configurations.
Manufactured to meet strict safety standards, the Actisense NMEA2000 cable is UL certified, RoHS compliant, and rated for operating temperatures from -20°C to +70°C. The reel's robust construction and high-quality materials ensure reliable performance in demanding marine environments. Whether you are creating a new network or extending an existing one, this cable offers exceptional flexibility, safety, and performance, making it a trusted choice for professional marine and industrial data networks.

Features:

• Flexible 100-meter reel for large-scale NMEA 2000 network installations

• Waterproof construction with LSZH jacket for enhanced safety

• Five internal conductors: power, ground, two signal pairs, and drain wire

• Supports backbone lengths up to 250 meters for extensive network setups

• High-quality tinned copper conductors and 37 AWG braid for effective shielding

• Rated voltage of 60V DC and current capacity up to 8A

• UL certified, RoHS compliant, and NMEA 2000 approved for reliable performance

• Designed for marine environments with operating temperature range from -20°C to +70°C
