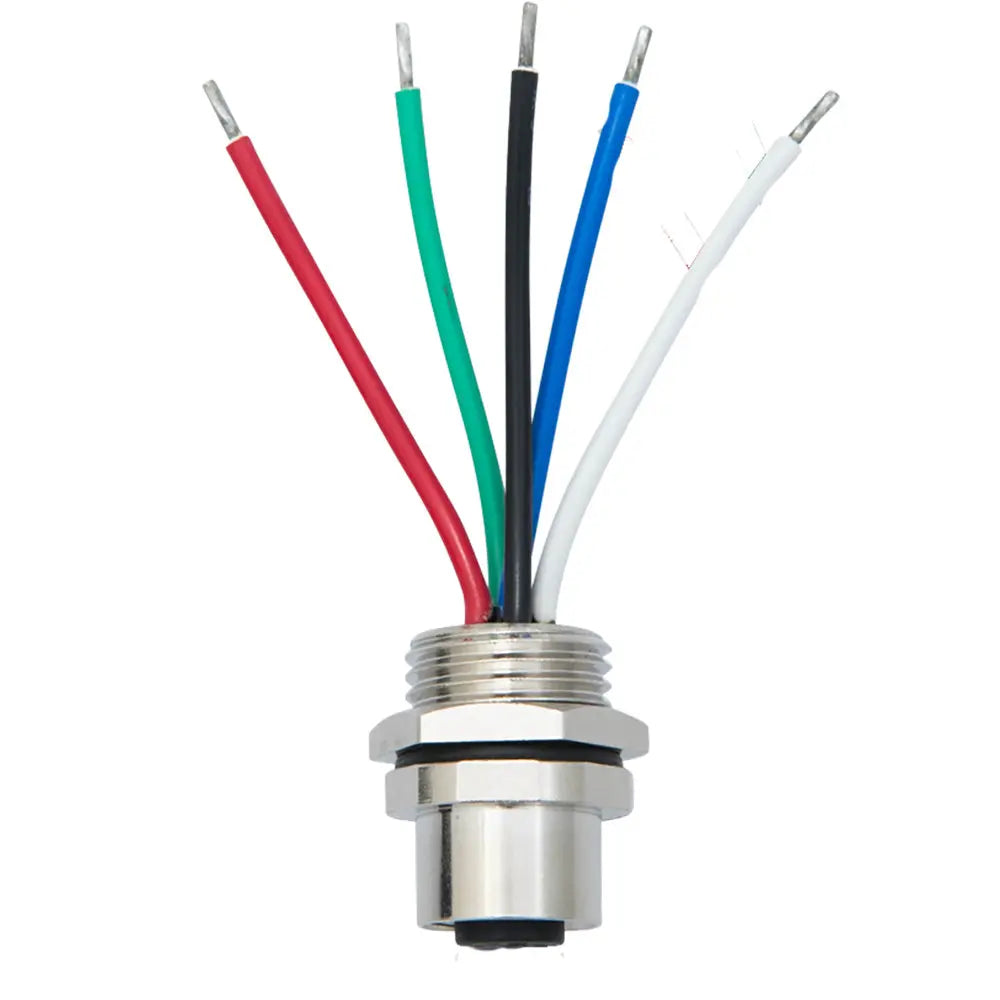

Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female Connector (Part A2K-PMW-F)

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated
• Contact Carrier - Nylon GF
• Contact Polarization - Standard M12-A-Polarization
• Mating Thread - M12
• Housing - Brass, nickel-plated
• Mounting Thread - PG9
• Mounting Nut - Brass, nickel plated - PG9
• Mounting Hole Diameter - 15.3mm
• Wires - 18 AWG (stripped and tinned)
• Wire Jacket - PVC
• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25C to +90C
• Connector Specification - Meets IEC61076-2-101

The Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female connector offers a reliable and waterproof solution for marine electronics installations. Designed for panel-mount applications, this connector enables NMEA 2000 network connections through watertight bulkheads or panels, ensuring the integrity of your data link even in harsh marine environments. Its waterproof seals provide IP67 protection when mated, safeguarding the connection against water ingress and environmental factors. Compatible with Actisense QNB-1 units, the female connector can replace existing drop glands for a quick and secure pluggable connection, simplifying setup and maintenance. Built with high-quality brass housing and gold-plated brass contacts, the connector ensures excellent electrical conductivity and durability. The nylon contact carrier and nickel-plated mounting nut contribute to its robust mechanical performance, making it suitable for demanding marine applications. It supports up to 4A of current and operates at 60VDC, conforming to IEC61076-2-101 standards to meet industry safety and performance requirements. The wiring features 18 AWG stranded, tinned copper wires with PVC insulation, providing flexibility and corrosion resistance. Its compact weight of approximately 0.8 ounces makes it an unobtrusive addition to your vessel's electrical system. Whether you’re upgrading an existing installation or designing a new one, this connector ensures a secure, waterproof, and industry-compliant connection for your NMEA 2000 network. For detailed installation instructions, refer to the official manual available [here](https://productimageserver.com/literature/ownersManual/102780OM.pdf). This product is designed to withstand operating temperatures from -25°C to +90°C, ensuring reliable performance across various marine conditions, and it meets all necessary certifications for marine safety and durability.

Features:

• Waterproof IP67 protection when mated, suitable for harsh marine environments

• Panel-mount design allows installation through watertight bulkheads or panels

• Gold-plated brass contacts ensure optimal electrical conductivity

• Supports up to 4A current at 60VDC for reliable power and data transfer

• High-quality brass housing with nickel plating enhances durability

• Compatible with Actisense QNB-1 for quick pluggable connections

• Wires are 18 AWG stranded, tinned copper with PVC insulation for flexibility and corrosion resistance

• Meets IEC61076-2-101 standards for industry compliance

• Operates effectively within a temperature range of -25°C to +90°C

• Lightweight design at approximately 0.8 ounces for unobtrusive installation
