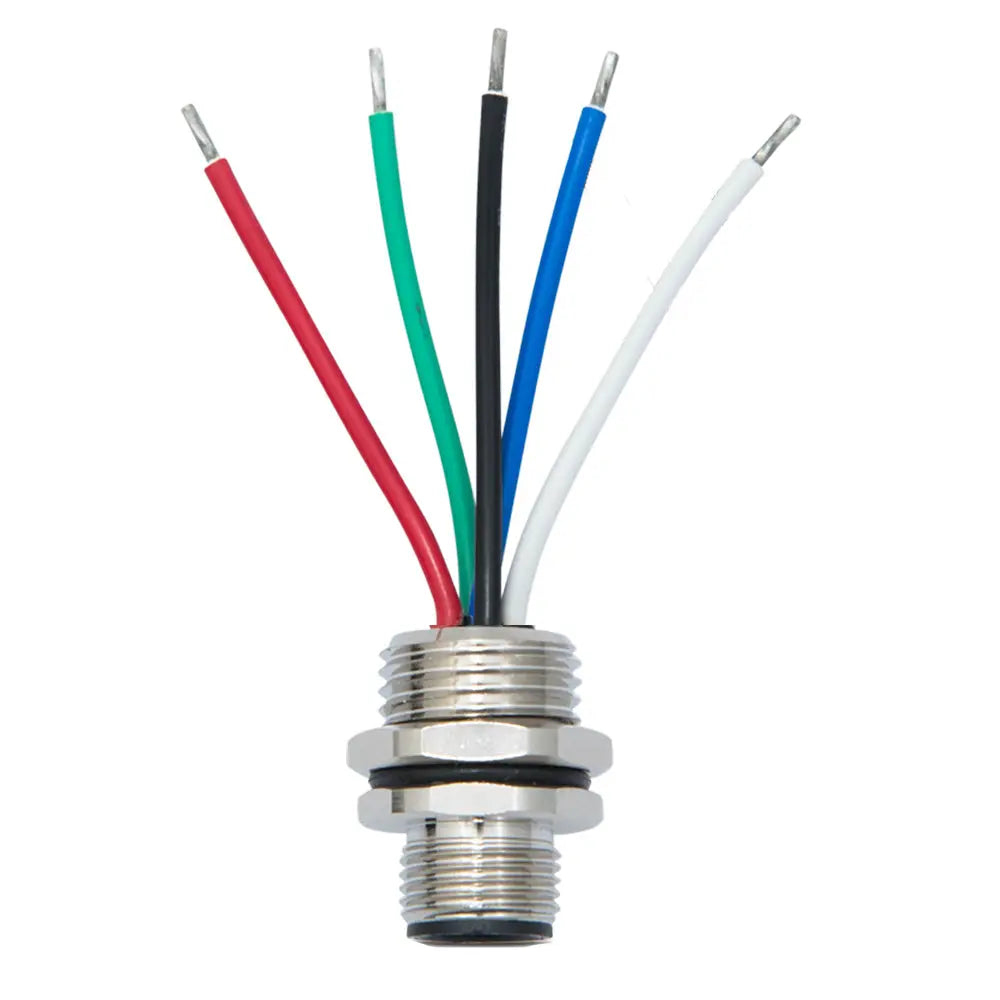

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin Male Connector (Part A2K-PMW-M)

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated
• Contact Carrier - Nylon GF
• Contact Polarization - Standard M12-A-Polarization
• Mating Thread - M12
• Housing - Brass, nickel-plated
• Mounting Thread - PG9
• Mounting Nut - Brass, nickel plated - PG9
• Mounting Hole Diameter - 15.3mm
• Wires - 18 AWG (stripped and tinned)
• Wire Jacket - PVC
• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25C to +90C
• Connector Specification - Meets IEC61076-2-101

The Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin Male Connector offers a robust and waterproof solution for NMEA 2000 network installations. Designed for panel mounting through watertight bulkheads, this connector ensures a secure and reliable connection even in harsh marine environments. Its waterproof seals prevent moisture ingress, maintaining the integrity of your NMEA 2000 network and safeguarding sensitive electronics from water damage. This connector is an ideal replacement for existing drop glands on the Actisense QNB-1, enabling quick and easy creation of pluggable NMEA 2000 connections without complex wiring adjustments. The high-quality construction features brass, nickel-plated housings and gold-plated brass contacts, ensuring excellent conductivity and corrosion resistance. With a rated current of 4A and a maximum voltage of 60VDC, it is suitable for demanding marine and industrial applications. The connector complies with IEC61076-2-101 standards and features an IP67 rating when mated, offering protection against dust and water ingress. Its compact design includes a mounting thread of PG9 and a mounting hole diameter of approximately 0.6 inches, making installation straightforward. The connector utilizes 18 AWG stranded and tinned wires with PVC jackets, providing flexibility and durability in wiring. Operating across a temperature range of -25°C to +90°C, this connector is built to perform reliably in various environmental conditions. Whether upgrading existing systems or designing new installations, the Actisense NMEA2000 Micro 5-Pin Male Panel Mount Connector delivers a dependable, waterproof connection solution for marine and industrial applications.

Features:

• Waterproof IP67 sealing ensures protection against water and dust when mated

• Panel mount design facilitates secure installation through watertight bulkheads

• Brass, nickel-plated housing for corrosion resistance and durability

• Gold-plated brass contacts for optimal electrical conductivity

• Rated for 4A current and 60VDC voltage, suitable for demanding environments

• Standard M12-A-Polarization with M12 mating thread for compatibility

• Mounting thread PG9 with a 15.3mm mounting hole diameter simplifies installation

• Includes 18 AWG stranded, tinned wires with PVC jackets for flexible wiring

• Meets IEC61076-2-101 standards for quality and safety

• Operates effectively across temperatures from -25°C to +90°C
