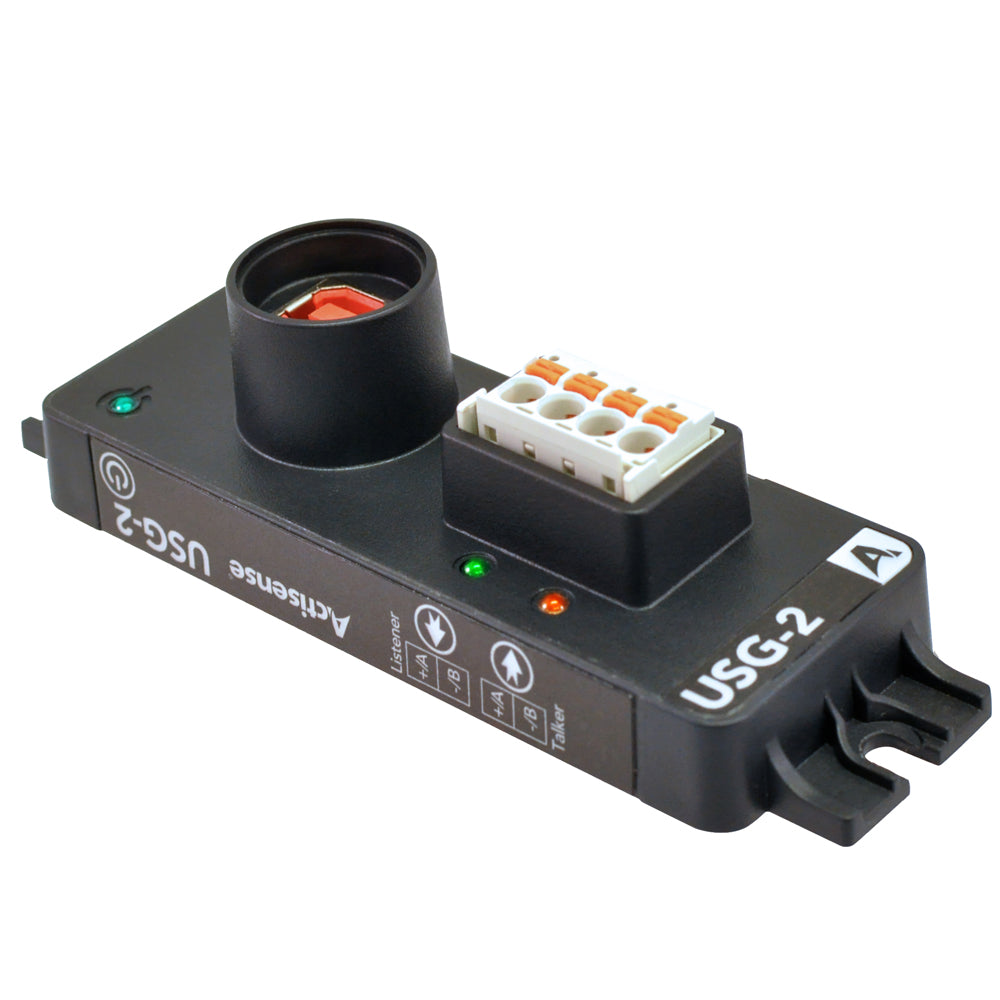

Actisense USG-2 Isolated USB to Serial Gateway for NMEA 0183, RS422, and RS232 Communication

USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 And RS232

The USG-2 ensures safety and reliability when connecting a PC to your NMEA 0183 network.

The USG-2 converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus.

It provides a far safer connection when compared to standard USB to serial converters.

Electrical isolation is provided by the ISO-Drive output and OPTO-isolated input making installation simple and free from ground loops.

The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.

The USG-2 is the safest way to connect a boats data network to an on-board PC.

Features:

• NMEA 0183, RS422 RS232 compatible
• ISO-Drive technology
• Pluggable screwless connector with locking latch strain relief
• Encapsulated electronics
• High retention USB socket
• Diagnostic power LEDs
• Baud rates from 300 to 230400 bps
• Bulkhead mount, with optional DIN rail mount kit
• Pluggable screwless connector
• Inputs outputs protected against over voltage, ESD short circuits
• Simple installation
• Protects PC from damage
• Eliminates ground loops

Technical Specifications:

Power Supply (USB)

• Power Source - Bus powered
• Maximum Bus Current - 50mA

NMEA 0183 Port Talker Listener

• Number of Listener/Input Ports - One isolated NMEA 0183 Listener
• Number of Talker/Output ports - One isolated NMEA 0183 Talker
• Compatibility - Fully NMEA 0183, RS422 RS232 compatible. RS485 Listener compatible
• Galvanic Isolation - NMEA 0183 Talker and Listener Isolation
• Speed/ Baud Rate - 4800 to 230400 bps / baud
• Connectivity - Pluggable screwless connector with locking latch and integrated push-button. Utilizes cage clamp for 12 to 24 AWG wires (both solid and stranded)
• Talker output voltage drive - >2.0V (differential) into 100
• Talker output current drive - 20mA max.
• Talker output protection - Short circuit and ESD
• Listener input voltage tolerance - -15V to +15V continuous
• Listener input protection - Current limited, overdrive protection to 40V DC and ESD protection
• USB Port
• Compatibility - USB 1.1, 2.0 and 3.0
• Speed/ Baud Rate - 300 to 230400 Baud
• Connectivity - High retention type-B receptacle (supplied cable includes a custom USB Type-B sealing plug)
• Withdrawal Force - 1.5Kg
• Drivers (Latest OS) - Windows XP, Vista, 7, 8, 10,11 MAC OS X supplied on CD Actisense website

Mechanical

• Materials - Housing ABS (PA-765), flame retardant to UL94 V-0, PCB encapsulant polyurethane, flame retardant to UL94 V-0, Pluggable screwless connector PPA-GF with CrNi spring and tin plated Ecu contacts
• Mounting - Bulkhead mount (s/s self tapping screws included) or optional DIN rail mount kit available
• Weight - Main body 65g, USB cable 70g
• USB cable length - 2.0m shielded USB Type-A to Type-B cable including custom USB Type-B sealing plug

Approval Certifications

• EMC - EN 60945 (sections 9 10)
• Environmental protection - IP67 (Encapsulated electronics)
• Operating temperature - -25C to +70C
• Storage temperature - -40C to +85C
• Relative Humidity (RH) - 0 to 93% RH
• Guarantee - 3 years (5 Years if registered)

The Actisense USG-2 is a reliable and safe solution for connecting your PC to marine communication networks, including NMEA 0183, RS422, and RS232 protocols. Designed with advanced galvanic isolation technology, the USG-2 ensures protection against ground loops and electrical faults, making it ideal for marine environments where safety and data integrity are paramount. Its robust construction and encapsulated electronics provide durability and stability, even in harsh conditions, while the high retention USB Type-B port guarantees secure connectivity. This gateway converts a standard USB port into a bi-directional serial interface capable of supporting baud rates from 300 to 230,400 bps, facilitating seamless data exchange between your PC and onboard marine systems.

Installation is straightforward thanks to the pluggable screwless connector with a locking latch and strain relief, compatible with 12 to 24 AWG wires. The device is equipped with diagnostic LEDs for easy troubleshooting and supports both bulkhead and optional DIN rail mounting, making it adaptable to various installation environments. The USG-2's NMEA 0183 ports are fully compatible with standard talker and listener configurations, providing galvanic isolation and protection against voltage spikes, ESD, and short circuits. Its power is bus-powered from the USB connection, with a maximum current draw of 50mA, simplifying setup without requiring external power sources.

Built with safety and environmental resilience in mind, the Actisense USG-2 meets EMC standards (EN 60945) and is rated IP67 for environmental protection. It operates efficiently across a wide temperature range from -25°C to +70°C and is suitable for both professional and recreational marine applications. The device is compatible with Windows XP through Windows 11, as well as Mac OS X, with drivers supplied on a CD and available on the Actisense website. With a compact weight of approximately 2.2 ounces and a durable ABS housing, the USG-2 delivers dependable performance in demanding conditions, backed by a three-year warranty, extendable to five years upon registration. Whether upgrading existing systems or implementing new setups, the USG-2 provides a safe, efficient, and easy-to-install interface for marine data connectivity.

Features:

• Compatible with NMEA 0183, RS422, and RS232 protocols

• Galvanic isolation via ISO-Drive technology ensures safety and ground loop elimination

• Pluggable screwless connector with locking latch and strain relief for secure connections

• Encapsulated electronics for durability and protection against environmental factors

• High retention USB Type-B port for reliable data transfer

• Diagnostic power LEDs for easy troubleshooting

• Supports baud rates from 300 to 230,400 bps

• Flexible mounting options including bulkhead and DIN rail

• Input and output protection against over-voltage, ESD, and short circuits

• Bus-powered from USB with a maximum current of 50mA

• Fully compatible with Windows and Mac OS X operating systems

• Certified to EMC standards and rated IP67 for environmental protection

• Operating temperature range from -25°C to +70°C for versatile deployment
