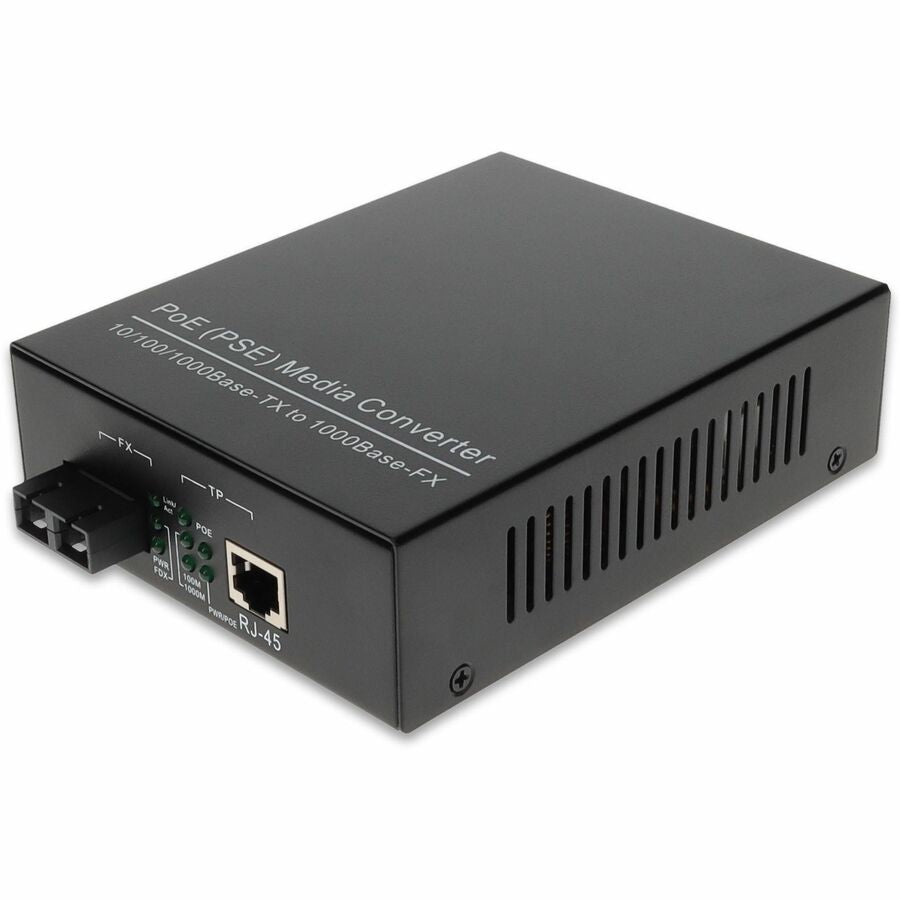

AddOn 10/100/1000Base-TX (RJ-45) to 1000Base-SX (SC) Multi-Mode Fiber Media Converter - 550m POE+

AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) MMF 850nm 550m POE+ Media Converter

The AddOn 10/100/1000Base-TX to 1000Base-SX media converter is an essential device for extending your network's reach over fiber optic cables. Designed to convert standard Ethernet signals from RJ-45 ports to high-speed 1000Base-SX signals via an 850nm multi-mode fiber (MMF) SC connector, this converter enables data transmission over distances up to 550 meters. This capability surpasses the typical 100-meter limit of copper cabling, making it ideal for larger installations or campus environments where extended reach is necessary. Its plug-and-play design ensures straightforward deployment without complex configurations, providing a reliable and cost-effective solution for network expansion. The device supports 10/100/1000Base-TX technology, delivering up to 1 Gbps data transfer rates over twisted pair cables, ensuring high-performance connectivity for demanding applications. It also functions as a Power over Ethernet Plus (PoE+) device, supplying power to IEEE802.3at powered devices (PD) over UTP cables up to 100 meters long, simplifying installation by eliminating the need for separate power supplies. The integrated PSE controller features PD signature sensing and power monitoring, enhancing network safety and efficiency. Additional features include over-current protection and Link Fault Pass-through (LFP), which monitors both fiber and copper ports for signal loss and automatically disables transmission in case of a fault, maintaining network integrity. This media converter is manufactured in China by AddOn and comes with a three-year limited warranty. Its versatile design makes it suitable for a wide range of networking environments, combining fiber optic extension with PoE+ capabilities to support modern infrastructure needs. Whether upgrading an existing network or deploying a new system, this device offers a robust, high-speed, and reliable solution for long-distance fiber connections and power delivery in a compact form factor.

Features:

• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices

• Meets the multiple network connectivity needs of today's network environment with this dual transceiver/media converter

• Supports 10/100/1000Base-TX technology, enabling up to 1000 Mbps data transfer over twisted pair cable
