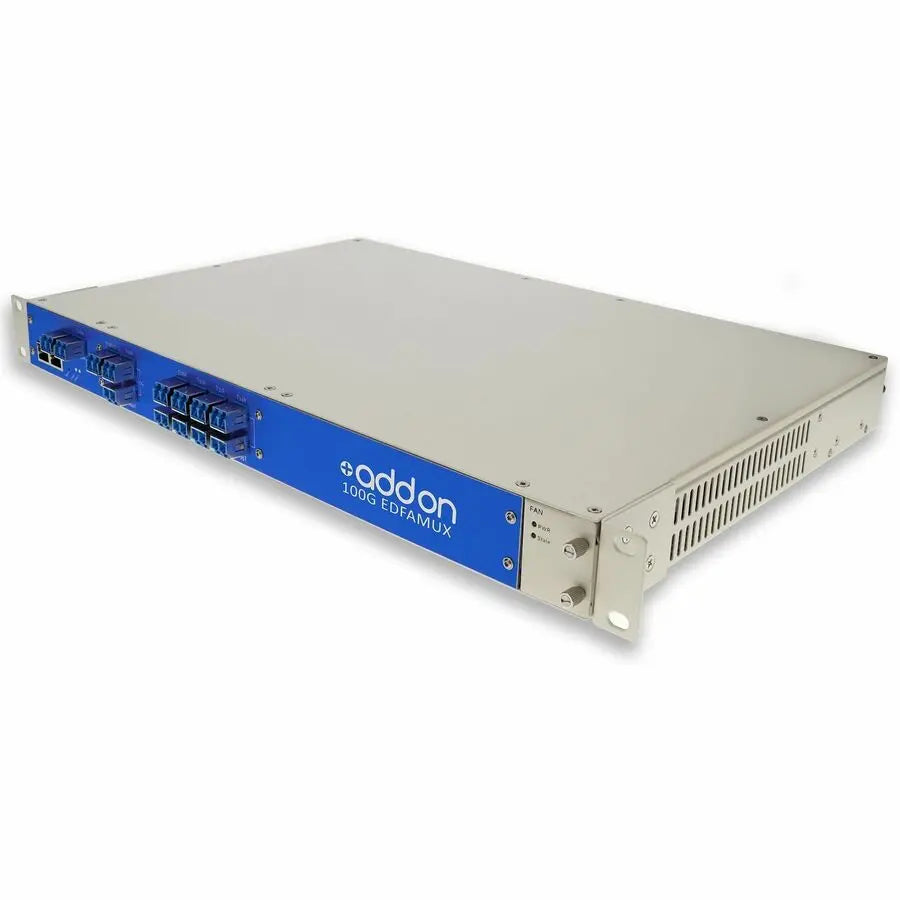

AddOn 8 Channel C-Band Active Data Multiplexer with EDFAs and Tunable Dispersion Compensator (Part ADD-EDFAMUX-8X100G-28-120-DC)

AddOn 8 Channel C-Band Active MUX EDFAs and Tunable Dispersion Compensator, ITU 100GHz, Channels 28-35, 8x100G, 120km, Power Budget 35.5dB (Link Engineering Req'd)

The AddOn 8 Channel C-Band Active Data Multiplexer is designed for high-performance optical networking applications. Featuring built-in EDFAs and a tunable dispersion compensator, this rack-mountable unit efficiently consolidates 8 channels of 100G data streams, enabling transmission distances up to 120 kilometers. Its robust design includes a power budget of 35.5dB, making it suitable for long-haul communications requiring reliable signal amplification and dispersion management. The device offers a comprehensive feature set including a 1% monitor port, dual DC power inputs supporting 100/240V, and integrated LAN and WLAN access for seamless remote monitoring and configuration through its internal webserver. The unit's compact 1U 19-inch form factor ensures straightforward installation within standard server racks, providing a space-efficient solution for complex optical networks. Manufactured in the Netherlands, the AddOn Data Multiplexer combines advanced technology with ease of use, delivering consistent performance across C-Band channels 28 through 35 at the 100GHz spacing. Its lightweight construction, approximately 4.6 pounds, facilitates installation and maintenance, making it an ideal choice for network operators seeking high-capacity, scalable multiplexing solutions. Whether deploying in metropolitan networks or long-haul infrastructures, this multiplexer offers the reliability and flexibility needed for modern optical communication systems.

Features:

• 8 channels of 100G capacity for high-speed data transmission

• Built-in EDFAs for signal amplification over long distances

• Tunable dispersion compensator to optimize signal quality

• Maximum reach of 120 kilometers for extensive network coverage

• Power budget of 35.5dB supports robust transmission performance

• Monitor port providing 1% sampling for network diagnostics

• Dual DC power inputs (100/240V) for reliable power redundancy

• Integrated LAN and WLAN access for remote management

• Compact 1U, 19-inch rack-mountable design for easy installation

• Manufactured in the Netherlands with high-quality standards
