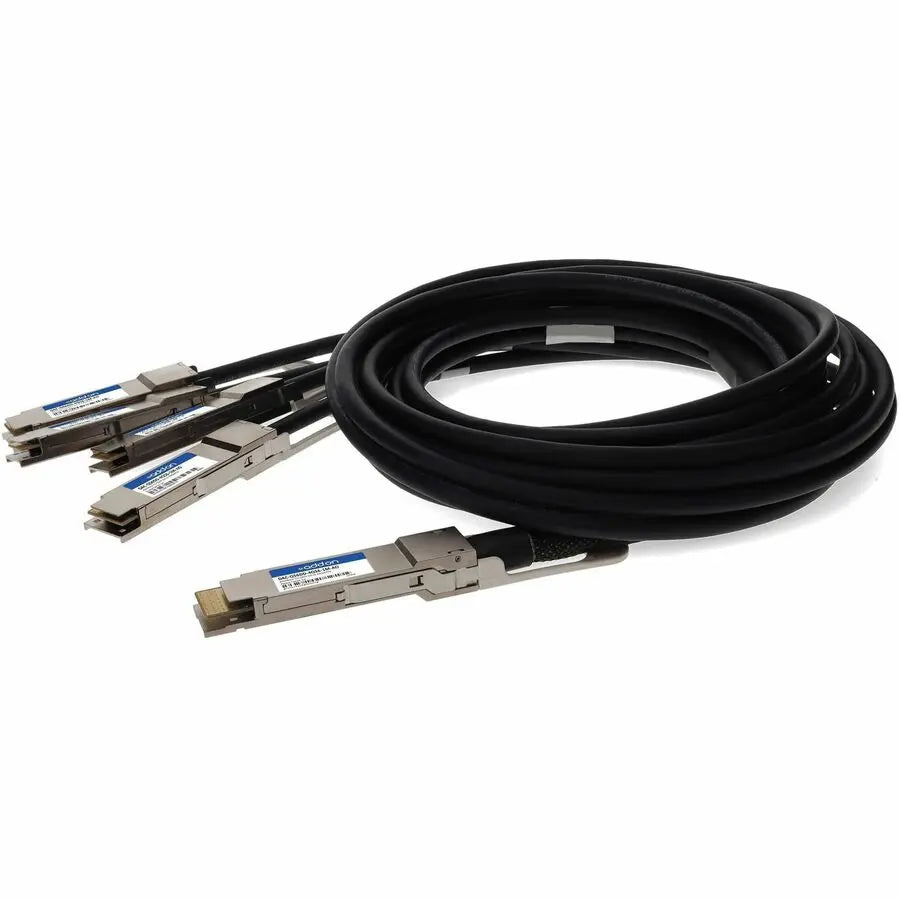

AddOn Dell® DAC-Q56DD-4Q56-1M Compatible 400GBase-CU QSFP-DD to 4xQSFP56 100G PAM-4 Passive Twinax Cable, 1 Meter

AddOn Dell® DAC-Q56DD-4Q56-1M Compatible TAA Compliant 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 Direct Attach Cable (Passive Twinax, 1m)

The AddOn Dell® DAC-Q56DD-4Q56-1M is a high-performance, TAA compliant 400GBase-CU QSFP-DD direct attach cable designed for demanding data center and enterprise networking environments. This cable provides a reliable connection between high-speed switches and servers, supporting aggregate data rates up to 400Gbps, with four 100Gbps channels for versatile deployment. Constructed with high-quality copper conductors and a PVC jacket, it ensures durability and flexibility while maintaining excellent EMI and EMC performance through 360-degree cable shield termination. The cable's pull-to-release slide latch facilitates quick, secure connections, making installation straightforward even in tight spaces.

Features:

• Compliant with QSFP-DD MSA Specification Rev 3.4 for interoperability and standards adherence

• SFF-8679 electrical interface compliance ensures robust signal integrity

• Supports SFF-8636 management interface for remote monitoring and control

• Compatible with IEEE 802.3bj, IEEE 802.3by, and IEEE 802.3cd standards for broad network compatibility

• Supports aggregate data rates of 100Gbps and 400Gbps for high-bandwidth applications

• I2C communication interface for EEPROM data access and configuration

• Pull-to-release slide latch design for easy and secure connection management

• Flexible cable gauge options from 28AWG to 32AWG provide installation versatility

• Excellent EMI/EMC performance achieved through 360-degree shield termination

• Manufactured with automated pre-soldered dual-side assembly for consistent quality and reliability
