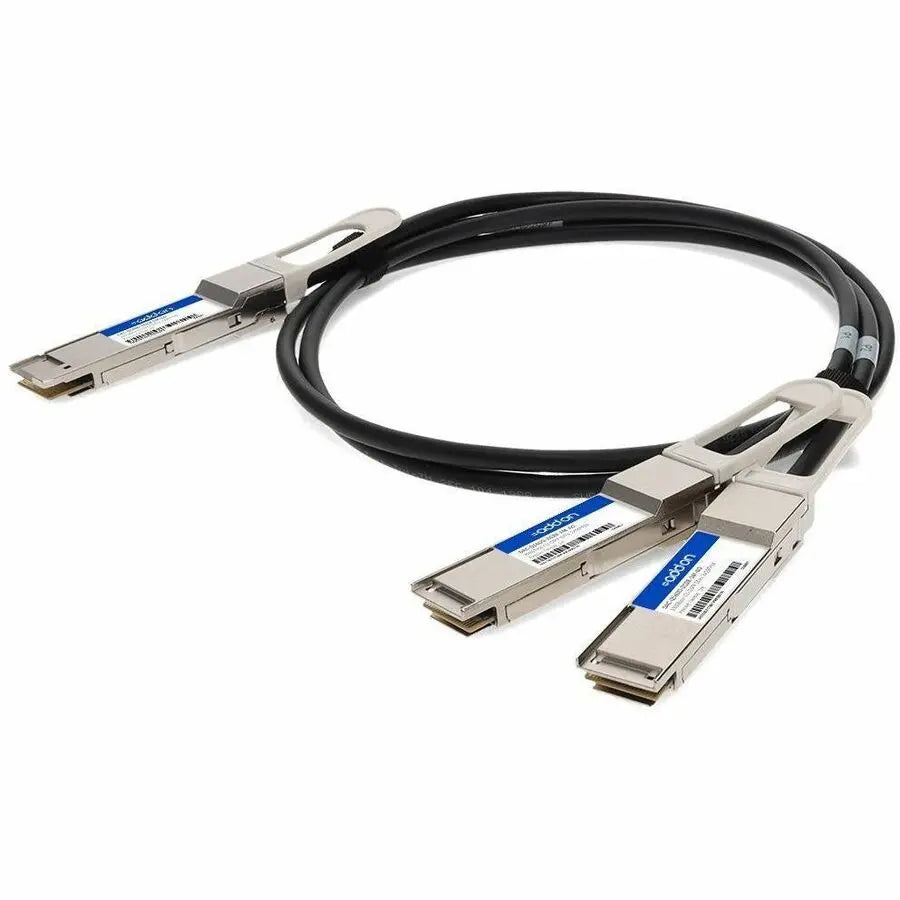

AddOn DELL DAC-Q56DD-2Q28-1M Twinaxial Network Cable – 200GBase-CU QSFP-DD to 2xQSFP28, 1 Meter

AddOn Dell® DAC-Q56DD-2Q28-1M Compatible TAA Compliant 200GBase-CU QSFP-DD 200G to 2xQSFP28 100G NRZ Direct Attach Cable (Passive Twinax, 1m)

The AddOn DELL DAC-Q56DD-2Q28-1M twinaxial network cable is designed for high-speed data center and enterprise network applications. This TAA-compliant cable converts a single 200GBase-CU QSFP-DD port into two 100G QSFP28 ports, supporting aggregate data rates of up to 200Gbps. Crafted from high-quality copper with a polyvinyl chloride (PVC) jacket, it ensures durability and reliable performance over passive copper connections. The cable features a pull-to-release slide latch for secure connection and easy disconnection, making it ideal for dense network environments. Its 28AWG through 32AWG wire gauge provides an optimal balance of flexibility and signal integrity, while the 360-degree shield termination enhances EMI/EMC performance, reducing interference and signal loss. This cable is engineered with advantage dual side pre-solder automated assembly technologies, ensuring consistent quality and performance. Compliant with QSFP-DD MSA Specification Rev 3.4, SFF-8679 electrical interface, and SFF-8636 management interface standards, it supports compatibility with IEEE 802.3bj, IEEE 802.3by, and IEEE 802.3cd standards. Designed and manufactured in the United States by AddOn, it comes with a limited lifetime warranty, underscoring its quality and reliability. Whether deploying new data center infrastructure or upgrading existing setups, this cable offers a robust and compliant solution for high-speed interconnects in demanding environments.

Features:

• Compliant with QSFP-DD MSA Specification Rev 3.4

• SFF-8679 electrical interface compliant

• SFF-8636 management interface support

• Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd standards

• Supports aggregate data rates of 100 and 200Gbps

• I2C for EEPROM communication

• Pull-to-release slide latch design for secure connection

• Constructed with 28AWG through 32AWG copper conductors

• Excellent EMI/EMC performance with 360-degree cable shield termination

• Manufactured using advantage dual side pre-solder automated assembly technologies
