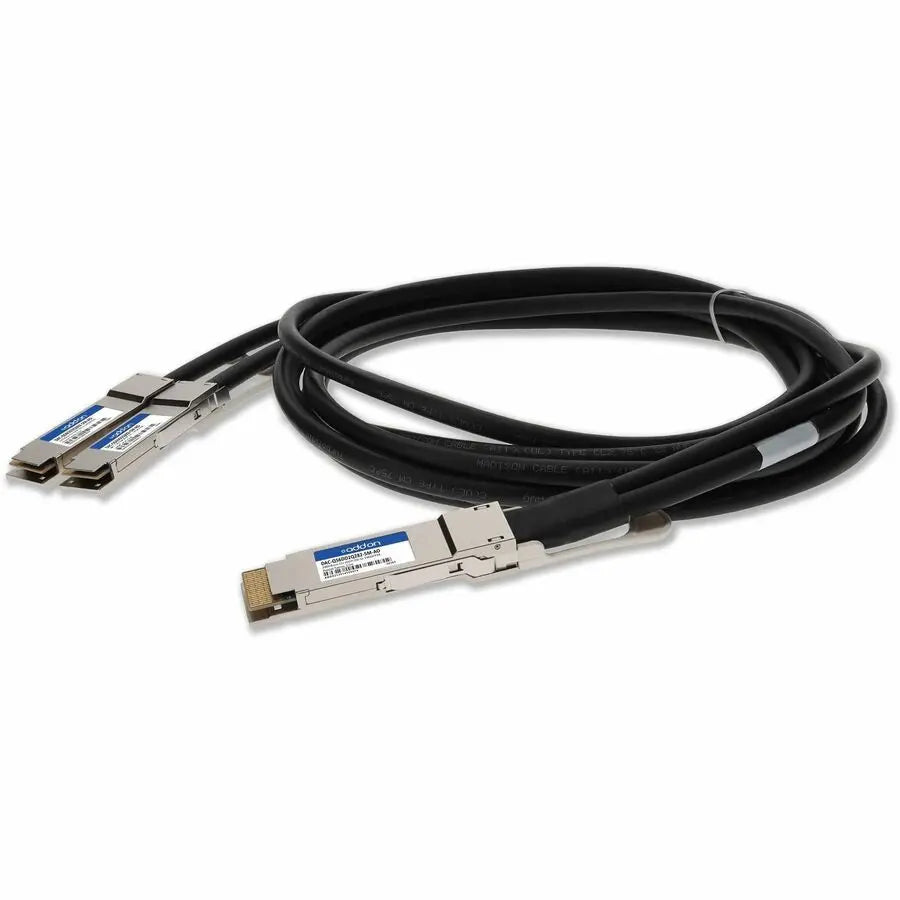

AddOn Dell DAC-Q56DD-2Q28-2.5M Compatible TAA Compliant 200GBase-CU QSFP-DD to 2xQSFP28 100G NRZ Passive Twinax Cable

AddOn Dell® DAC-Q56DD-2Q28-2-5M Compatible TAA Compliant 200GBase-CU QSFP-DD 200G to 2xQSFP28 100G NRZ Direct Attach Cable (Passive Twinax, 2.5m)

The AddOn Dell DAC-Q56DD-2Q28-2.5M is a high-performance, TAA-compliant passive copper cable designed for demanding data center and enterprise network environments. This 2.5-meter (8.2 feet) direct attach cable (DAC) facilitates seamless connectivity between QSFP-DD and QSFP28 ports, supporting aggregate data rates of up to 200Gbps. Built with high-quality copper conductors and a robust PVC jacket, it ensures reliable data transmission with excellent EMI and EMC performance, thanks to 360-degree cable shield termination. The cable features a pull-to-release slide latch for secure, easy connection and supports multiple standards including IEEE 802.3bj, IEEE 802.3by, and IEEE 802.3cd, making it compatible with a wide range of networking equipment. It employs I2C communication for EEPROM management and adheres to the latest QSFP-DD MSA Specification Rev 3.4, ensuring compliance and interoperability. The cable's design incorporates dual-side pre-solder automated assembly technologies, enhancing manufacturing quality and durability. Environmentally friendly and RoHS compliant, this product is built for sustainability and performance. The package includes a single cable, backed by a limited lifetime warranty from AddOn, a trusted manufacturer specializing in network connectivity solutions.

Features:

• Compliant with QSFP-DD MSA Specification Rev 3.4

• SFF-8679 electrical interface compliant

• SFF-8636 management interface support

• Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd

• Supports aggregate data rates of 100 and 200Gbps

• I2C for EEPROM communication

• Pull-to-release slide latch design

• 28AWG through 32AWG copper cable

• Excellent EMI/EMC performance with 360-degree shield termination

• Manufactured with advantage dual side pre-solder automated assembly technologies
