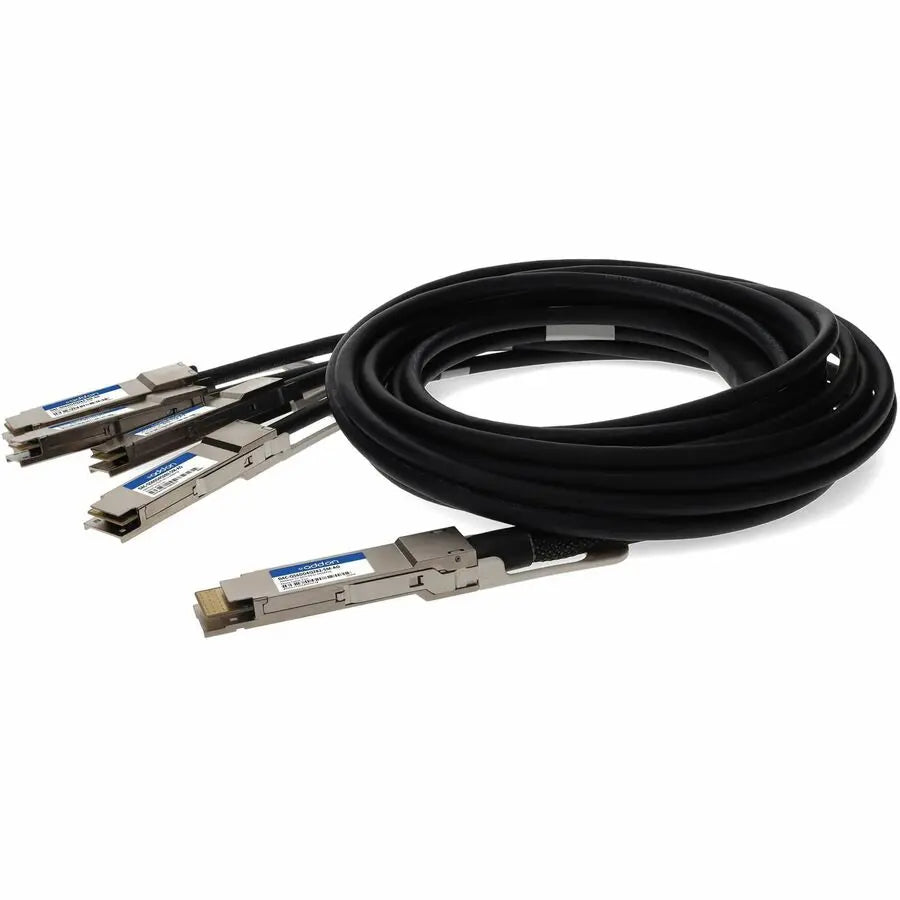

AddOn Dell DAC-Q56DD-4Q28-2.5M Compatible 200GBase-CU QSFP-DD to 4xQSFP28 Passive Copper Direct Attach Cable

AddOn Dell® DAC-Q56DD-4Q28-2-5M Compatible TAA Compliant 200GBase-CU QSFP-DD 200G to 4xQSFP28 50G NRZ Direct Attach Cable (Passive Twinax, 2.5m)

The AddOn Dell DAC-Q56DD-4Q28-2.5M is a high-performance, TAA-compliant direct attach copper cable designed for demanding data center and enterprise networking environments. This 2.5-meter (8.2 ft) passive copper cable features a QSFP-DD to four QSFP28 breakout configuration, supporting aggregate data rates of up to 200Gbps for optimal high-speed connectivity. Built with copper conductors and a PVC jacket, the cable ensures reliable electrical performance and durability during intensive data transmission. It has been rigorously programmed, serialized, and tested to guarantee full compliance with industry standards, providing peace of mind for mission-critical applications. This cable is compatible with major IEEE standards, including IEEE 802.3bj, IEEE 802.3by, and IEEE 802.3cd, making it suitable for a wide range of high-speed network deployments.

Features:

• Compliant with QSFP-DD MSA Specification Rev 3.4 for interoperability and standardization

• SFF-8679 electrical interface compliant ensures seamless integration with compatible hardware

• Supports SFF-8636 management interface for effective device management

• Compatible with IEEE 802.3bj, IEEE 802.3by, and IEEE 802.3cd standards for high-speed Ethernet networks

• Supports aggregate data rates of 100 and 200Gbps for versatile application support

• I2C interface facilitates EEPROM communication for configuration and management

• Pull-to-release slide latch design simplifies cable insertion and removal, reducing wear

• Constructed with 28AWG through 32AWG copper conductors for optimal signal integrity

• Excellent EMI/EMC performance achieved through 360-degree cable shield termination

• Manufactured using advantage dual side pre-solder automated assembly technologies for consistent quality
