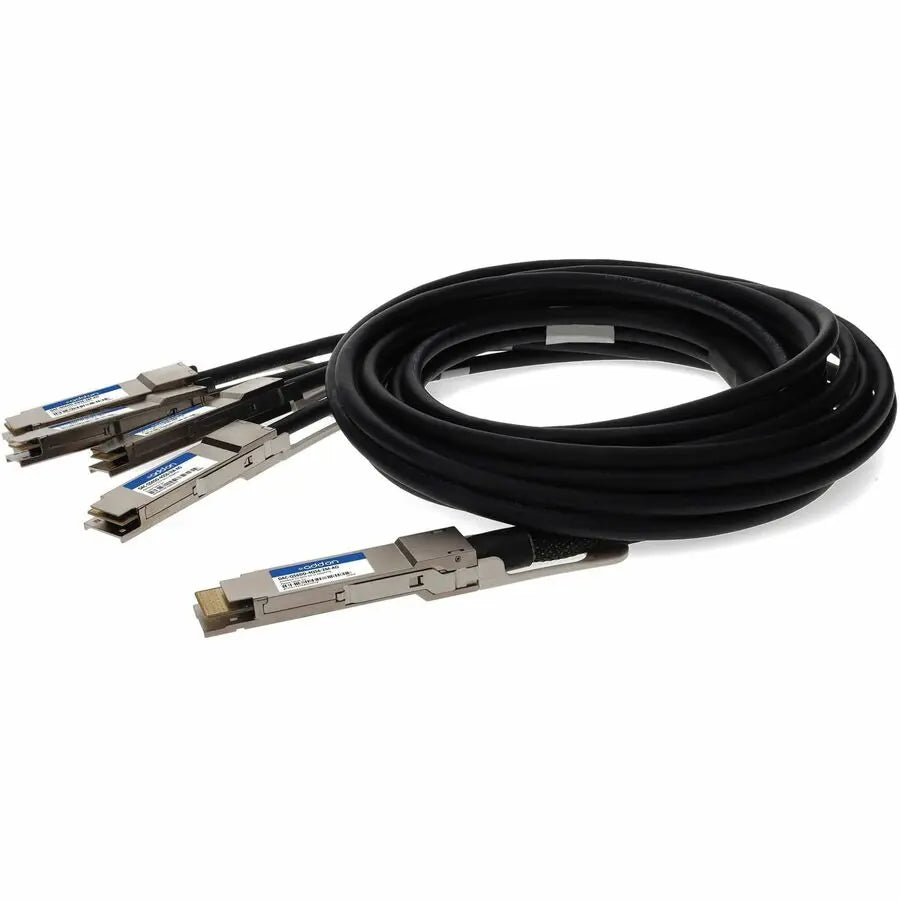

ADDON DELL DAC-Q56DD-4Q56-2M Twinaxial Network Cable – 400GBase-CU QSFP-DD to 4xQSFP56 100G, 2 Meter

AddOn Dell® DAC-Q56DD-4Q56-2M Compatible TAA Compliant 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 Direct Attach Cable (Passive Twinax, 2m)

The ADDON DELL DAC-Q56DD-4Q56-2M twinaxial network cable is a high-performance solution designed for demanding data center and enterprise networking environments. This TAA-compliant cable seamlessly connects a QSFP-DD port to four QSFP56 modules, supporting aggregate data rates of up to 400Gbps. Crafted with high-quality copper and featuring a durable PVC jacket, this cable ensures reliable data transmission and durability over passive copper connections with a maximum reach of 2 meters (6.6 feet). Its design incorporates advanced shielding and EMI/EMC performance features, including a 360-degree cable shield termination, to minimize interference and maintain signal integrity in complex networking setups. The pull-to-release slide latch simplifies installation and removal, while the 28AWG through 32AWG cable gauge provides flexibility and ease of handling during deployment.

Manufactured in the United States by AddOn, this twinaxial cable meets the latest industry standards, including the QSFP-DD MSA Specification Rev 3.4, SFF-8679 electrical interface, and SFF-8636 management interface support. It is compatible with IEEE 802.3bj, IEEE 802.3by, and IEEE 802.3cd protocols, ensuring broad interoperability within high-speed Ethernet networks. The cable employs I2C for EEPROM communication, enabling efficient device management and configuration. Built with automated pre-soldering technologies, the cable benefits from high-quality assembly processes that enhance durability and performance. Backed by a limited lifetime warranty, the ADDON DAC-Q56DD-4Q56-2M provides a reliable, environmentally friendly solution for high-speed data transmission needs, making it an ideal choice for data centers, enterprise networks, and high-performance computing environments.

Features:

• Compliant with QSFP-DD MSA Specification Rev 3.4

• SFF-8679 electrical interface compliant

• SFF-8636 management interface support

• Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd

• Supports aggregate data rates of 100 and 400Gbps

• I2C for EEPROM communication

• Pull-to-release slide latch design

• 28AWG through 32AWG cable

• Excellent EMI/EMC performance with 360-degree cable shield termination

• Manufactured with advantage dual side pre-solder automated assembly technologies
