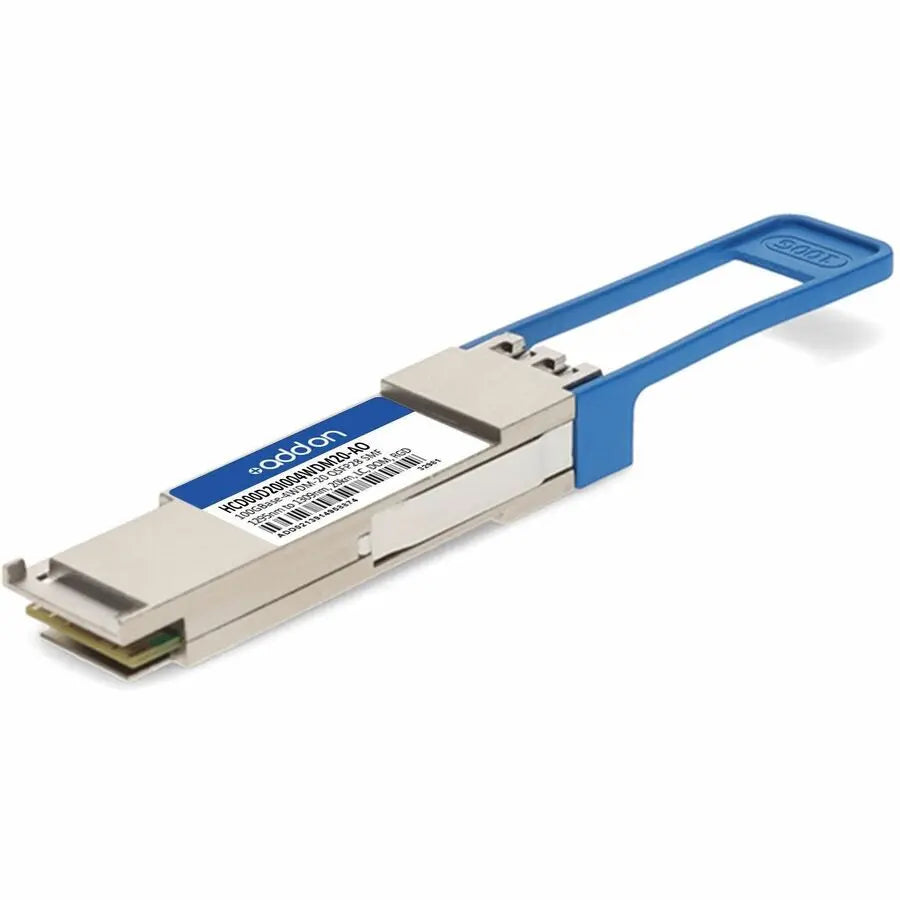

AddOn Fujitsu HCD00D20I004WDM20-AO QSFP28 100GBase-4WDM-20 Transceiver Module

AddOn Fujitsu® HCD00D20I0000-0-4WDM-20 Compatible TAA 100GBase-4WDM-20 QSFP28 Transceiver (SMF, 1295nm to 1309nm, 20km, LC, DOM, -40 to 85C)

The AddOn Fujitsu HCD00D20I004WDM20-AO QSFP28 transceiver module delivers high-performance 100GBase-4WDM-20 connectivity over single-mode fiber. Designed to operate reliably in rugged environments, this transceiver supports data transmission distances up to 20 kilometers at wavelengths ranging from 1295nm to 1309nm through duplex LC connectors. Its robust construction ensures stable operation across a broad temperature range from -40°C to 85°C, making it suitable for demanding applications in various network deployments. Built to meet or surpass OEM standards, the module is fully compatible with Fujitsu systems and conforms to Multi-Source Agreement (MSA) specifications, guaranteeing seamless integration into existing networks. Each unit is programmed, uniquely serialized, and tested for optimal data traffic performance, providing confidence in its reliability and functionality. The transceiver features Digital Optical Monitoring (DOM), allowing real-time access to critical operating parameters for proactive maintenance and troubleshooting. As an environmentally friendly, TAA-compliant product manufactured in the United States, it also complies with the Waste Electrical and Electronic Equipment Directive (WEEE). The package includes one hot-swappable module, backed by a limited lifetime warranty, ensuring long-term support and performance. Its design incorporates a single 3.3V power supply with minimal power dissipation of less than 4.8W, supporting efficient energy use. The device features a 4x25Gbps LAN-WDM transmitter with a PIN and TIA array on the receiver side, enabling high-speed data transfer with four 25Gbps electrical interfaces. Duplex LC receptacles facilitate easy fiber connections, while the integrated I2C interface with Digital Diagnostic Monitoring provides comprehensive operational insights, ensuring optimal network performance and management.

Features:

• QSFP28 MSA compliant for compatibility and standards adherence

• Supports data rates up to 103Gbps for high-bandwidth applications

• Single 3.3V power supply with power dissipation less than 4.8W for energy efficiency

• Operates effectively over distances up to 20km on single-mode fiber

• Wide operating temperature range from -40°C to 85°C for versatile deployment

• Equipped with a 4*25Gbps DFB-based LAN-WDM transmitter for high-speed data transmission

• PIN and TIA array on the receiver side for reliable signal detection

• Four 25Gbps electrical interfaces for flexible connectivity

• Duplex LC receptacles for straightforward fiber optic connections

• I2C interface with integrated Digital Diagnostic Monitoring for real-time operational data
