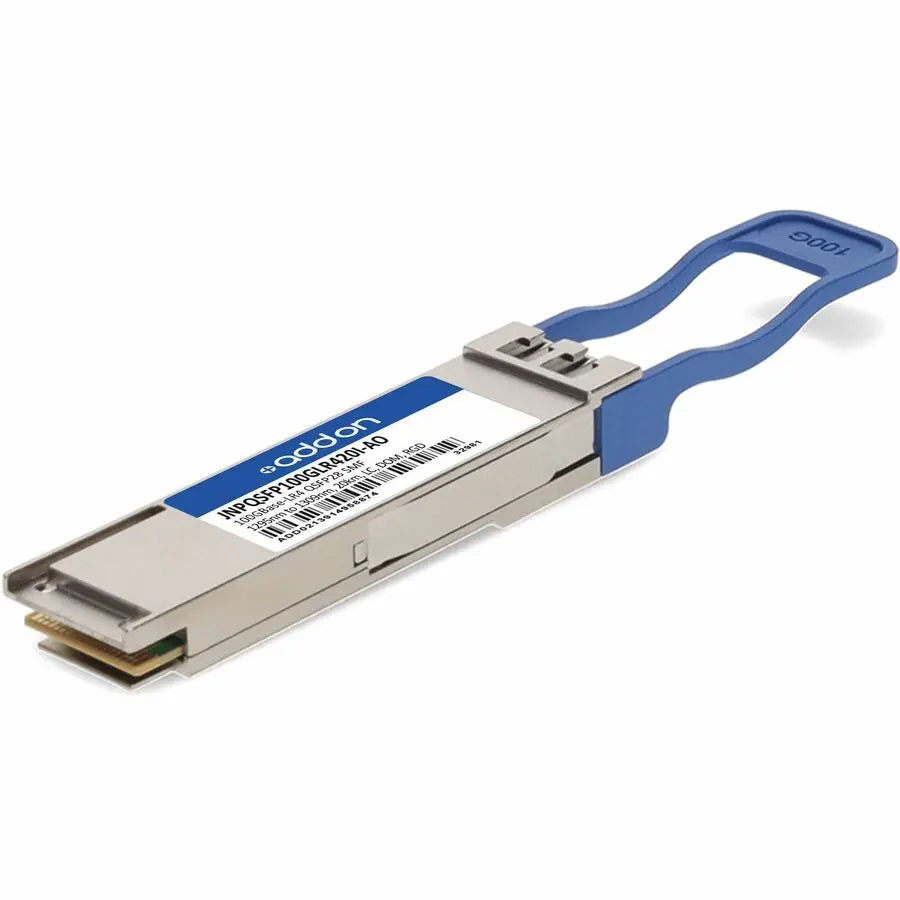

AddOn Juniper Networks JNP-QSFP-100G-LR4-20-I Compatible QSFP28 Transceiver for 100G Ethernet over Single-Mode Fiber

AddOn Juniper Networks® JNP-QSFP-100G-LR4-20-I Compatible TAA 100GBase-LR4 QSFP28 Transceiver (SMF, 1310nm, LC, 20km, DOM, -40 to 85C)

The AddOn Juniper Networks JNP-QSFP-100G-LR4-20-I is a high-performance, hot-swappable QSFP28 transceiver designed for 100G Ethernet applications. This module supports data rates of 100GBase-LR4, enabling reliable transmission over single-mode fiber (SMF) up to 20 kilometers using wavelengths between 1295nm and 1309nm. Compatible with MSA standards and fully tested for data traffic and application performance, it guarantees seamless integration with Juniper Networks equipment. Its compact form factor and simple installation process make it ideal for high-density data center deployments and network upgrades. The transceiver features digital optical monitoring (DOM) for real-time tracking of operating parameters, enhancing network management and troubleshooting capabilities.

Features:

• Compliant with QSFP28 MSA standards for broad compatibility

• Supports 4 cooled 25Gb/s channels with LAN WDM DFB TOSA for high-speed data transfer

• Equipped with 4 channels PIN photo detectors for precise signal detection

• Powered by a single +3.3V power supply for energy efficiency and simplified power management

• Class 1 laser safety certification ensures safe operation in data centers

• Power consumption is less than 5.0W, promoting energy efficiency

• Operational in a wide temperature range from -40°C to +85°C, suitable for various environments

• Effective over distances up to 20 kilometers on single-mode fiber

• RoHS 6/6 compliant, environmentally friendly design
