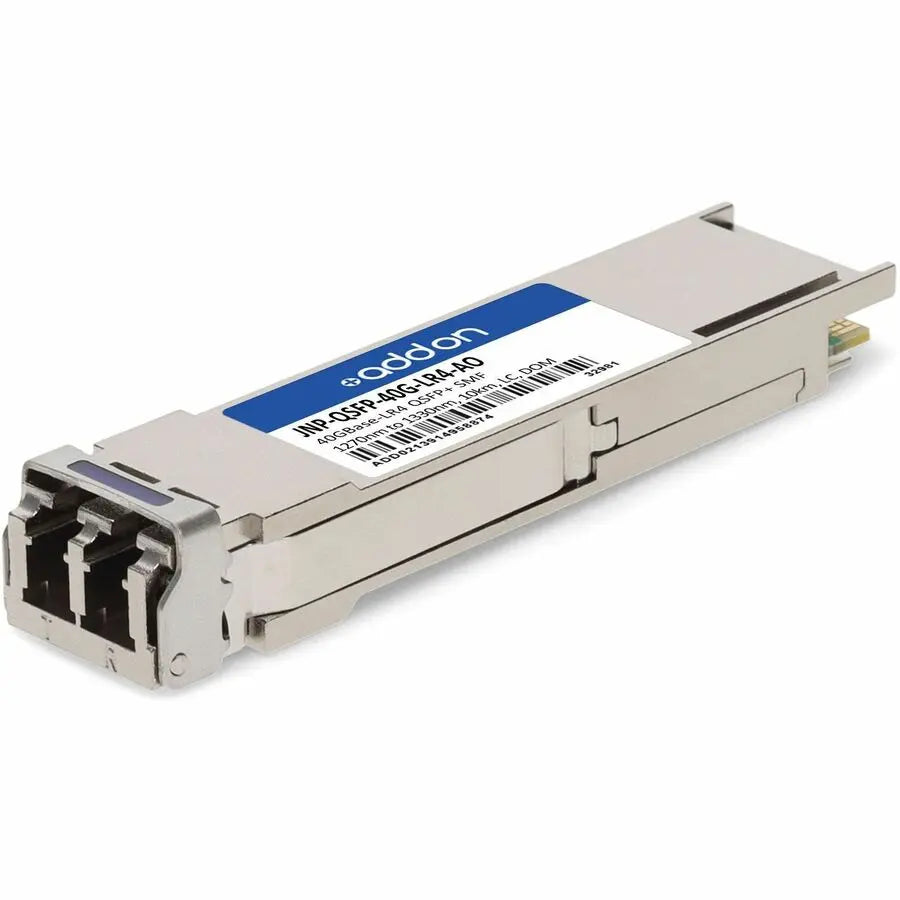

AddOn Juniper Networks JNP-QSFP-40G-LR4 Compatible 40GBase-LR4 QSFP+ Transceiver for Single-Mode Fiber

AddOn Juniper Networks JNP-QSFP-40G-LR4 Compatible TAA Compliant 40GBase-LR4 QSFP+ Transceiver (SMF, 1270nm to 1330nm, 10km, LC, DOM)

The AddOn JNP-QSFP-40G-LR4 is a high-performance QSFP+ transceiver designed for reliable 40G Ethernet connections over single-mode fiber. Engineered to meet or exceed OEM standards, this transceiver provides up to 10 kilometers of transmission distance using a wavelength range of 1270nm to 1330nm. Its compatibility with MSA standards ensures seamless integration into various network environments, making it an ideal choice for data centers and enterprise networks. The transceiver features four CWDM channels—1271nm, 1291nm, 1311nm, and 1331nm—that operate independently, each capable of full-duplex data transfer at rates up to 11.2Gbps per wavelength. This design allows for flexible, high-bandwidth communication across multiple channels, optimizing bandwidth utilization and network efficiency. Crafted with a single +3.3V power supply, the device consumes a maximum of 3.5W, promoting energy-efficient operation within temperature ranges from 0°C to 70°C. Its robust design includes Digital Optical Monitoring (DOM) support, providing real-time insights into operational parameters for proactive network management. The transceiver is RoHS compliant, environmentally friendly, and TAA compliant, ensuring adherence to industry standards and regulations. Each unit is programmed, uniquely serialized, and tested for data-traffic performance to guarantee consistent, reliable performance. The compact form factor and MSA compliance make it suitable for a variety of network hardware, providing a cost-effective, high-quality solution for 40G connectivity needs.

Features:

• RoHS compliant for environmentally responsible deployment

• Compatible with IEEE802.3ba standards for high-speed Ethernet

• Operates within a temperature range of 0°C to 70°C for versatile environments

• Maximum power consumption of 3.5W for energy efficiency

• Meets MSA specifications for seamless network integration

• Supports transmission distances up to 10km over single-mode fiber

• Powered by a single +3.3V power supply for simplified setup

• Includes four CWDM channels at 1271nm, 1291nm, 1311nm, and 1331nm

• Provides four independent full-duplex channels with data rates up to 11.2Gbps per wavelength

• s a 4 CWDM lanes MUX/DEMUX design for flexible channel management
