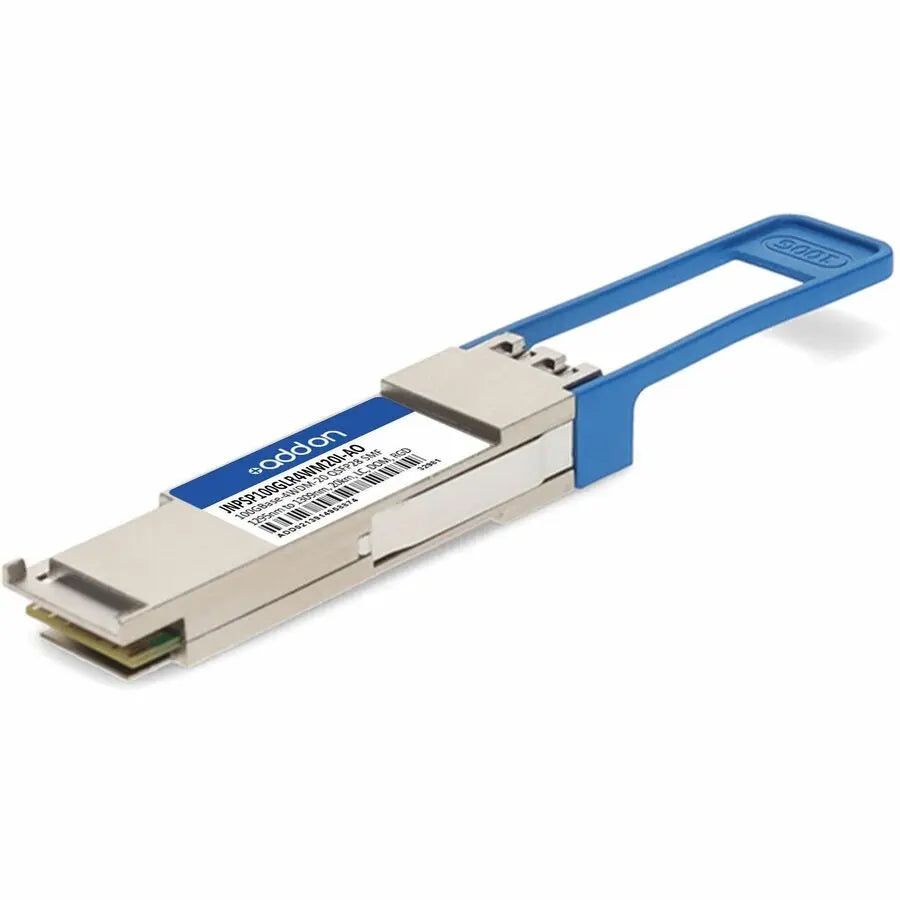

AddOn Juniper Networks JNPSP100GLR4WM20I-AO 100G QSFP28 LR4 Transceiver with Digital Optical Monitoring

AddOn Juniper Networks® JNP-QSFP-100G-LR4-4WDM-20-I Compatible TAA 100GBase-4WDM-20 QSFP28 (SMF, 1295nm to 1309nm, 20km, LC, DOM, -40 to 85C)

The AddOn Juniper Networks JNPSP100GLR4WM20I-AO QSFP28 transceiver delivers high-speed 100GBase-4WDM-20 performance over single-mode fiber up to 20 kilometers, making it ideal for demanding enterprise and service provider networks. Designed to meet or exceed OEM specifications, this transceiver is fully compatible with Juniper Networks equipment and adheres to Multi-Source Agreement (MSA) standards for seamless integration. Its robust construction allows operation in rugged environments with temperatures ranging from -40°C to 85°C, ensuring stability and reliability across diverse deployment conditions. The transceiver features a single 3.3V power supply with low power dissipation under 4.8W, optimizing energy efficiency. With a 4x25Gbps DFB-based LAN-WDM transmitter and duplex LC connectors, it guarantees high throughput and flexible fiber connectivity. Digital Optical Monitoring (DOM) support provides real-time access to critical operating parameters, facilitating proactive network management. This hot-swappable module is TAA compliant and environmentally friendly, conforming to WEEE directives, and comes with a lifetime limited warranty for added assurance.

Features:

• QSFP28 MSA compliant for broad compatibility

• Supports data rates up to 103Gbps for high-performance networking

• Single 3.3V power supply with power dissipation less than 4.8W

• Operates effectively over distances up to 20km on single-mode fiber

• Wide operating temperature range from -40°C to 85°C for rugged environments

• 4*25Gbps DFB-based LAN-WDM transmitter for efficient data transmission

• PIN and TIA array on the receiver side for signal integrity

• 4x25G electrical interface supporting high-speed connections

• Duplex LC receptacles for reliable fiber connectivity

• Integrated I2C interface with Digital Diagnostic Monitoring for real-time health monitoring
