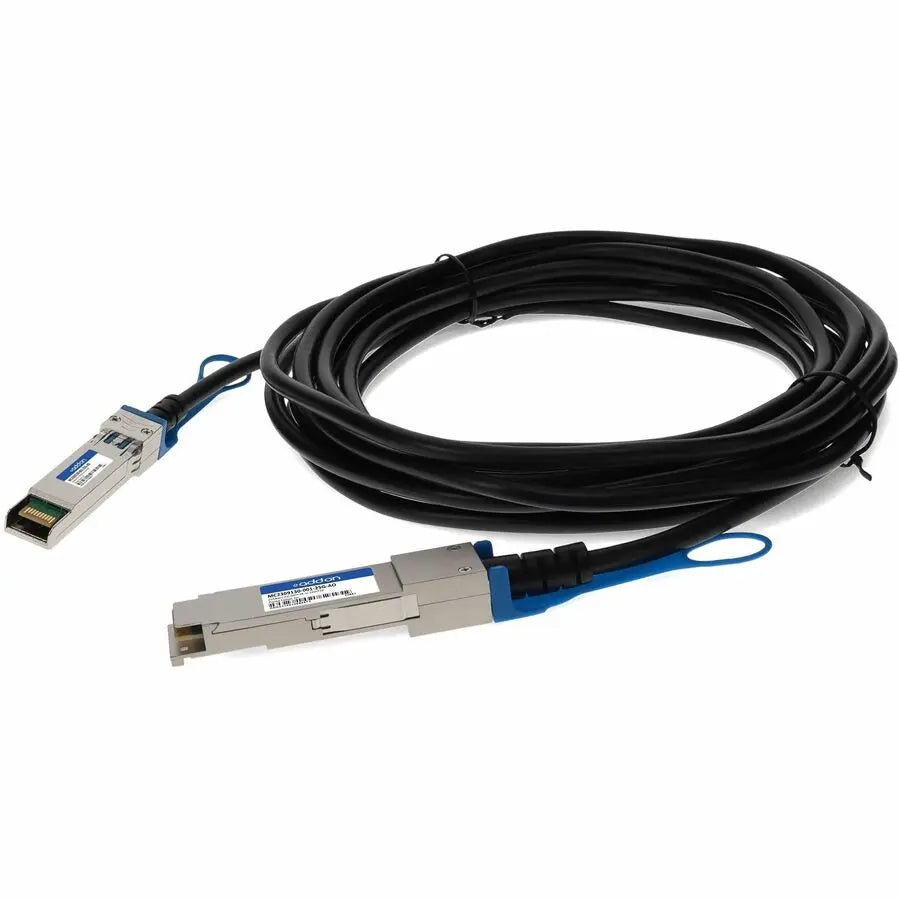

AddOn Mellanox MC2309130-001-25G 25GBase-CU QSFP28 to SFP28 Passive Copper Direct Attach Cable, 1 Meter

AddOn Mellanox® MC2309130-001-25G Compatible TAA Compliant 25GBase-CU QSFP28 to 1xSFP28 Direct Attach Cable (Passive Twinax, 1m)

The AddOn Mellanox MC2309130-001-25G is a high-performance passive copper direct attach cable designed for reliable high-speed data transmission in data centers and enterprise networks. This 1-meter (3.3 feet) cable connects a QSFP28 port to an SFP28 port, supporting data rates up to 25Gbps per duplex channel. Built with all-metal housing, it offers superior EMI shielding to ensure signal integrity in demanding environments. The cable's copper conductors are made from high-quality materials, providing durability and excellent electrical performance. Its compact design and low power consumption make it an ideal choice for space-constrained setups where minimizing power draw is essential. This cable is TAA compliant and manufactured in the United States, adhering to strict industry standards including RoHS regulations. The MC2309130-001-25G is tested for compliance and functionality, ensuring seamless integration into your existing network infrastructure with a limited lifetime warranty for added peace of mind.

Features:

• QSFP28 End: Compliant with QSFP28 MSA specifications

• SFP28 End: Compliant with SFP28 MSA specifications

• 1 independent duplex channel operating at 25Gbps

• AC coupled inputs and outputs

• 100 Ohm differential impedance

• Wire Gauge: 26AWG to 30AWG

• All-metal housing for superior EMI performance

• Single 3.3V power supply, low power consumption

• Operating Temperature: 0°C to 70°C

• ROHS and TAA compliant
