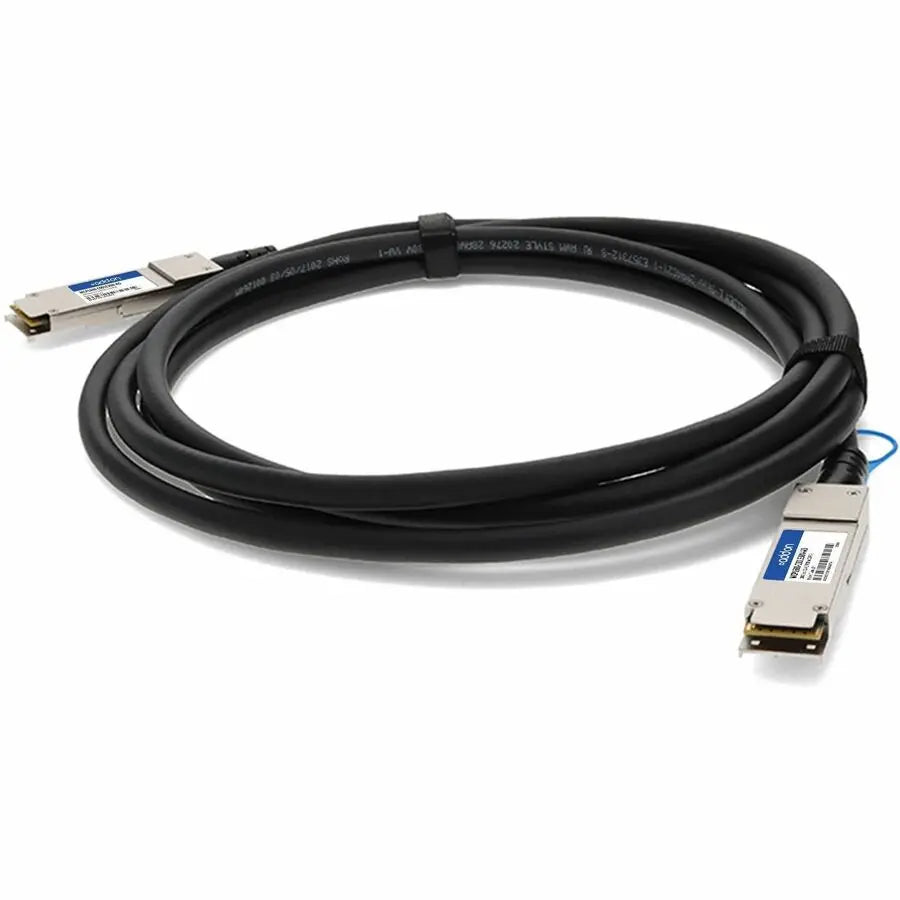

AddOn Mellanox MCP1600-C001E30N-AO 100GBase-CU QSFP28 to QSFP28 Passive Copper Direct Attach Cable, 1 Meter

AddOn Mellanox® MCP1600-C001 Compatible TAA Compliant 100GBase-CU QSFP28 Direct Attach Cable (Passive Twinax, 1m)

The AddOn Mellanox MCP1600-C001E30N-AO is a high-performance 100GBase-CU QSFP28 to QSFP28 direct attach cable designed for data centers and high-speed networking environments. This passive copper cable provides reliable, bi-directional data links up to 100 Gbps over a maximum reach of 1 meter (3.3 feet), making it ideal for short-range interconnects between switches, servers, and storage systems. Crafted with an all-metal housing, it ensures superior electromagnetic interference (EMI) shielding and durability, supporting stable high-speed data transmission. The cable features AC coupled inputs and outputs, adhering to the QSFP28 Multi-Source Agreement (MSA) standards, ensuring compatibility across various networking hardware. Its single 3.3V power supply and low power consumption design contribute to energy-efficient operation in modern data center setups.

Features:

• Up to 100 Gbps bi-directional data links

• AC coupled inputs and outputs

• Compliant with QSFP28 MSA specifications

• All-metal housing for superior EMI performance

• Single power supply 3.3V, low power consumption

• 100 Ohm differential impedance

• ROHS Compliant

• Operating Temperature: 0 to 70 Celsius
