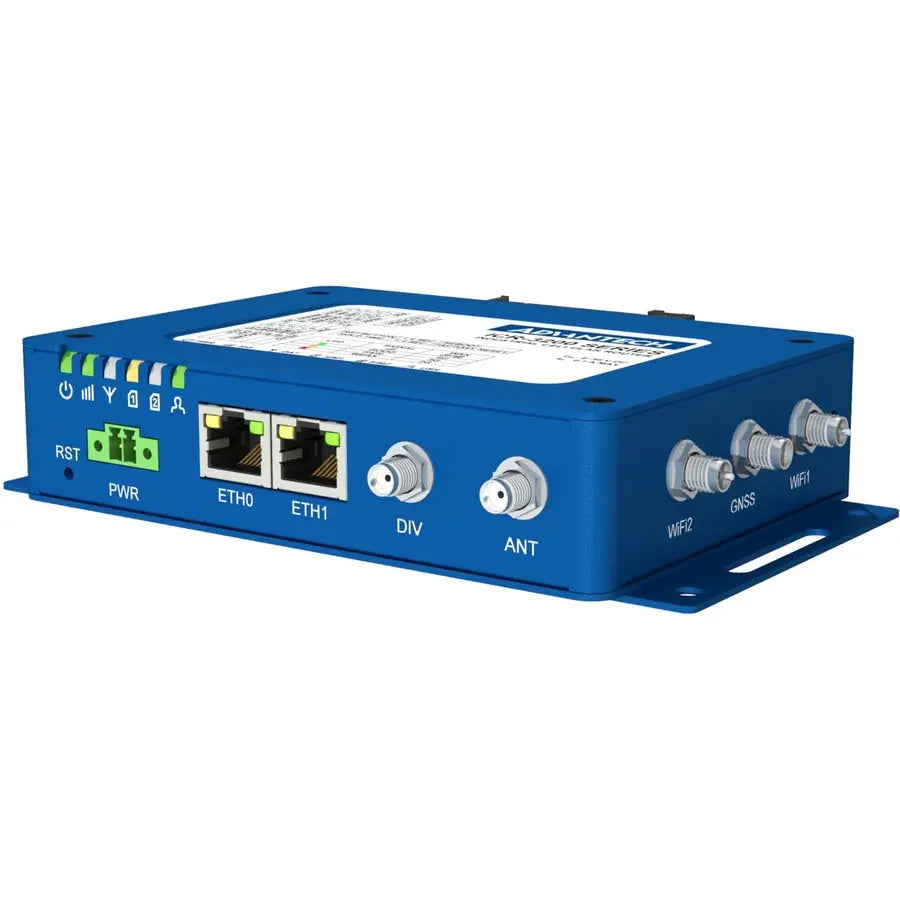

Advantech ICR-3241W Industrial IoT 4G LTE Router & Gateway with Wi-Fi 5 and Dual SIM Support

Advantech ICR-3241W Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular, Ethernet Modem/Wireless Router

The Advantech ICR-3241W Industrial IoT 4G LTE Router & Gateway offers a robust solution for connecting industrial devices to cellular networks. Designed for demanding environments, this device supports LTE Cat.4 with upload speeds up to 50 Mbps and download speeds reaching 150 Mbps, enabling high-bandwidth applications such as CCTV streaming, public Wi-Fi hotspots, and remote monitoring. Its industrial-grade build includes a durable metal cover and an operational temperature range from -40°C to +75°C, ensuring reliable operation in harsh conditions.

Equipped with two Ethernet 10/100 ports, serial interfaces RS232 and RS485, and digital I/O connectivity, the ICR-3241W provides versatile network integration options. It features two SIM card slots protected by a metallic cover, supporting dual SIM configuration and an internal eSIM for carrier failover redundancy. Optional GNSS receiver enhances positioning capabilities, ideal for fleet management and asset tracking, while an optional Wi-Fi 802.11ac module with MU-MIMO technology allows for efficient onboard Wi-Fi transport applications with high throughput.

Powered by a high-performance Cortex A8 CPU at 1GHz, with 512 MB RAM and 4 GB eMMC flash memory, the ICR-3241W is capable of hosting custom applications. Its open Linux platform supports programming in Python, C/C++, or browser-based tools like Node-RED, offering extensive customization for industrial IoT solutions. The device supports VPN protocols for secure communication and includes diagnostic functions such as automatic connection monitoring, restart capabilities, and a hardware watchdog to ensure continuous operation.

Installation is straightforward with WebAccess/DMP, a comprehensive configuration and monitoring software. The device also supports additional traffic and health monitoring software such as R-SeeNet, making it suitable for large-scale deployments. Its design includes wall-mount and DIN rail options, making it adaptable for various industrial settings. The ICR-3241W supports multiple carrier networks, including Verizon, AT&T, T-Mobile, and FirstNet, and adheres to environmental standards like the WEEE directive, ensuring eco-friendly operation in diverse environments.

Features:

• Sleep mode, power ignition, and backup real-time clock for reliable power management

• Operational temperature range from -40°C to +75°C for harsh environment suitability

• Robust metal cover with DIN rail and wall mount options for flexible installation

• Optional GNSS receiver for precise location tracking

• Optional Wi-Fi 802.11ac with MU-MIMO technology for high-throughput onboard wireless connectivity

• Dual SIM slots with cover and internal eSIM support for carrier failover redundancy

• Two Ethernet 10/100 ports, RS232 and RS485 serial interfaces, and digital I/O connectivity for versatile networking

• Powerful Cortex A8 CPU at 1GHz, 512 MB RAM, and 4 GB eMMC storage to host custom industrial applications

• Carrier support for Verizon, AT&T, T-Mobile, and FirstNet (Public Safety) networks

• 4G LTE Cat.4 VPN gateway designed for industrial IoT applications with high data demand
