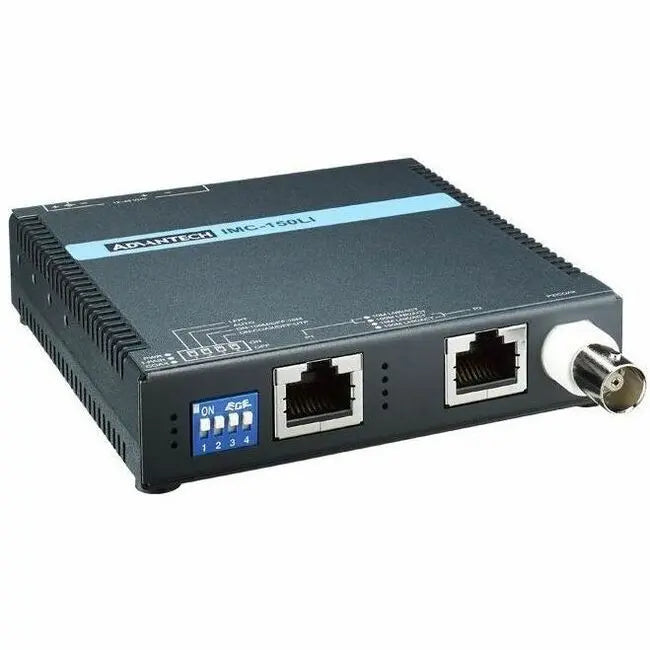

Advantech IMC-150LI Network Extender for Ethernet and PoE+ Transmission

The Advantech IMC-150LI Network Extender is a robust solution designed to extend Ethernet and power transmission over long distances, making it ideal for demanding environments such as industrial sites, airports, and railway applications. This device supports 10/100 Mbps Ethernet over twisted pair (CAT-5, UTP) and coaxial cables, enabling reliable data transfer up to 800 meters over UTP or 1 kilometer over coaxial cables. Its versatile design allows for flexible deployment across various network configurations, enhancing connectivity where traditional Ethernet limits are insufficient. The device features a user-configurable DIP switch to select LAN speed and connection type, providing ease of setup and adaptability for different network demands.

Features:

• Extends Ethernet up to 800 meters at 10 Mbps or 500 meters at 100 Mbps over twisted pair cable

• Supports coaxial cable transmission up to 1 kilometer at 10 Mbps or 500 meters at 100 Mbps (IMC-150LI)

• Designed for railway trackside environments compliant with EN 50121-4 standards

• Includes Link Fault Pass Through (LFPT) for reliable network fault detection

• Switch-selectable configurations for LAN rate and connection type

• Dual design with PoE+ PD/PSE functionality (IMC-150LPI) for power over Ethernet extension
