SKU:113442

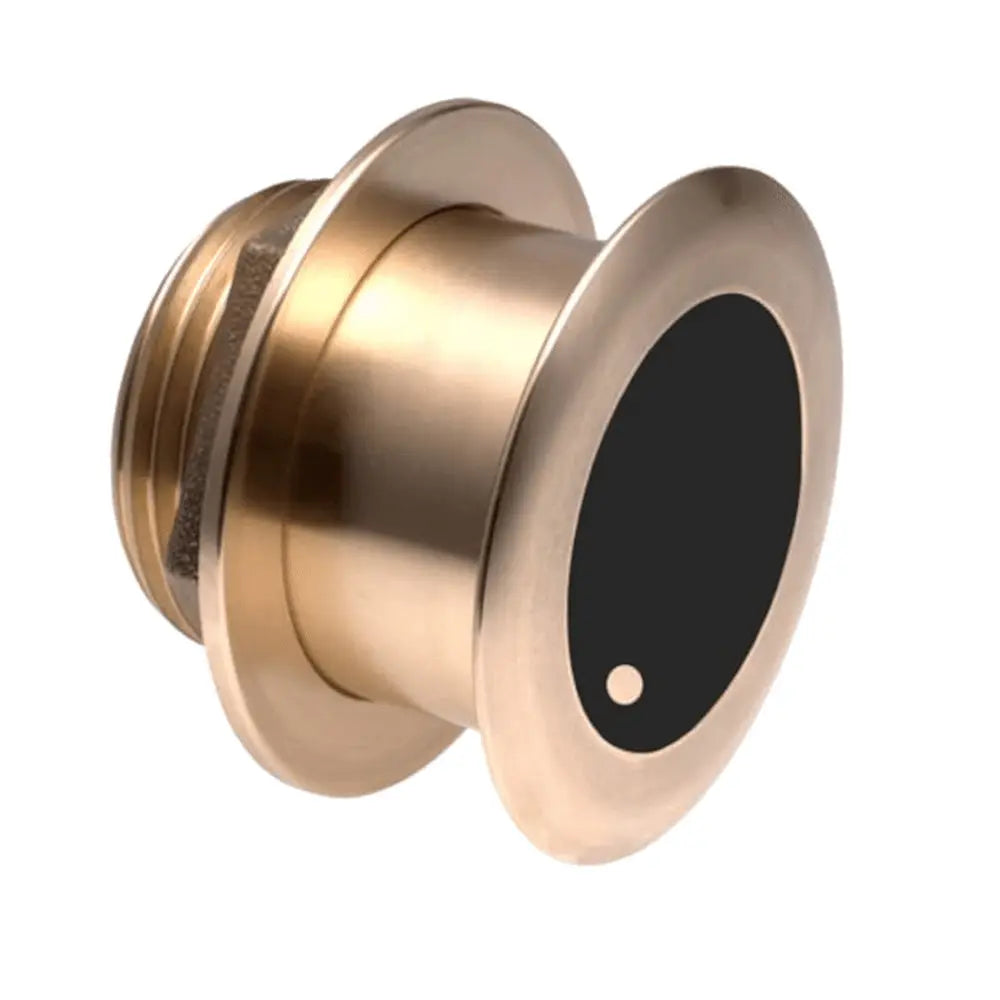

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable
12 tilted version for 8 to 15 hull deadrise angles. Step up to a 1 kWwithout a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4) below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
Specifications:
The Airmar B164 Bronze Thru-Hull transducer is designed for efficient performance on fast, trailered vessels that require a low-profile installation. Its flush-mounted bronze housing extends less than ¼ inch below the hull, making it suitable for trailer rollers and bunks without impacting the boat’s running performance. The 12° tilted element ensures a vertical beam with maximum energy directly beneath the vessel, providing high-quality depth and water-temperature data for a variety of marine applications. Perfect for fiberglass or wood hulls, this transducer supports deadrise angles from 8 to 15 degrees, making it versatile for different boat configurations. Its dual-frequency capability delivers detailed scans at both 50 kHz, with a 22° beamwidth for depths up to 1,800 feet, and 200 kHz, with a 6° beamwidth for depths up to 800 feet, allowing for precise fish finding and bottom tracking. The unit interfaces seamlessly with any 600 W or 1 kW echo sounder, offering reliable performance across multiple marine electronics systems. Engineered for center-console and trailered boats, the B164’s rugged bronze construction ensures durability in harsh marine environments. It features integrated depth and fast-response water-temperature sensing, enhancing its functionality for fishing, yachting, and recreational boating. The transducer includes a 6.5-foot cable with a 9-pin connector compatible with Airmar's MM1 series, and its patented Xducer ID technology simplifies setup and device recognition. The model is also available with a stainless steel housing (SS164) for use on all hull materials, providing flexibility for various vessel types. Its compact, low-profile design and high power output make it an essential component for boaters seeking reliable, high-performance sonar data without affecting vessel speed or handling.
Features:
