SKU:107583

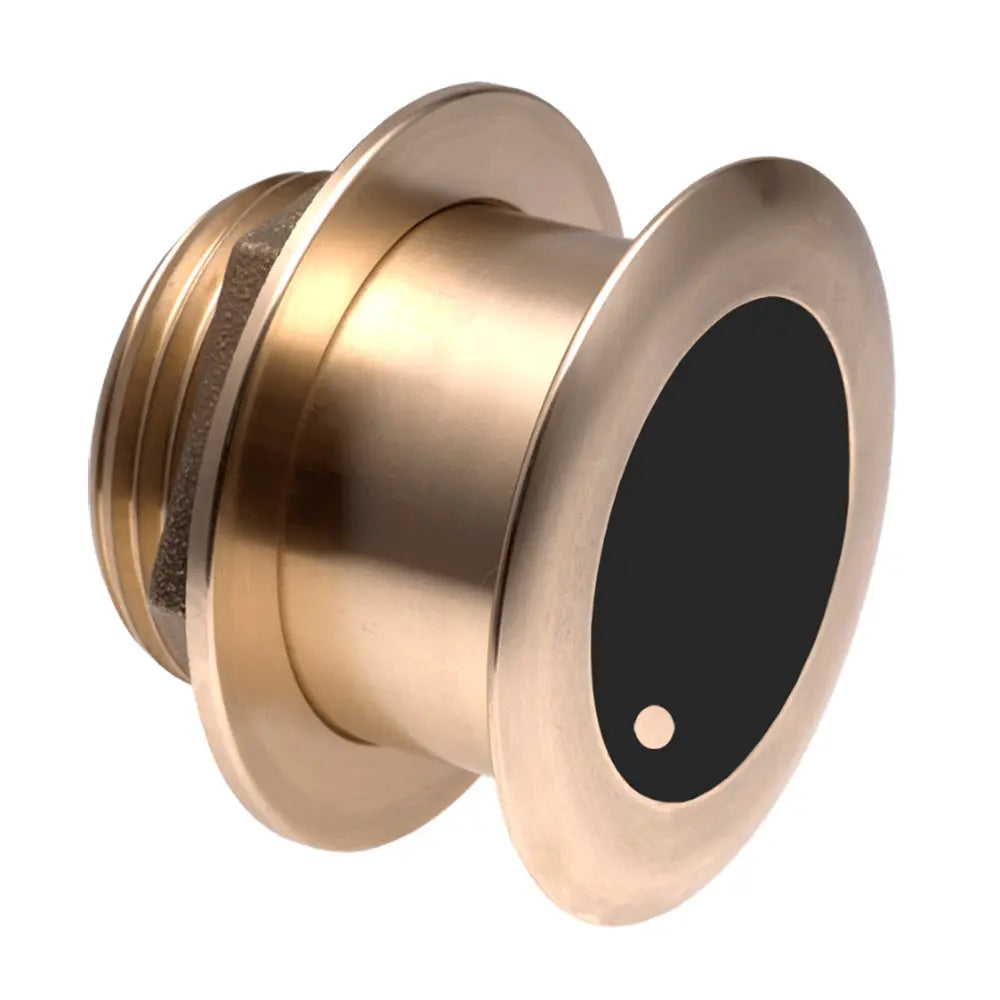

B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector for Garmin
Airmars innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 port-starboard to 16 average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmars new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMARs most popular Tilted Element housings which includes a ceramic element fixed at a 20, 12 or 0 angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Features:
The Airmar B175 Medium Ultra-Wide (MW) Thru-hull transducer is engineered for anglers seeking broad coverage and precise fish detection at mid-depths. Designed with a 1 kW power rating and a medium frequency range of 60-100 kHz, this transducer delivers an ultra-wide beamwidth spanning from 57 to 73 degrees port-starboard and an average of 16 degrees fore-aft, ensuring comprehensive sonar coverage beneath the vessel. Its innovative Tilted Element housing, fixed at a 12-degree angle, compensates for hull deadrise and maintains optimal orientation for maximum echo return, making it ideal for both stepped and displacement hulls. The transducer's ceramic element, positioned nearly flush with the hull, provides reliable performance and excellent target separation, especially when targeting pelagic species near the surface and mid-water column.
Equipped with a built-in depth and water-temperature sensor, the B175MW offers fast response times and accurate environmental data. Its broad bandwidth of 40 kHz allows for versatile operation, combining high-resolution imaging with deep-water performance up to 400 meters (1,300 feet). The bronze housing ensures durability across various hull types, and the low-profile thru-hull design minimizes drag while delivering high-resolution imaging at speed. Exclusive Xducer ID technology simplifies installation and ensures proper transducer recognition by compatible fishfinders, providing a seamless user experience.
Ideal for anglers targeting pelagic species and deep-water fish, the Airmar B175MW transducer complements other models such as the B275LHW, expanding your sonar capabilities across a range of depths and conditions. Its robust construction, advanced beamwidth, and versatile frequency band make it a top choice for serious fishermen seeking reliable, high-performance sonar under the hull of their boat.
Features:
