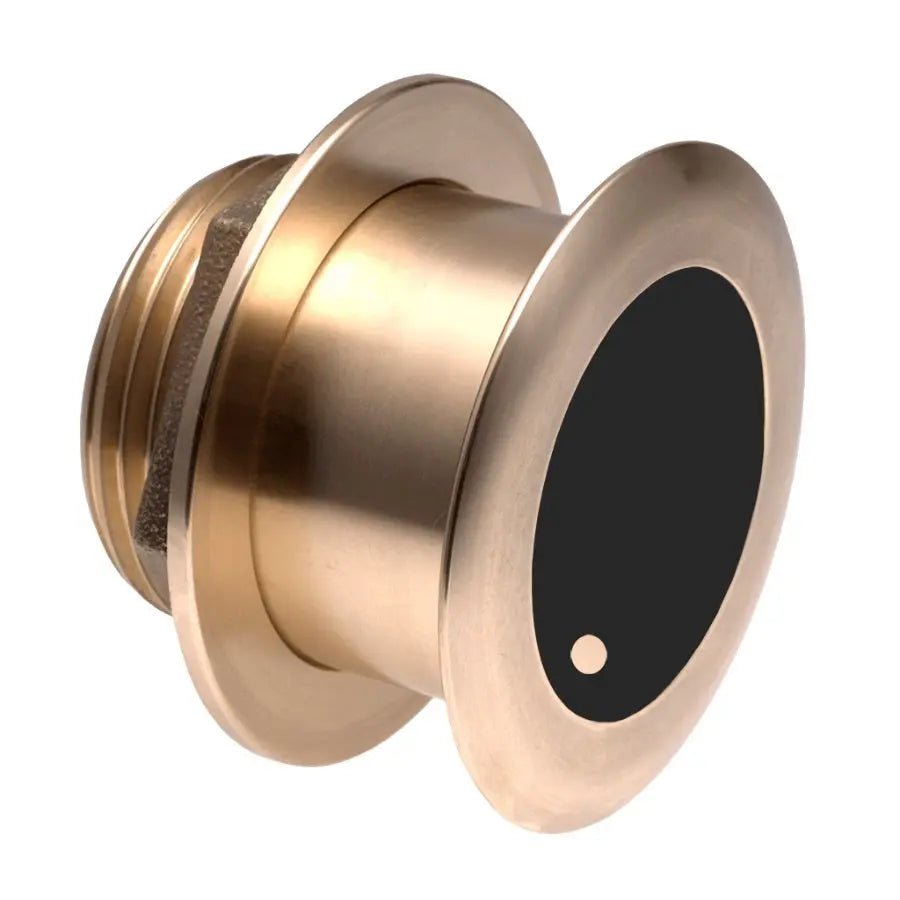

Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide with Bare Wire MMC

Explore the Features and Benefits of the Airmar B175C Transducer

Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide with Bare Wire MMC

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element Thru-Hull - with Bare Wire Mix-n-Match Cable

Model: B175C-0-MW-0

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• MMC-0 Bare Wire Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide
,

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element Thru-Hull - with Bare Wire Mix-n-Match Cable

Model: B175C-0-MW-0
• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• MMC-0 Bare Wire Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide

Advanced Medium CHIRP Sonar Technology

The Airmar B175C adopts Medium CHIRP sonar technology that provides enhanced target resolution and clearer underwater images. Designed with a 0° tilt, this transducer optimizes signal performance by maintaining a precise angle that improves detection accuracy. Its ultra-wide beam coverage ensures broader scanning range, enabling users to detect fish and underwater structures with greater confidence. This robust sonar technology is suitable for both recreational and professional marine applications, making the Airmar B175C a top choice for reliable underwater exploration.

Durable Design with Bare Wire MMC Connection

Featuring a bare wire MMC (Marine Molded Connector), the Airmar B175C offers flexible installation options, allowing seamless integration with various marine electronics. The rugged construction and encapsulated electronics provide excellent resistance to harsh marine environments, including saltwater corrosion and physical impacts. This durability extends the lifespan of the transducer, ensuring long-term reliability. Additionally, the bare wire connection supports custom cable lengths, which enhances versatility during installation on different vessel types and sizes.

User-Friendly Performance and Versatility

The Airmar B175C is engineered for easy installation and operation, suitable for a wide range of boats and sonar systems. Its zero tilt design eliminates the need for angle compensation, simplifying setup and maintenance. Thanks to its ultra-wide beam angle, users gain a comprehensive view beneath their vessel, improving fish-finding capabilities and bottom tracking. Whether used in freshwater or saltwater environments, the transducer adapts seamlessly to a variety of sonar units, making it an essential tool for anglers and marine professionals alike.
