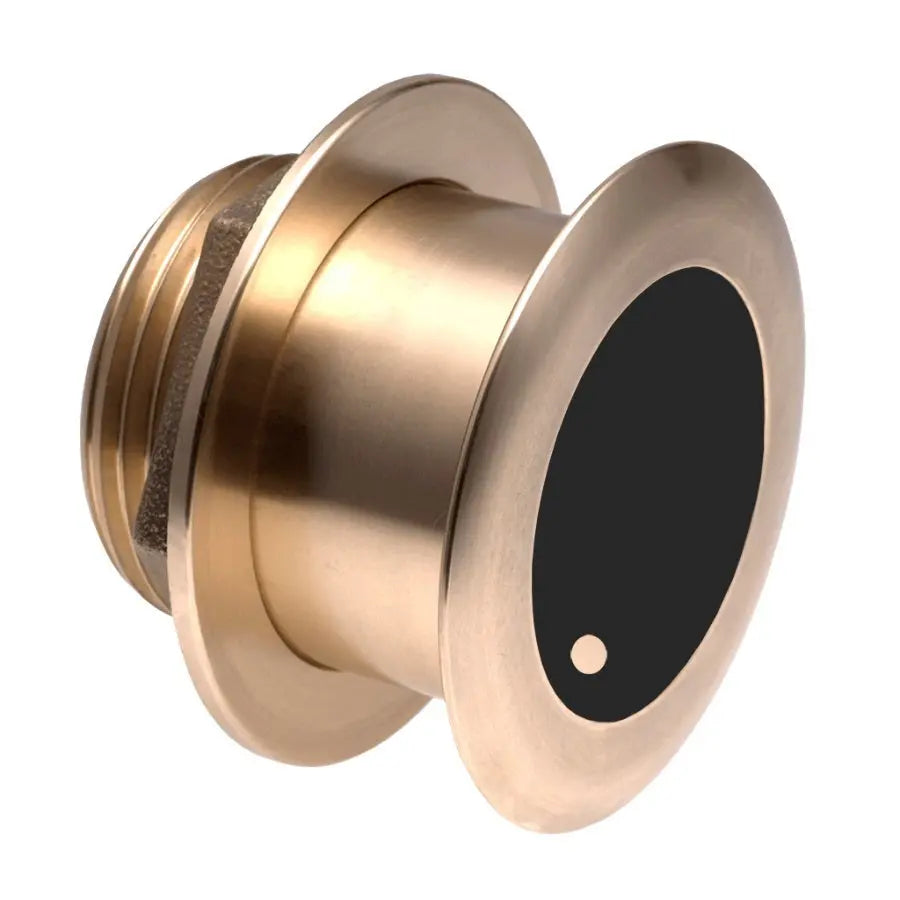

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Furuno 12-Pin MMC

Airmar B175C-12-MW: Advanced CHIRP Ultra Wide Tilt Transducer for Precision Marine Sonar

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Furuno 12-Pin MMC

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element Thru-Hull - Furuno 12-Pin Mix-n-Match Cable

Model: B175C-12-MW-12F

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• B175C-12-MW-MM Medium Ultra-Wide Chirp, 1kW, 12° Tilt
• MMC-12F Furuno 12-Pin Mix-n-Match Cable

Overview of Airmar B175C-12-MW Features

The Airmar B175C-12-MW is a 12-degree tilt medium CHIRP ultra-wide transducer designed to deliver high-quality sonar images for marine applications. Utilizing advanced CHIRP technology, it provides superior target resolution and depth penetration compared to traditional sonar systems. This model is specifically designed to be compatible with Furuno equipment via a 12-pin MMC connector, making it an excellent choice for professionals seeking seamless integration and reliable performance. Its durable construction ensures longevity even in harsh saltwater environments, making it a dependable tool for commercial or recreational fishing and navigation.

Technical Specifications and Compatibility

This Airmar transducer operates at medium frequency ranges, optimizing both detail and depth while maintaining a wide 12-degree tilt angle that enhances coverage beneath the vessel. The ultra-wide beam width ensures effective scanning for fish and underwater structures across a broader area. Designed for Furuno’s 12-pin MMC interface, it plugs directly into compatible sonar systems without the need for adapters. Its low-profile design minimizes drag and installation complexity on various hull types, enhancing vessel efficiency while delivering accurate sonar readings essential for advanced navigation and fish-finding tasks.

Benefits of Using Airmar B175C-12-MW in Marine Operations

Installing the Airmar B175C-12-MW transducer elevates marine sonar capabilities by providing crisp, clear underwater images through precision CHIRP technology. The 12-degree tilt helps reduce surface clutter and interference, making it easier to detect fish and underwater features even in challenging conditions. Its compatibility with Furuno’s 12-pin MMC system ensures reliable data communication, simplifying maintenance and integration. Whether for commercial fishing, offshore research, or recreational boating, this transducer enhances situational awareness, improves catch rates, and contributes to safer navigation by delivering detailed underwater mapping and target identification.
