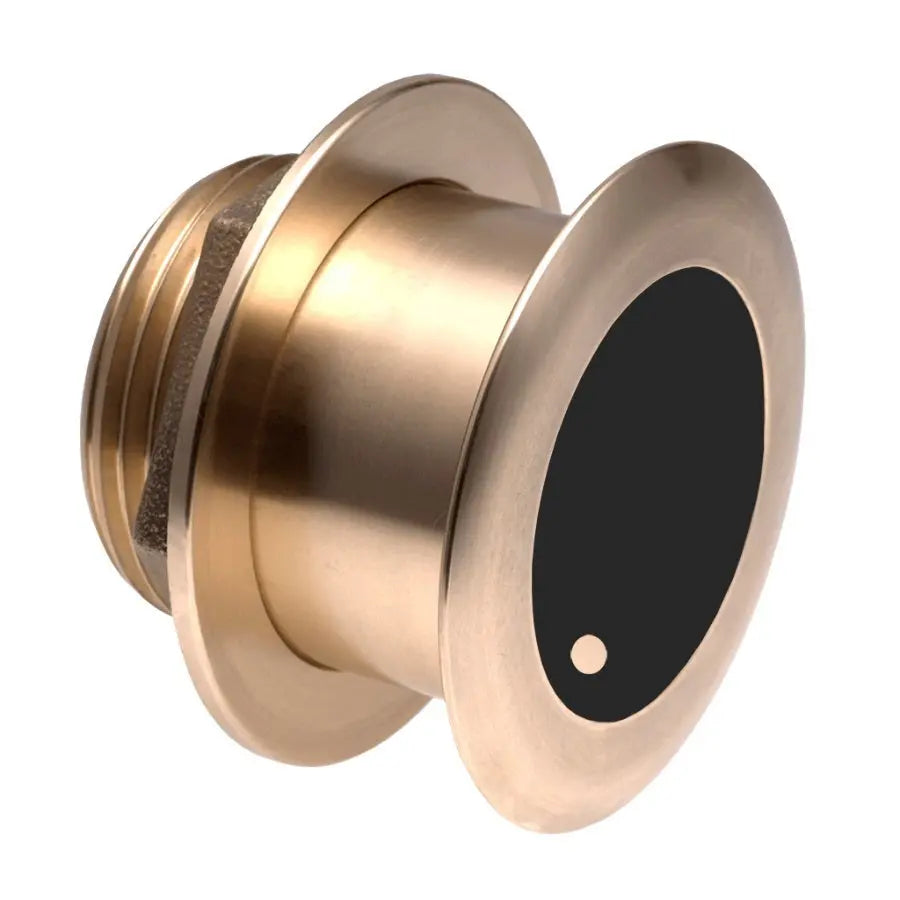

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Garmin 12-Pin MMC

Airmar B175C-12-MW: Advanced CHIRP Ultra Wide Transducer for Marine Use

Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Garmin 12-Pin MMC

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element Thru-Hull - Garmin 12-Pin Mix-n-Match Cable

Model: B175C-12-MW-12G

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• B175C-12-MW-MM Medium Ultra-Wide Chirp, 1kW, 12° Tilt
• MMC-12G Garmin 12-Pin Mix-n-Match Cable

High-Performance CHIRP Technology for Clear Underwater Imaging

The Airmar B175C-12-MW transducer utilizes advanced CHIRP (Compressed High-Intensity Radiated Pulse) technology to deliver ultra-wide, 12-degree tilt medium beamwidth sonar performance. This allows for outstanding target separation and enhanced fish detection across a broad underwater range. Its innovative design supports clear and accurate imaging essential for both amateur and professional marine users, making it an excellent choice for fishing and navigation. Integrating seamlessly with Garmin 12-pin MMC units, it enhances depth and clarity, helping you make better decisions on the water.

Robust Design with Garmin 12-Pin MMC Compatibility

This Airmar transducer features a rugged build designed to withstand the harsh marine environment while maintaining reliable performance. Equipped with a Garmin 12-pin MMC connector, it offers straightforward plug-and-play installation on compatible Garmin sonar units. The durable construction resists corrosion and impact, ensuring long-lasting functionality. Its medium tilt and ultra-wide beam allows it to capture detailed sonar images making it ideal for various vessel types. This compatibility also ensures efficient power transmission and optimal data transfer, contributing to the overall enhanced sonar experience.

Optimized for Versatility and Easy Installation

The Airmar B175C-12-MW is engineered for easy installation on a wide range of vessels, including center consoles and stern mounts. Its 12-degree tilt medium beam optimizes the transducer's angle to reduce bottom interference and increase detection range. Whether you’re navigating shallow waters or deeper environments, its ultra-wide sonar coverage delivers consistent performance. This versatility combined with its compatibility with Garmin 12-pin MMC systems makes it an essential component for marine enthusiasts seeking precise depth readings and fish location capabilities.
