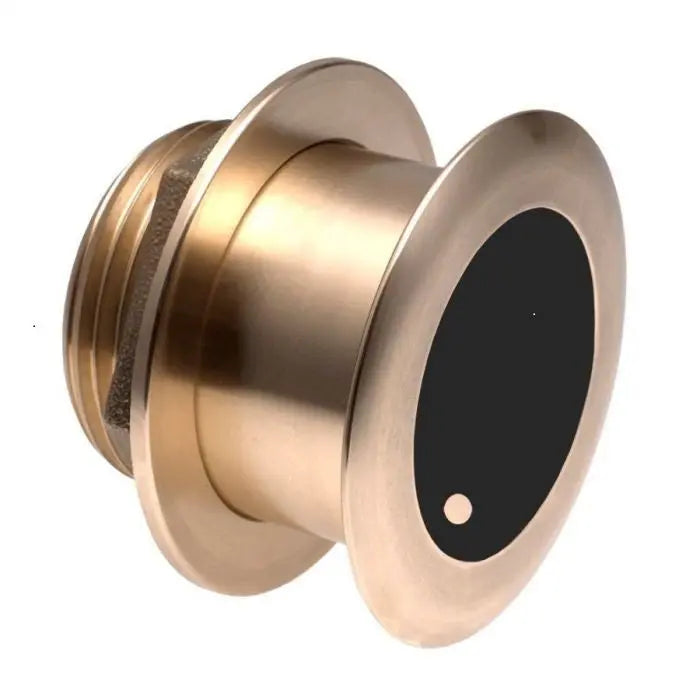

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Furuno 10-Pin MMC

Explore the Features and Benefits of the Airmar B175C-20-MW CHIRP Transducer

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Furuno 10-Pin MMC

Airmar B175MW Medium Ultra-Wide 20 deg Tilted Element Thru-Hull - With Furuno 10-Pin Mix-N-Match Cable

Model: B175C-20-MW-10F

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• B175C-20-MW-MM 20d Tilt Medium CHIRP Ultra Wide
• MMC-10F Furuno 10-Pin Mix-n-Match Cable

Advanced 20° Tilt Medium CHIRP Technology

The Airmar B175C-20-MW transducer offers advanced 20-degree tilt medium CHIRP capabilities, providing ultra-wide frequency coverage that enhances underwater target detection accuracy. This technology ensures clearer, more detailed images and better separation of fish and structure, making it an excellent choice for anglers and marine professionals. The medium CHIRP frequency balances depth penetration and resolution, allowing effective performance in a variety of water conditions. The 20° tilt enables improved beam angle orientation, adapting well to different hull shapes and mounting positions for optimal signal reception.

Seamless Compatibility with Furuno 10-Pin MMC Systems

Designed specifically for integration with Furuno 10-Pin MMC systems, the Airmar B175C-20-MW guarantees straightforward installation and reliable communication between devices. This compatibility eliminates guesswork and additional adapters, simplifying setup and maintenance for users. The Furuno interface enhances the transducer’s capability to transmit precise sonar data to displays, ensuring seamless operation within existing marine electronics networks. Its plug-and-play design supports quick replacement or upgrade, providing users with confidence in both performance and ease of use.

Durable Build for Long-Lasting Marine Use

Built by Airmar with marine-grade materials, the B175C-20-MW transducer is engineered for durability and resistance against harsh saltwater environments. The robust construction protects internal components from corrosion, impact, and vibration, guaranteeing consistent performance over time. Its waterproof design assures reliable operation even in challenging offshore conditions. The ultra-wide transducer face accommodates a broad range of frequencies, making it versatile without compromising toughness. For boaters and professionals who demand dependability, this transducer combines performance with a rugged build to withstand everyday marine use.
