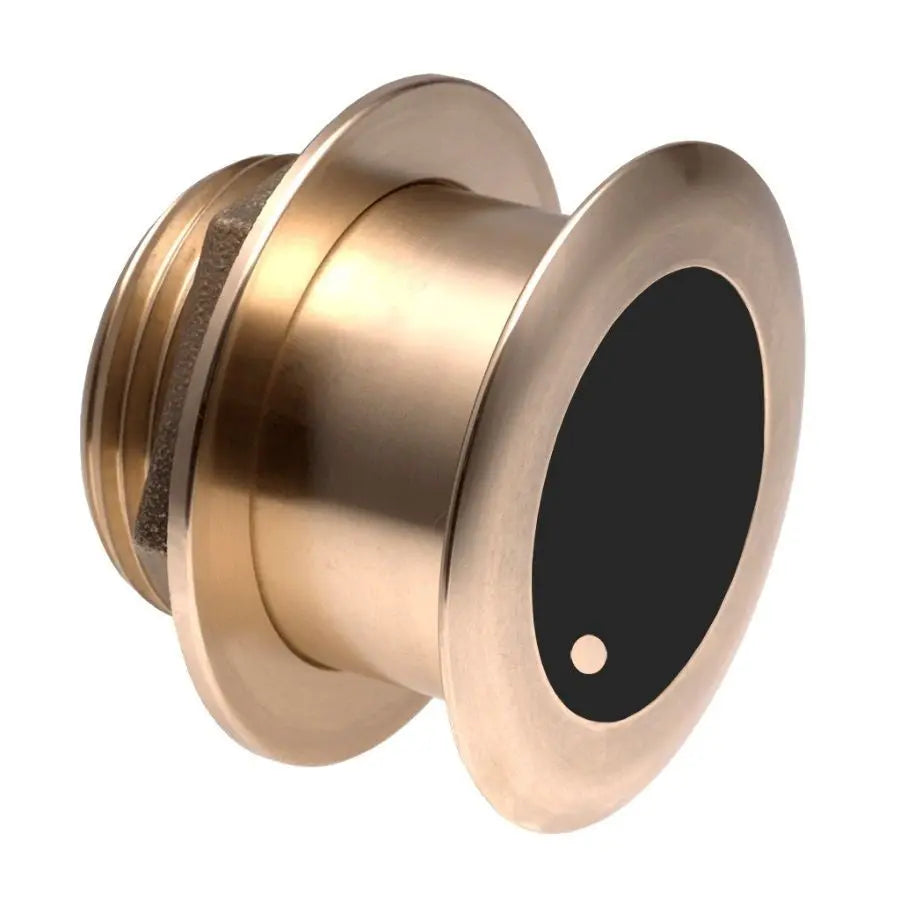

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Furuno 12-Pin MMC

Comprehensive Overview of Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Furuno 12-Pin MMC

Airmar B175MW Medium Ultra-Wide 20 deg Tilted Element Thru-Hull - With Furuno 12-Pin Mix-N-Match Cable

Model: B175C-20-MW-12F

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• B175C-20-MW-MM 20d Tilt Medium CHIRP Ultra Wide
• MMC-12F Furuno 12-Pin Mix-n-Match Cable

Advanced CHIRP Technology for Enhanced Performance

The Airmar B175C-20-MW features advanced CHIRP sonar technology, allowing for clearer and more detailed underwater imaging. This medium CHIRP transducer operates at a 20-degree tilt angle, optimizing coverage and target separation. Its ultra-wide frequency range improves signal resolution and reduces clutter, making it ideal for both commercial and recreational marine applications. Airmar’s precision engineering ensures consistent performance in diverse water conditions, helping users detect fish and bottom structures with greater accuracy.

Compatibility and Integration with Furuno 12-Pin MMC

Designed specifically for seamless integration, the Airmar B175C-20-MW transducer includes a Furuno 12-pin MMC connector, ensuring easy setup with compatible Furuno marine electronics. This compatibility allows for smooth communication between the transducer and sonar systems, streamlining installation and operation. The durable connector enhances signal transmission efficiency while protecting connections from water intrusion and corrosion. This feature provides users with a reliable, plug-and-play sonar experience without the hassle of complicated wiring adaptations.

Durability and Design for Long-Term Marine Use

Built to withstand harsh marine environments, the Airmar B175C-20-MW boasts robust construction with corrosion-resistant materials. Its compact design and tilted face optimize the transducer’s placement on the hull, minimizing drag and turbulence. The housing safeguards the internal components from saltwater damage and physical impacts, prolonging the unit’s lifespan. Whether used on saltwater or freshwater vessels, this Airmar transducer delivers reliable performance, durability, and ease of maintenance, making it a trusted choice for demanding marine applications.
