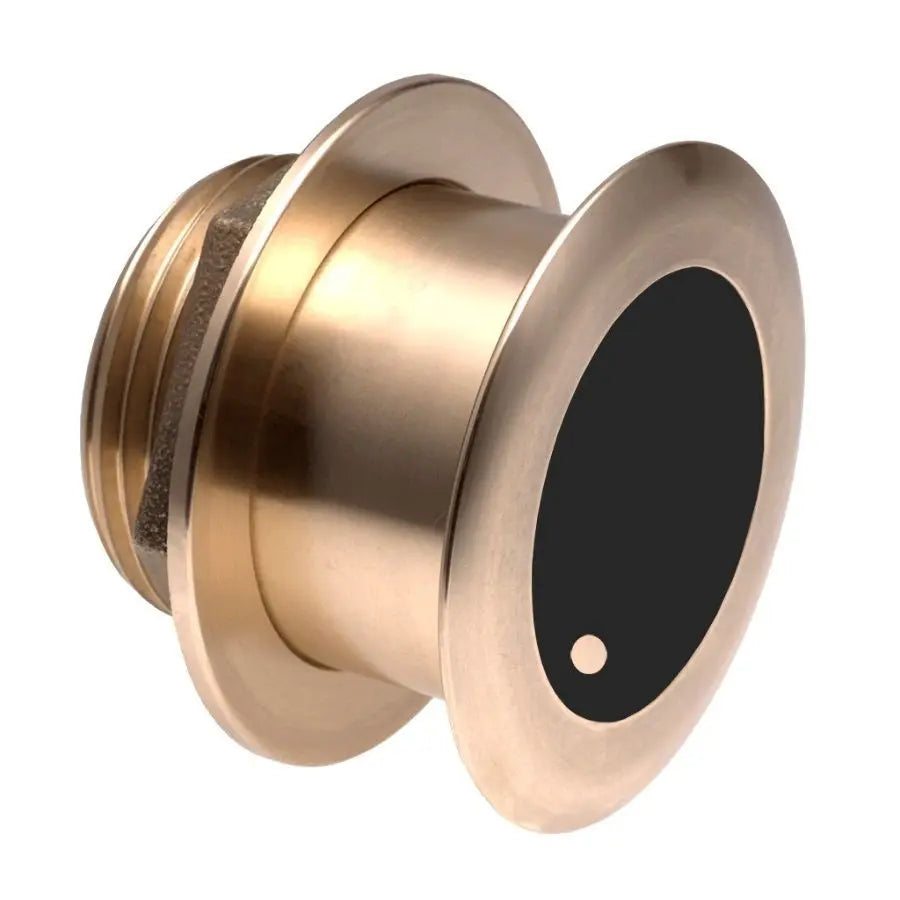

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Garmin 12-Pin MMC

Airmar B175C-20-MW: Advanced CHIRP Ultra Wide Sonar with Garmin 12-Pin MMC

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Garmin 12-Pin MMC

Airmar B175MW Medium Ultra-Wide 20 deg Tilted Element Thru-Hull - With Garmin 12-Pin Mix-N-Match Cable

Model: B175C-20-MW-12G

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Specifications

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match

What's in the Box:

• B175C-20-MW-MM 20d Tilt Medium CHIRP Ultra Wide
• MMC-12G Garmin 12-Pin Mix-n-Match Cable

Superior Airmar Technology for Accurate Underwater Imaging

The Airmar B175C-20-MW transducer integrates advanced medium CHIRP technology, providing clear and precise underwater imaging. Its 20-degree tilt and ultra-wide beam allow for a broader sonar coverage area, enhancing fish detection and bottom tracking. Designed to work seamlessly with Garmin 12-pin MMC connectors, it delivers reliable performance for recreational and professional marine applications. Whether you're navigating shallow or deep waters, this Airmar device ensures accurate and detailed sonar feedback, making it an essential tool for any serious angler or boat operator.

Optimized Design for Enhanced Connectivity and Durability

Built by Airmar, the B175C-20-MW features a sturdy, durable housing designed to withstand harsh marine environments. Its compatibility with Garmin's 12-pin MMC connections facilitates easy installation and integration with a wide range of Garmin chartplotters and fishfinders. The medium CHIRP signal reduces noise and interference, providing a more stable sonar image. Additionally, the 20-degree tilt allows for precise sonar beam alignment, optimizing target separation and bottom clarity for a consistent and high-quality sonar reading in various water conditions.

Versatile Features for Improved Marine Navigation and Fishing

This Airmar transducer is engineered to offer versatility in both recreational and commercial marine operations. Its ultra-wide beam angle covers extensive underwater terrain, which is excellent for locating schools of fish and analyzing bottom composition. The medium CHIRP technology combined with the Garmin 12-pin MMC plug supports multiple frequencies, enabling users to switch effortlessly for optimal sonar performance. With quick and straightforward connectivity, the B175C-20-MW enhances your marine electronics setup, ensuring you stay ahead in navigation and fishfinding efficiency.
