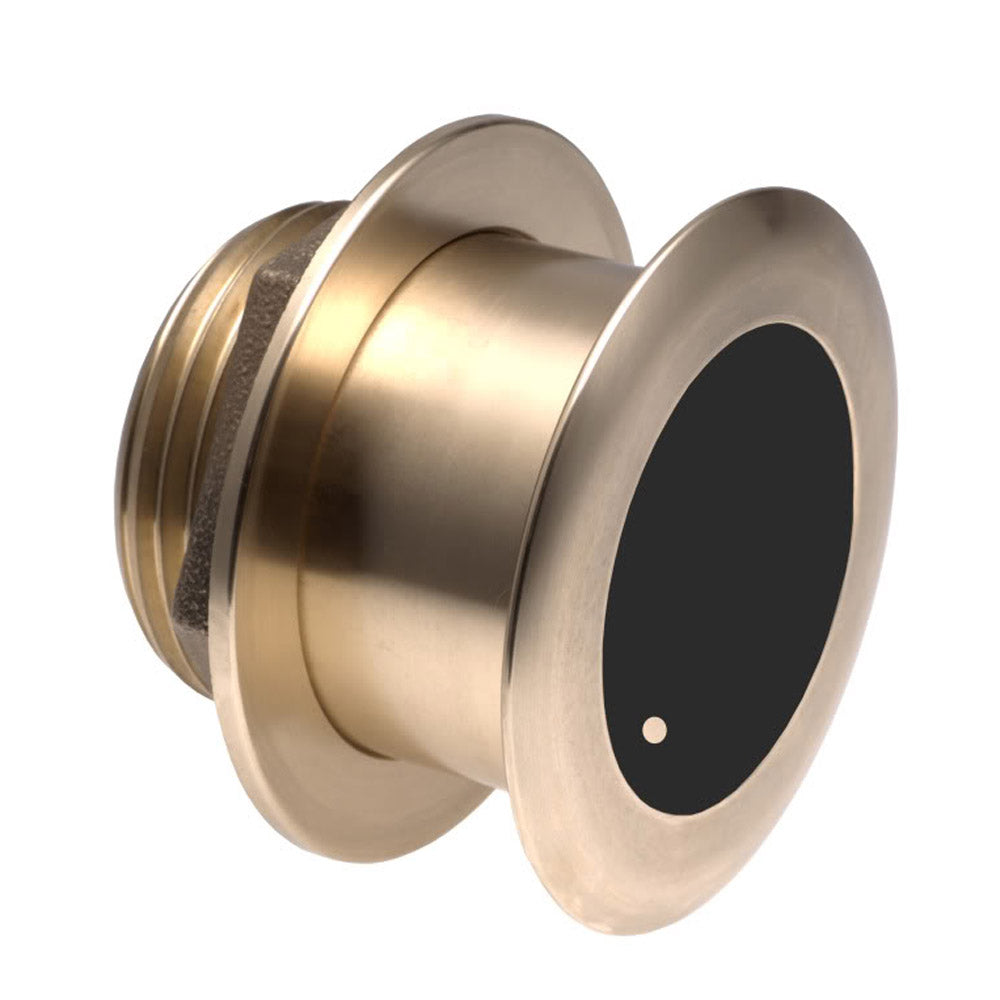

Airmar B175H Bronze Thru-Hull Transducer with 12° Tilt, 1kW Power and 8-Pin Connector

Airmar B175H Bronze Thru Hull with 12 Tilt 8 Pin Connector

Airmars low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.

Tilted Element transducers have the element fixed at a 20, 12, or 0 angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hulls deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features

• Fixed 12 tilted version for 8 to 15 hull deadrise angles
• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 304 m (1000)
• High frequency: 130 to 210 kHz
• 10 to 6 beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• Low-profile, thru-hull housing yields good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID technology

Specifications

• Power Rating: 1 kW
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36)
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4), Metal hull 105 mm (4-1/8)
• Usable Shaft Length: 71 mm (2.80)
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• High Frequency: 130-210 kHz
• High Frequency Beamwidth: 15-9
• Max Deadrise: Up to 24
• Max Depth: 304 m (1000)
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Airmar B175H Bronze Thru-Hull Transducer is designed for small boats such as center consoles, providing high-resolution fish finding and depth measurement capabilities. This Chirp-ready transducer operates across a high-frequency band of 130 to 210 kHz, delivering exceptional target separation and detailed bottom imaging in shallow waters. Its low-profile, bronze housing allows for seamless integration with fiberglass or wood hulls, making it ideal for vessels up to 36 feet long. The transducer's fixed 12-degree tilt corrects for hull deadrise, ensuring the ceramic element is optimally oriented for maximum echo return and accurate readings. Its rugged construction and advanced technology make it suitable for a variety of recreational and fishing applications, especially where precision and performance are paramount. With up to 80 kHz of total bandwidth, the B175H offers superior shallow-water performance, enabling anglers and boaters to identify fish-holding structures with confidence. This model also features depth and water-temperature sensing, providing vital data for navigation and fishing strategies. The transducer's high power rating of 1 kW allows for deep penetration up to 1000 feet, ensuring reliable operation across diverse marine environments. Its Urethane acoustic window protects the internal components while maintaining acoustic transparency for clear signal transmission. Easy to install with a hole size of approximately 3-3/4 inches in fiberglass or wood hulls, the B175H is suitable for boats with a maximum deadrise angle of 24 degrees, making it versatile across various hull types. The unit weighs just 6 pounds and is designed for vessels with a maximum length of 36 feet, providing a robust yet unobtrusive solution for serious anglers and recreational boaters alike. For detailed installation instructions, refer to the owner’s manual available online.

Features:

• Fixed 12-degree tilt for optimal performance across 8 to 15-degree hull deadrise angles

• Transmits across 130 to 210 kHz for high-resolution shallow-water imaging

• Up to 80 kHz of total bandwidth in a single transducer for versatile operation

• Depth and water-temperature sensing for comprehensive data collection

• Power rating of 1 kW with a maximum depth of 1000 feet

• Low-profile bronze thru-hull housing suitable for fiberglass or wood hulls

• Designed for vessels up to 36 feet long with a maximum deadrise of 24 degrees

• Acoustic window made of Urethane for durability and signal clarity

• Patented Xducer ID technology for easy identification and setup
