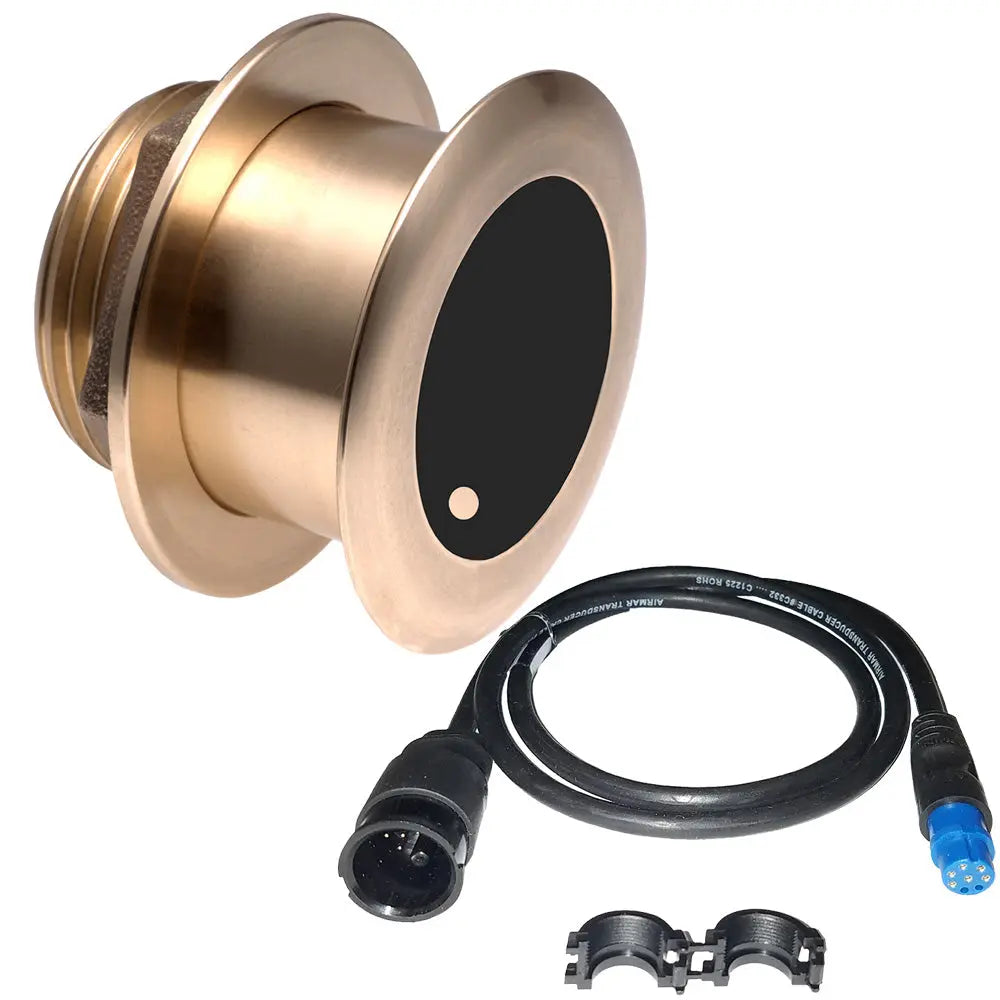

Airmar B175HW Bronze 0 Degree Thru-Hull Transducer for Garmin with 8-Pin Connector

B175HW Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

Get more coverage under your boat with Airmars unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250kHz and has a fixed 25 beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152m (500).

Tilted Element transducers have the element fixed at either a 20, 12, or 0 angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hulls deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

• Garmin 8-Pin Mix Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz
• Constant 25 beamwidth
• Maximum depth of 152 m (500)
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in fiberglass or wood hull
• Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts
• Patented Xducer ID technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle:24
• Housing:Bronze
• Functions:Depth, Temperature
• Hull Material:Fiberglass or wood
• Max Vessel LOA:Up to 11 m (36)
• Hole Size:95 mm (3-3/4)
• Usable Shaft Length:71 mm (2.80)
• Mounting Style:Tilted Element Thru-Hull
• Acoustic Window:Urethane
• Common Use:Fishing
• High Frequency:150-250 kHz
• High-Wide Beamwidth:25
• Max Deadrise:Up to 24
• Max Depth:150 m (500)
• Retractable housing:No
• Single or Dual Frequency:CHIRP-Ready Single-Band
• Tilted Element:Yes
• Weight: 2.7 kg (6 lbs.)

The Airmar B175HW Bronze 0 Degree Thru-Hull Transducer is designed to enhance your fishing and navigation experience by providing high-resolution sonar imaging and reliable depth measurement. With a power rating of 1 kW, this transducer delivers precise readings up to 500 feet deep, making it suitable for both inshore and pelagic fishing. Its wide-beam, high-frequency Chirp technology operates across a frequency range of 150 to 250 kHz, offering superior shallow-water performance, detailed bottom imaging, and excellent fish-target separation. This broad coverage increases your ability to detect fish in the upper water column and observe clear fish arches on your display for more successful fishing trips.

Features:

• Garmin 8-Pin match cable for seamless integration with Chirp-compatible Garmin units

• Depth measurement and fast-response water-temperature sensing for real-time data

• High-frequency range of 150 to 250 kHz with a fixed 25-degree beamwidth for maximum coverage

• Maximum depth capacity of 152 meters (500 feet), ideal for various fishing environments

• Low-profile, thru-hull bronze housing designed for fiberglass or wood hulls, ensuring durability and performance

• Tilted Element design with fixed angles of 0, 12, or 20 degrees to accommodate hull deadrise and optimize echo returns

• Patented Xducer ID technology for easy transducer identification and setup

• Compatible with stepped, planing, or displacement hulls, providing versatile installation options

• Includes a Garmin 8-pin mix-and-match cable for easy wiring and compatibility

• Constructed from corrosion-resistant bronze, suitable for marine environments
